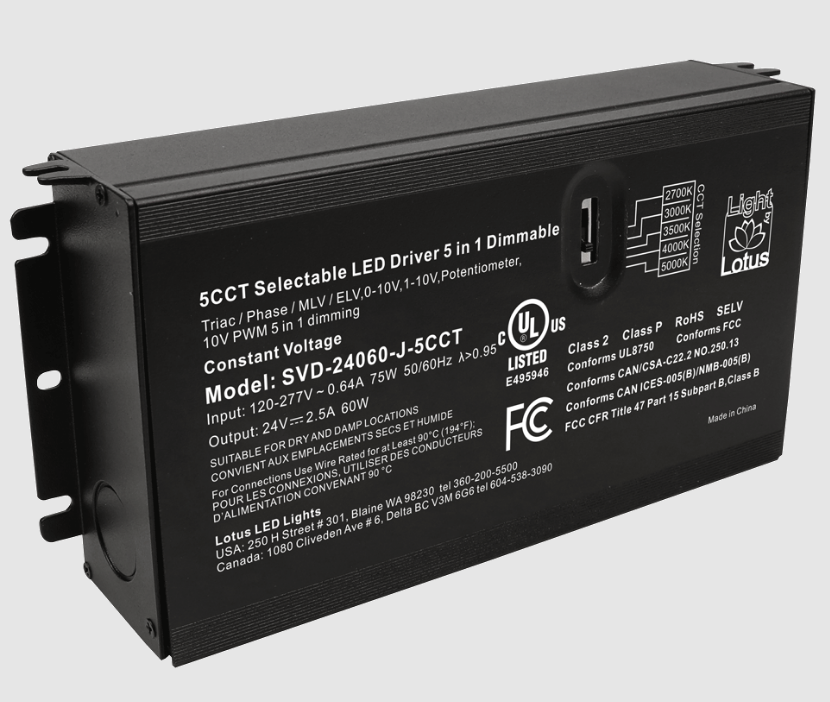

Lotus LED Lights SVD-24060-J-5CCT 5CCT Selectable 24V 60W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet Class 2

Lotus LED Lights SVD-24060-J-5CCT

SVD-24060-J-5CCT Product Description

The SVD-24060-J-5CCT is a 24V DC, 60W constant voltage LED driver designed for 5CCT tunable white LED tape applications. It features an integrated 5CCT selector that supports color temperatures from 2700K to 5000K and offers 5-in-1 dimming compatibility, including TRIAC, ELV, MLV, 0-10V, 1-10V, potentiometer, and 10V PWM controls. Built with active power factor correction (PFC) and PWM technology, the driver delivers smooth, flicker-free dimming with excellent compatibility across most dimmers. The Class 2 rated driver includes built-in wiring compartments, multiple knockouts for easy installation, and comprehensive protection against short circuits, over-voltage, over-temperature, and overload. Suitable for dry, damp, and wet locations, it is specifically designed for use with Lotus 5CCT tunable white LED tape.

Specifications:

SKU: SVD-24060-J-5CCT
Brand: Lotus LED Lights
Applications: Tunable White LED Tape
CCT Options: 2700K / 3000K / 3500K / 4000K / 5000K
Power: 60W
Input Voltage: 120–277V AC
Output Voltage: 24V DC
Output Current: 2.5A
Driver Type: Constant Voltage Electronic LED Driver
Dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, Potentiometer, 10V PWM (5-in-1)
Load Range: 6W–60W
THD: <10% at full load
Power Factor: >0.95 at full load
Efficiency: 86% @120V / 87% @277V (full load)
Standby Power: <0.5W
Inrush Current: 30.4A @120V (116µs), 72.8A @277V (152µs)
Leakage Current: <0.5mA
PWM Frequency: 16kHz
Protection: Short Circuit, Over-Voltage, Over-Temperature, Overload
Approved Location: Dry, Damp & Wet Locations
Operating Temperature: -40°F to +122°F (-40°C to +50°C)
Wiring Volume: 5 cu in per chamber
Dimensions: 7.25 × 3.13 × 1.58 in (185 × 80 × 40 mm)
Net Weight: 1.3 lb (0.6 kg)
Warranty: 5 Years
Safety Standards: cULus Listed UL8750, CAN/CSA-C22.2 No. 250.13
Certifications: Class 2, Class P, FCC Part 15 Subpart B
Compatible LED Tape: Lotus LBL-COB-TW5CCT-IP20
Installation Features: Built-in wiring compartments with multiple knockouts for easy wiring
