Elco Lighting EL48FICDXA 4" 0-10V New Construction 2-Hour Fire Rated Housing, Voltage 120/277V, Wattage 14W

ELCO Lighting EL48FICDXA

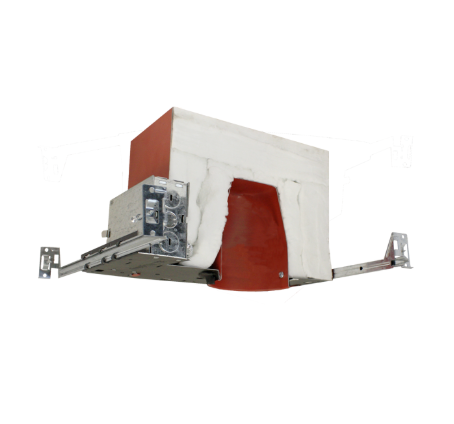

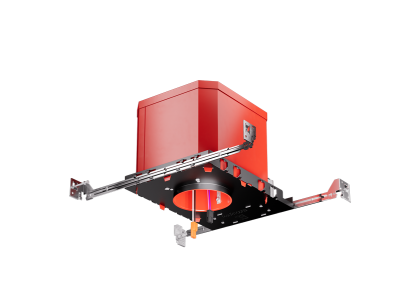

EL48FICDXA Product Description

4″ Fire rated new construction LED housing. Compatible with 4″ 0-10V LED Inserts. 2-hour fire rated.

Features:

Wired for 0-10V Dimming
Single wall IC Airtight rated for Direct Contact with
Insulation
120/277V Input
Meets restricted air flow requirements (per ASTM E-283)
cUL Listed for direct contact with Insulation
cUL Listed for Damp Locations
cUL Listed for Wet Location with Wet Location Rated
Inserts
cUL Listed for Feed Through
CA Title 24 Compliant
Sound Rated
NOTE: Access above the ceiling required for EM

Specifications:

Wattage 14W
Voltage 120/277V
Wet Location Listed
Damp Location Listed

Technical Details:

Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.

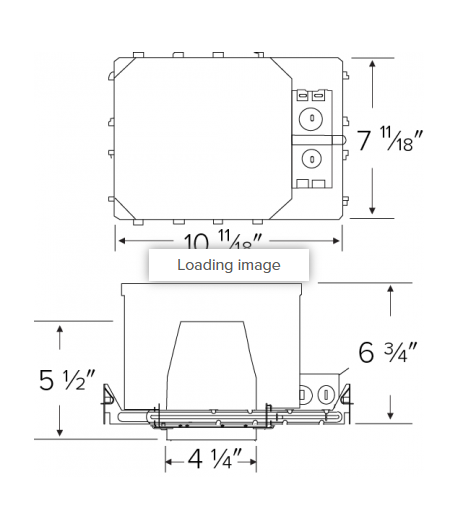

Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that double wall housings require Access From Above Ceiling for Battery Maintenance.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Listings: cUL Listed for Damp Location and for Wet Location with select trims. cUL Listed for Direct Contact with Insulation and Combustible Material. cUL Listed for Feed Through.
