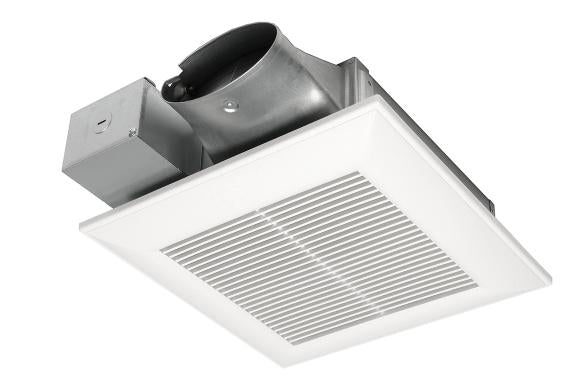

Panasonic WhisperValue 50/80/100 CFM DC Fan with Condensation Sensor FV-0510VSC1

2 sold in last 8 hours
Panasonic

FV-0510VSC1

$150.00 $128.00
$128.00
customers are viewing this product

WhisperValue® DC™ Fan with pre-installed condensation sensor helps control bathroom condensation to prevent mold and mildew. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow™ speed selector switch to customize airflow (50-80-100 CFM).

KEY FEATURES:

Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80 or 100 CFM)
Optional built-in Multi-Speed Control for ASHRAE 62.2 compliance
Built-in condensation sensor to control bathroom moisture
Low profile 3-3/8” depth fits virtually anywhere, including 2x4 construction

    SPECIFICATIONS:

    Air Volume Exhaust (CFM) 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP
    Master Carton Dimensions (HxWxD) 6.89 x 14.25 x 16.73
    CFM 50-70. 80-110
    Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
    Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
    Current (Amps) 50 CFM= .08A, 80 CFM= .13A, 100 CFM= .18A
    Ventilation Design Approach Continuous Ventilation. Spot Ventilation
    Duct Diameter 4" Oval
    Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
    ENERGY STAR® Certified Yes
    Fan Type Fan Only
    Grille Size (in sq.) 13"
    Industry Residential. Light Commercial
    Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
    Motor Type (AC/DC) ECM
    Mounting Opening (in sq.) 10-1/2"
    Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
    Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
    Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
    Power Rating (V/Hz) 120/60
    Product Family Name WhisperValue DC
    Radiation Damper Available Yes
    UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
    Warranty 6 year DC Motor, 3 Year Parts
    Master Carton Gross Weight (lbs.) 9.0
