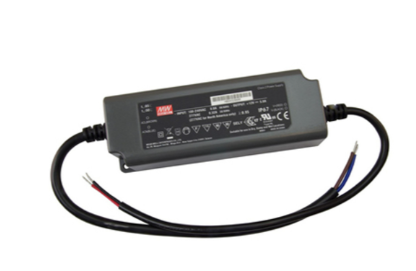

Diode LED DI-CV-MW12V40W-277 40 Watt Commercial Grade Constant Voltage Driver 12V DC

Diode LED DI-CV-MW12V40W-277

DI-CV-MW12V40W-277 Product Description

Constant Voltage LED Drivers are the driver of choice to pair with 120V switches, low voltage REIGN Dimmers, and RGB/DMX Controls. This hard-wired LED power supply is available in multiple form factors and voltage/wattage combinations to meet your low-voltage LED lighting needs.
Compatibility Note: Only specific models may be paired with REIGN® Dimmers and RGB/DMX Controls.

Features:

Input Voltage: 120 ~ 277VAC, 50/60Hz
Dimmable: Yes, with compatible PWM dimmer/controls
Ambient Temp: 40 ~ +185°F
Operating Temp: 40 ~ +185°F
Environment: IP67 outdoor/wet location when installed in wet location J-Box. Lo-Pro J-Box & Driver Combo is suitable for indoor/dry locations.
Working Humidity: 20 ~ 95% RH non-condensing
Housing / Cooling: Plastic housing/cooling by free air convection
UL Recognized Component: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP67 approved; Design refer to EN60335-1. CE Certified.
Power / Max Load: 40W / 3.3A
Output Full Load: 12VDC
Class 2: Yes
Minimum Load: None
Input Current Full Load: 0.6A@115VAC, 0.3A@230VAC, 0.25A@277VAC
Primary Leads: SJTW 18/2AWG, AC/L (Brown), AC/N (Blue
Secondary Leads: SVT 18/2AWG, V+(Red), V-(Black)
Voltage Boost: No
Circuit Breakers: Auto Reset Hiccup
Efficiency / PF Full Load: 86% / PF: ≥0.97@115VAC, ≥0.95@230VAC, ≥0.92@277VAC
THD Full Load: 5%@115VAC, 10%@230VAC, 16%@277VAC
Dimensions: Length = 5.9", Width = 2.1", Height = 1.4"
Warranty: 5 Year
