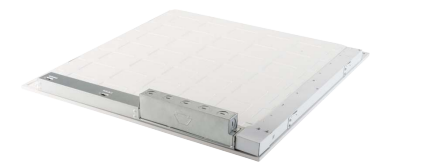

Keystone KT-BPLED35PS-22C-8CSA-VDIM-EM8 2x2 LED Panel with Inegrated 8W EM, Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Includes add-on J-box

Keystone KT-BPLED35PS-22C-8CSA-VDIM-EM8

KT-BPLED35PS-22C-8CSA-VDIM-EM8 Product Description

Keystone KT-BPLED35PS-22C-8CSA-VDIM-EM8 2x2 LED Panel with Inegrated 8W EM, Power Select & Color Select. 35/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Includes add-on J-box

Features:

• Features Keystone Color Select technology. Adjust CCT between 3500/4000/5000K
• Features Keystone Power Select technology. (see Performance Specifications for
details)
• Extruded aluminum frame with precision laser welded corners and satin white
powder coating
• Suitable for recessed or surface mount (with optional accessories)
• Construction features precise optical lenses over each individual LED, offering optimal
light diffusion and consistent surface illumination, with no risk of yellowing over
product lifetime
• UL Certified for Dry/Damp locations
• Powered by Keystone 0-10V dimmable LED driver with built-in junction box
• LED chip lifetime: L70 >100,000 hours @
25°C/77°F ambient fixture temperature
• Over 50% energy savings compared to
traditional fluorescent troffers
• Operating temp range -20°C/-4°F to 40°C/104°F
• IC Rated
• Complete, pre-wired emergency panel
solution—including test button
• Built-in 8W LED Keystone SmartSafe
Emergency Driver compliant with CEC T20
• Included expanded J-box for easy wiring

Specifications:

Brand:    Keystone
Manufacturer Part Number:    KT-BPLED35PS-22C-8CSA-VDIM-EM8
Normal Size:2'x2'
Wattage:30W
CCT:3500k/4000k/5000k
Lumens:3450lm/3700lm3500lm
Efficacy:115 lm/W /123 lm/W /117lm/W
Input Voltage:120-277V
Dimmable:0-10V
CRI>80
