American Lighting DL4S-DMX-RGBTW-LED-WH
DL4S-DMX-RGBTW-LED-WH Product Description

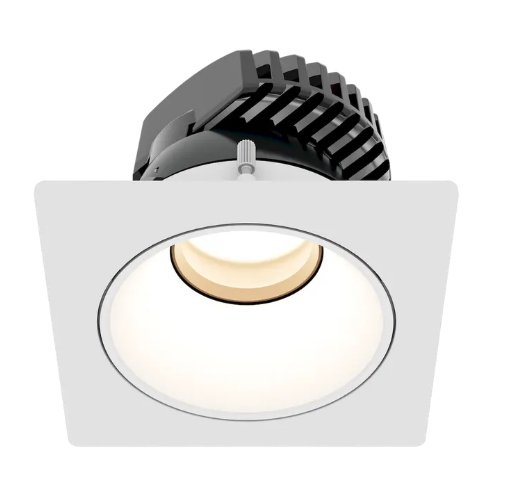

This 4-inch square trim LED kit offers a versatile and high-performance lighting solution for modern architectural and commercial spaces. Equipped with an adjustable COB LED module and DMX/RDM control, it provides dynamic RGB color mixing along with tunable white light ranging from 2700K to 6000K. With a power consumption of 15W and output of over 1000 lumens at a 25° beam angle, it delivers bright, efficient, and precise illumination.
The kit includes both square trim and trimless mud rings for flexible installation in various ceiling designs. It comes with flat and cut-cone reflectors in white and warm haze finishes to customize light distribution and visual effect. Additionally, field-adjustable optic film accessories allow 45° and 60° beam angle adjustments, offering precise control over light spread and ambiance.
Specifications:
SKU: DL4S-DMX-RGBTW-LED-WH
Brand: American Lighting
Product Type: Square Trim LED Kit with Adjustable COB Module
Aperture Size: 4-inch
Power Consumption: 15W
Luminous Output: 1000+ lumens (25° beam angle)
Control Protocol: DMX/RDM
Light Source: COB LED (Chip-on-Board)
Color Output: RGB + Tunable White (2700K–6000K)
Beam Angle: 25° standard; 45° & 60° with field-adjustable optic film
Optics: Field-adjustable optic film accessories included
Trim Type: Square trim & trimless mud ring included
Reflector Options: Flat and cut-cone reflectors
Reflector Finish: White & Warm Haze
Adjustability: Adjustable LED module for directional lighting
Input Voltage: Compatible with remote driver systems (typically 120–277V AC)
Installation: Recessed ceiling mount
Application: Architectural, retail, hospitality, and commercial lighting
Operating Temperature: -20°C to +40°C
Construction: Durable housing and optical components for long-term performance
