Siemens Meter Centers vs Meter Mains vs Meter Stacks

Key Takeaways

• Siemens meter mains combine a utility meter socket and main disconnect for a single independently metered residential or light-commercial service.
• Siemens meter centers distribute one incoming service to multiple separately metered tenants, reducing repetitive line-side wiring and improving meter density.
• Siemens Power Mod meter stacks are modular group-metering sections connected to a common bus for scalable multifamily and multi-tenant distribution.

Meter mains, meter centers, and meter stacks all sit near the service entrance and utility metering point, but they solve different electrical distribution problems. They are often discussed as though they are three versions of the same product category, which can lead to incomplete specifications and poor design decisions. A meter main generally combines a utility meter socket and a principal disconnect for one independently metered service. A meter center groups multiple metered services around a common incoming distribution arrangement. A meter stack is typically a modular section within a larger group-metering system, where multiple stacks, main service modules, tap sections, and related components form a complete service lineup.

For engineers, contractors, distributors, estimators, and owners, meter count alone is not enough to determine which architecture is appropriate. Service voltage, available fault current, tenant feeder ratings, common-bus capacity, bypass requirements, utility standards, service-disconnect strategy, conductor routing, wall space, working clearance, future expansion, and downstream distribution all influence the final selection. Siemens addresses these needs through several equipment families, including meter combinations for individual services and Power Mod modular metering for larger group-metering applications. The right approach is therefore to begin with the electrical architecture and then select the equipment family that supports it.

Understanding the Equipment Categories

Meter Mains

A meter main combines the utility meter socket and a principal disconnecting means in one factory-built assembly. Utility conductors enter the equipment, the service passes through the meter, and the load side of the meter feeds a main breaker or other service disconnect. From that point, the service can feed a downstream panelboard, distribution panel, or load center. In some products, branch distribution is built into the same enclosure, creating a meter-load-center combination rather than a simple meter main.

The major advantage is integration. The meter socket, service disconnect, enclosure, and internal conductors or bus are factory coordinated, which reduces field interconnection and usually simplifies wall layout. Siemens offers meter-combination equipment across common residential and light-commercial service ranges, including equipment in the 100 A through 400 A classes. Professionals should still evaluate the individual ratings within each assembly, since a nominal 400 A class product may incorporate a 320 A continuous meter socket and multiple 200 A distribution devices rather than one continuously loaded 400 A breaker.

Meter Centers

A meter center is a group-metering arrangement in which several independently metered customer services are supplied from a common incoming service or common distribution structure. Rather than bringing separate line-side utility conductors to every tenant meter, the incoming service is distributed internally to multiple meter sockets. Each position then feeds an individual disconnect or breaker and an outgoing tenant feeder. This centralizes the service entrance and can dramatically reduce repetitive line-side wiring in multifamily and multi-tenant buildings.

Terminology varies in the field. Some contractors use "meter center" for any multi-position meter bank, while others reserve the term for integrated equipment and refer to large modular lineups as meter stacks. For engineering purposes, the better distinction is between the complete group-metering system and the components within it. A Siemens modular metering installation can include a main service section, multiple residential or commercial meter stacks, pull or tap sections, house-power modules, spacers, and related accessories. Those parts collectively form the meter center or group-metering lineup.

Meter Stacks

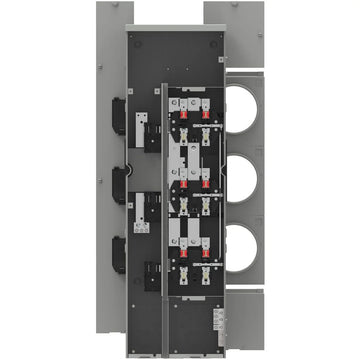

A meter stack is a modular section containing multiple meter positions, usually arranged vertically within a defined enclosure width. Each position generally incorporates a meter socket and provisions for a tenant disconnect or circuit breaker. The stack connects to a common horizontal distribution bus running through the modular lineup. In most applications, the stack does not function as the complete service equipment by itself. It is a repeatable building block within a larger metering system.

Siemens Power Mod is a clear example of this architecture. The system is built from main service modules, residential and commercial meter stacks, tap boxes, house-power modules, and related modular equipment. Siemens documentation for the platform identifies a 1200 A continuous aluminum cross-bus in the referenced architecture. That rating applies to the common distribution structure, not to every tenant position. Individual meter sockets, tenant breakers, and outgoing feeders have their own ratings and must be coordinated independently.

How the Electrical Architecture Differs

Power Flow Through a Meter Main

The power path through a meter main is relatively direct. Utility conductors enter the assembly, pass through the revenue meter, continue to the main protective device, and then leave for customer distribution. If the enclosure includes branch-circuit spaces, distribution can continue within the same assembly. Because only one independently metered service is involved, there is generally no need for a long through-bus serving multiple tenant positions.

This simplicity reduces the number of electrical interfaces that need to be coordinated. The engineer still has to verify meter-socket rating, breaker rating, fault-current capability, conductor ampacity, grounding and bonding, and downstream panel capacity, but there is no multi-section bus system. That makes a meter main particularly attractive for individual residential and commercial services where group metering would introduce complexity without adding meaningful value.

Power Flow Through a Meter Center

A meter center introduces a common distribution stage. The incoming service terminates in a main section or common termination area and then feeds several meter positions. Each meter position serves an individual customer or tenant and typically includes a dedicated overcurrent device. The system therefore has to accommodate the aggregate building demand while simultaneously supporting the individual service requirements of each occupant.

This changes how ampacity is evaluated. A building may have a 1000 A common service while individual tenant feeders are rated 100 A, 125 A, 150 A, or 200 A. Those tenant breaker ratings are not simply added together to size the service because appropriate demand calculations apply. At the same time, each tenant position still has to support its own connected load and withstand the available fault current at that point in the system.

Power Flow Through Modular Meter Stacks

In a modular stack system, power enters through the main service section and is distributed along a common cross-bus. Each meter stack connects to that bus through a manufacturer-engineered interface. Internal stack conductors or bus then feed the individual meter positions. From each meter socket, current passes through the tenant breaker or disconnect and into the tenant feeder.

This creates a layered rating structure that must be evaluated as a complete system. The service conductors, main protective device, cross-bus, stack distribution, meter socket, tenant breaker, and outgoing feeder each have their own electrical limitations. A meter-stack lineup therefore requires more coordination than a simple meter main, but it also enables much higher meter density and more efficient distribution of a large common service.

Service Equipment and Disconnect Strategy

Defining the Service Boundary

The physical location of the meter does not by itself determine where the service ends and the feeder system begins. The designer must establish where the service disconnecting means is located, where the grounded conductor is bonded, where the grounding electrode conductor terminates, and where downstream neutral isolation begins. Those decisions affect conductor classification, grounding, bonding, overcurrent protection, and fault-current exposure.

In a meter-main assembly, the service boundary is usually straightforward because the main disconnect is located directly adjacent to the meter socket. In a modular group-metering system, the main service disconnect may be located in a dedicated service section feeding the meter stacks through the common bus. The internal relationship between these compartments has to be understood from the equipment listing and manufacturer documentation rather than inferred from the physical appearance of the lineup.

Main Breakers and Fusible Mains

Main circuit breakers are commonly used because they combine overcurrent protection and switching in one device. Fusible mains can be attractive where high interrupting capacity, specific coordination characteristics, or utility preferences make them advantageous. Some systems can use main-lug or tap arrangements where permitted by the listing and applicable code requirements.

The choice of main device influences the entire downstream system. It affects fault-current coordination, series-rating possibilities, conductor termination, maintenance, replacement strategy, and service capacity. On large group-metering projects, the main module should therefore be selected as part of the overall service design rather than as an accessory added after the meter stacks are chosen.

Siemens Meter Mains and Meter Combinations

Where Meter Combinations Fit Best

Meter combinations are strongest where one utility meter serves one customer. Typical applications include single-family dwellings, detached buildings, stand-alone commercial services, workshops, agricultural structures, and individually serviced tenant spaces. Combining the meter socket and disconnect reduces equipment count and can simplify the service entrance by eliminating the need to field-connect separate metering and disconnect enclosures.

Modern residential services can still be technically demanding. Large HVAC systems, electric cooking, electric water heating, pools, workshops, EV charging, photovoltaic systems, and battery storage all affect service sizing and equipment configuration. Siemens has developed newer meter-combination products around these changing load profiles, which reflects the growing importance of service entrances as connection points for both loads and distributed energy resources.

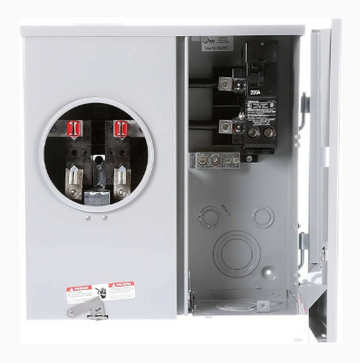

For a product-specific example, the Siemens MM0202B1200 200-Amp 2-Space 2-Circuit Surface Mount Ring Type Meter Main provides a compact meter-main solution for a single 120/240V, single-phase service. Its factory-installed 200A main breaker, ring-type meter configuration, and overhead/underground feed capability illustrate the type of integrated equipment that can simplify an individual residential or light-commercial service entrance.

Understanding the 400 A Residential Class

The phrase "400 amp residential service" often creates confusion because the equipment may not contain one 400 A continuously rated meter socket and one 400 A branch-distribution breaker. Many residential services in this class use a 320 A continuous socket and multiple 200 A disconnecting devices. The meter socket, enclosure, breakers, and load-side connections all have to be evaluated according to their listed ratings.

This is why equipment schedules should identify the intended architecture rather than relying on a shorthand ampere value. A useful specification distinguishes socket rating, main-device arrangement, short-circuit rating, bypass type, service-entry direction, branch capacity, and utility requirements. The same discipline applies to every equipment class, but it becomes particularly important in larger residential services where several different ratings can coexist within one enclosure.

Compact Multi-Position Metering

The Role of Integrated Meter Centers

There is an important application range between individual meter mains and large modular stack systems. A duplex, four-unit building, small apartment property, or small multi-tenant commercial building may need centralized metering without requiring the complexity of a long modular lineup. Integrated multi-position equipment can combine a common incoming section, multiple sockets, and tenant disconnect provisions in a relatively compact enclosure.

The efficiency comes from reducing repetition. Instead of mounting several individual meter mains and routing service conductors to each one, the contractor installs one centralized assembly and terminates one incoming service. Factory-installed internal bussing handles much of the line-side distribution. This can reduce conductor length, raceway count, wall space, and installation labor, although it also reduces flexibility if the tenant count or service requirements change later.

When Integrated Equipment Becomes Limiting

Meter count alone does not determine when compact equipment is no longer appropriate. A project with only a few meters may still need modular equipment if the service is large, tenant ratings vary significantly, future phases are planned, house-power provisions are required, or utility metering requirements are unusual. Conductor entry and available fault current can also move the project toward a more flexible modular architecture.

The opposite is also true. Using a fully modular meter-stack system for a small fixed installation can introduce unnecessary interfaces and additional planning. The preferred architecture is usually the simplest system that meets the present electrical requirements while preserving any genuinely needed future capacity.

Siemens Power Mod Architecture

System-Level Design

Power Mod should be viewed as a complete distribution platform rather than as a collection of meter sockets. The lineup can incorporate main service sections, residential meter stacks, commercial meter stacks, house-power modules, pull and tap sections, and related components. Each module performs a specific function within the larger service entrance.

The primary advantage is that the common incoming service and through-bus can be designed once while repeated meter-stack modules serve the individual tenants. This avoids routing large line-side conductors independently to every meter position. The resulting system is denser, more scalable, and generally easier to expand than a bank of separately wired meter mains.

A specific example is the Siemens WMM41125 1-Phase 3-Wire 4-Meter Power Mod Modular Metering System, which provides four meter positions within the Power Mod architecture. The unit uses a 1200A common bus with 125A meter sockets, demonstrating how an individual meter stack functions as one modular section within a larger group-metering lineup rather than as a complete service system by itself.

Cross-Bus Capacity

The referenced Siemens Power Mod architecture uses a 1200 A continuous aluminum cross-bus. That provides enough capacity for substantial multifamily and multi-tenant services, but it still has to be applied based on calculated load. The common bus does not become correctly sized simply because the arithmetic sum of tenant breaker ratings falls below or above 1200 A.

A building with 30 apartments, each protected by a 200 A breaker, has 6000 A of breaker-handle rating if the values are added directly. That number has little relationship to the actual service demand because dwelling-unit diversity is significant. The engineer must calculate the service load using the applicable method and then select the main and bus capacity accordingly. Future electrification should also be considered because changing appliance and EV loads can reduce the margin available in older design assumptions.

Modular Installation Features

Siemens developed Power Mod around modular installation, with features intended to simplify bus connections, mounting, torque verification, and phasing. These features become more valuable as the number of sections increases because field labor is repeated across the lineup.

The labor savings do not eliminate the need for careful installation. Sections must be level and properly aligned, bus joints assembled correctly, manufacturer torque requirements followed, and utility-access areas maintained. Modular equipment replaces a large quantity of field-built wiring with factory-engineered interfaces, but those interfaces still have to be installed accurately.

Voltage and Phase Configuration

Single-Phase Systems

A 120/240 V single-phase service is common in residential work and smaller multifamily properties. Tenant services are supplied from the two ungrounded conductors and neutral, and the meter positions are configured around the serving utility's socket requirements. This is electrically simpler than distributing single-phase tenants from a three-phase source because there is no three-phase balancing problem.

Even so, larger single-phase group-metering systems still require careful bus sizing, neutral evaluation, fault-current analysis, and conductor coordination. Large aluminum service conductors can occupy substantial enclosure space, and their bending requirements can influence the choice of top-feed or bottom-feed equipment.

Three-Phase Incoming Systems

Larger multifamily buildings frequently use 120/208Y three-phase, four-wire service. Single-phase tenant feeders can be derived from this system while commercial tenants and common loads may use three-phase power. This arrangement can make efficient use of the utility transformer and common distribution system, but it requires deliberate phase management.

The designer must distinguish between meter stacks intended for single-phase tenants supplied from a three-phase source and meter stacks intended for true three-phase tenant loads. Jaw configuration, internal phasing, meter style, disconnect arrangement, and breaker requirements can differ substantially. A schedule that identifies only voltage and meter count is therefore incomplete.

Phase Balancing

Balancing Tenant Loads

When single-phase tenant services are supplied from a three-phase source, those services should be distributed among the phases so the expected demand is reasonably balanced. Perfect instantaneous balance is unrealistic because apartment loads are constantly changing, but the design should not build in a predictable imbalance.

This becomes more important as apartment electrical loads increase. Electric cooking, heat-pump HVAC, heat-pump water heating, electric dryers, and EV chargers can all increase individual tenant demand. Poor phase assignment can increase conductor loading, voltage imbalance, neutral current, and transformer stress.

Planning the Phase Schedule

If the equipment allows field configuration or flexible phasing, that capability should be incorporated into the design rather than left entirely to the installer. The intended phase sequence can be shown on the electrical drawings or developed during shop drawing review.

Documenting the phase allocation also helps coordinate downstream panel schedules and feeder routing. On a large building, it is much easier to correct an imbalance during design than after dozens of tenant feeders have been installed.

Bus Ampacity and Rating Hierarchy

The Complete Rating Chain

A modular meter center contains several distinct current ratings. These include the utility service rating, main-device rating, horizontal bus rating, internal stack rating, meter socket rating, tenant breaker rating, and tenant feeder ampacity.

The system can be visualized as:

• Utility service conductors
• Main service protective device
• Horizontal cross-bus
• Meter-stack distribution
• Individual meter socket
• Tenant breaker
• Tenant feeder
• Tenant panelboard

Each level must be appropriate for the load it carries. A 1200 A common bus does not make a 200 A meter socket a 1200 A device, and a 200 A tenant breaker does not mean 200 A must be added directly to the building service calculation.

Demand and Diversity

Multifamily buildings often have significant load diversity because tenants do not operate all major appliances simultaneously. Commercial occupancies can behave very differently, particularly where restaurants, salons, offices, medical suites, or retail tenants are involved.

Mixed-use projects therefore require a disciplined load calculation. Residential, commercial, and common-area loads should be evaluated separately and combined according to the applicable code methodology. The result should drive service and bus selection.

Fault Current and Short-Circuit Performance

Available Fault Current

Group-metering equipment is often installed close to the utility transformer, which can produce high available fault current. Transformer size, impedance, conductor length, conductor size, and the number of parallel secondary sets all influence the value.

Tenant breaker size does not determine fault-current exposure. A 100 A breaker located directly downstream of a large transformer may still see tens of thousands of amperes during a bolted fault. Its interrupting rating must therefore be based on source conditions rather than on normal tenant load.

AIC, SCCR, and Series Ratings

Breakers and equipment must have adequate short-circuit capability for the available fault current. A breaker with a 10 kA interrupting rating cannot simply be installed on a system with 22 kA available unless a properly listed series-rated combination or other compliant arrangement applies.

Large metering lineups should be reviewed as complete systems. The main device, common bus, stack construction, and tenant breakers all participate in the short-circuit rating. If series ratings are used, the exact manufacturer-tested combination should be verified.

Utility Metering Requirements

Ring and Ringless Construction

Meter socket style is often dictated by the serving utility. Some utilities require ringless sockets, while others use ring-type equipment with sealing rings. The construction affects both utility access and enclosure design.

This requirement should be confirmed early. A meter stack that is otherwise electrically suitable can still be rejected if the socket style does not meet the utility standard.

Bypass Requirements

Utilities may require bypass capability so meters can be serviced without interrupting the customer's load. Lever bypass, horn bypass, and other methods are used depending on utility practice and service type.

The bypass requirement should appear directly in the equipment schedule. It is not a minor accessory selection because the wrong bypass configuration can prevent utility approval.

Jaw Configuration

Meter jaw arrangement depends on service characteristics and utility metering practices. Single-phase residential sockets commonly use four-jaw arrangements, while five-jaw and other configurations are used when additional reference or neutral connections are needed.

Three-phase services use more complex arrangements. The design documents should therefore identify the required meter configuration rather than leaving the supplier to assume it based only on voltage.

NEC Considerations

Service Disconnecting Means

Service disconnect requirements directly influence whether a meter socket, meter main, or modular service section is appropriate. The adopted NEC edition must be identified because requirements have evolved, particularly for dwelling emergency disconnects.

These provisions can affect exterior equipment selection and service layout. A traditional meter socket feeding an interior main may not satisfy the same requirement as an exterior meter-main combination in jurisdictions applying current emergency-disconnect rules.

Grounding and Bonding

The service equipment establishes the primary grounding and bonding relationship. The grounded conductor is bonded at the appropriate service point, grounding electrode conductors are connected as required, and downstream feeders generally maintain separation between neutral and equipment grounding conductors.

Modular equipment can make this relationship less visually obvious because multiple compartments share one physical lineup. Shop drawings should clearly identify the service section and neutral-bonding arrangement.

Working Space

Group-metering systems can consume significant wall length, which makes NEC working clearance an important architectural issue. Electrical rooms must accommodate equipment depth, door operation, working-space width, headroom, and opposing equipment.

Utilities may also impose meter-height and accessibility requirements. A lineup can fit physically while still failing utility access rules if the upper or lower meter positions fall outside the permitted elevation range.

Physical Layout and Constructability

Wall Space

Individual meter mains are compact on their own but can consume substantial wall area when repeated across many tenants. Centralized meter centers increase meter density by sharing enclosure structure and common line-side distribution.

Modular stacks increase density further, although the full lineup may still be long once main service modules, house sections, tap boxes, spacers, and other components are included. Preliminary equipment elevations should therefore be developed early in design.

Incoming Service Conductors

Large service conductors require adequate bending and termination space. Parallel conductors can make top-feed or bottom-feed decisions critical, especially where utility transformer location constrains the approach.

Lug conductor ranges and temperature ratings should be verified before conductor sizes are finalized. Aluminum conductors are commonly used on large services, but their larger diameter can significantly affect raceway and gutter requirements.

Tenant Feeder Routing

The load side of a meter bank can become highly congested. A 24-position lineup can produce 24 tenant feeders plus house feeders, all leaving a relatively compact section of wall.

The design should establish feeder exit direction and routing early. High-rise applications may favor vertical riser arrangements, while garden-style apartments may route tenant feeders underground or across exterior distribution paths.

Installation Labor

Factory Integration

The strongest labor advantage of group metering is the replacement of repeated field-built line-side distribution with factory-integrated bussing. Instead of routing large service conductors to every meter socket, the contractor installs one common service and connects the modular sections.

The benefit increases with meter count. Large projects can eliminate substantial amounts of conduit, cable pulling, lug termination, and repetitive mounting compared with individual meter-main installations.

Installation Quality

Modular metering still requires disciplined workmanship. Bus connections, alignment, torque, barriers, grounding connections, and utility compartments all need to be installed according to manufacturer requirements.

The equipment should be treated as an engineered distribution lineup rather than as a group of separate boxes. Installation errors at section interfaces can affect the reliability of the common current path.

Application Selection

Individual Services

A meter main is generally the most efficient architecture where one meter serves one customer. It minimizes equipment count and avoids unnecessary common bussing.

Modern individual services should still be planned for future electrification, EV charging, solar, and energy storage. The meter-main equipment should have enough capacity and physical flexibility for foreseeable changes.

Small Multifamily Projects

Small multifamily properties are often good candidates for integrated multi-position meter centers. Centralizing several tenant meters can reduce wall space and eliminate repetitive line-side conductor runs.

The decision should still account for future tenant count, differing service ratings, utility requirements, and expansion. Where significant change is expected, modular equipment may be justified even at a relatively small initial meter count.

Large Multifamily Projects

Large apartment and condominium projects are where modular meter stacks offer the greatest advantage. A common service can feed many independently metered tenants while reducing the amount of large line-side cabling.

The engineer must coordinate bus loading, phase balance, tenant breaker ratings, meter socket requirements, fault-current capability, and physical lineup dimensions. House-power requirements should also be incorporated from the start.

Mixed-Use Buildings

Mixed-use buildings introduce additional complexity because residential and commercial tenants often have different service characteristics. Apartments may use single-phase feeders while restaurants, retail spaces, or other commercial tenants may require three-phase service.

A modular system can sometimes accommodate both, but larger mixed-use projects may be better served by a switchboard-based architecture with separate metering sections. The decision should follow the electrical topology rather than the desire to keep every meter within one product family.

When Meter Stacks Are Not the Best Solution

Large Distribution Systems

Some services become too complex for meter stacks to remain the organizing element of the system. Large commercial feeders, high fault current, generator integration, multiple sources, complex protection, and extensive power monitoring can shift the design toward switchboards or switchgear.

In those projects, utility or tenant metering becomes one subsystem within the broader electrical distribution architecture. This can provide greater flexibility for large feeders and sophisticated protection schemes.

CT Metering

Large services may require current-transformer metering rather than self-contained socket metering. CT systems allow the utility to measure large currents without passing the full service current directly through a socket meter.

Once CT metering becomes necessary, the project may require dedicated CT compartments, cabinets, switchboards, or utility-specific service sections. The standard meter-main versus meter-stack comparison becomes less applicable.

Submetering

Submetering is also fundamentally different from utility revenue metering. A building owner may receive one utility service and then measure tenant usage downstream for billing or allocation.

Systems such as Siemens SEM3 can support branch-circuit metering and energy monitoring, but they do not replace utility revenue meter sockets where separate utility accounts are required.

Professional Selection Workflow

Begin With the Utility

Identify the serving utility and obtain its current service and metering requirements. Confirm voltage, phase, approved socket types, bypass requirements, service-size limits, CT thresholds, sealing requirements, and conductor-entry expectations.

This should happen before detailed equipment selection. Utility requirements can eliminate otherwise suitable configurations.

Calculate the Service Load

Determine total building demand using the applicable code methodology. Separate dwelling, commercial, common-area, mechanical, EV, and future loads where necessary.

Avoid both extremes. Do not size the service by adding breaker handles, and do not rely on overly optimistic diversity assumptions that ignore modern electrification.

Establish Tenant Ratings

Determine the actual required feeder size for each tenant. Residential occupancies may require different service ratings, and commercial tenants may require three-phase power.

These requirements directly influence meter socket, breaker, and stack selection.

Evaluate Fault Current

Obtain available fault-current information early enough to influence equipment selection. Verify main and tenant breaker AIC along with the complete equipment short-circuit rating.

Where high fault current is expected, the solution may require higher-rated breakers, fusible mains, or different distribution architecture.

Confirm Physical Constraints

Verify wall length, working clearance, equipment depth, conductor-entry location, structural interference, and tenant-feeder routing.

A technically correct lineup is unusable if it does not fit the building or cannot accept the required conductors.

Select the Architecture

After the electrical and physical requirements are established, choose the appropriate equipment type.

• Use a meter main for individual services.
• Use an integrated meter center for compact group metering.
• Use modular meter stacks where scalable common-bus architecture is needed.
• Move to switchboard or switchgear-centered distribution when system complexity exceeds the practical range of conventional group metering.
• Specification Considerations

Specify the Complete Electrical Requirement

A professional specification should identify service voltage, phase, wire configuration, service rating, bus rating, number of meter positions, socket configuration, bypass requirement, tenant breaker ratings, enclosure type, short-circuit rating, feed direction, and utility approval.

For modular systems, it should also identify the main service section and auxiliary modules. A description such as "1200 A Siemens meter center" is not enough to establish a buildable system.

Verify the Exact Product

Catalog numbers should be selected only after the architecture is defined. Similar Siemens products can differ in jaw configuration, bypass style, tenant-breaker capacity, feed orientation, enclosure construction, and system voltage.

The final submittal should be checked against current manufacturer literature and the utility's approved equipment list. Product nomenclature is useful, but the technical data sheet remains the authoritative reference.

Common Design Errors

Confusing Ratings

The most common technical mistake is assuming one ampere value applies throughout the equipment. Service rating, bus rating, socket rating, tenant breaker rating, and feeder ampacity are separate.

Each should be identified and checked independently.

Ignoring Utility Standards

A code-compliant meter center can still be rejected by the utility. Socket style, bypass arrangement, jaw configuration, and sealing provisions are all utility-sensitive requirements.

Utility coordination should therefore happen before procurement.

Underestimating Fault Current

Large utility transformers can produce substantial secondary fault current. Small tenant breakers near the service can still be exposed to very high fault levels.

Interrupting ratings should be selected based on available fault current, not tenant load.

Forgetting House Loads

Multifamily buildings have common loads that do not belong on tenant services. Elevators, pumps, corridor lighting, security, fire alarm equipment, and common mechanical systems often require dedicated house distribution.

The meter lineup should account for those loads from the beginning.

Assuming Expansion Is Automatic

Physical space for another stack does not mean electrical capacity exists for another stack. The utility transformer, service conductors, main device, and cross-bus all have to support the additional demand.

Future expansion should reserve both physical space and actual electrical capacity.

Electrification and Future Load Growth

EV Charging

EV charging is becoming one of the most important drivers of multifamily electrical planning. Chargers may be supplied from individual tenant feeders, a central house system, or a managed charging network.

Each architecture affects the meter center differently. Tenant-connected chargers increase individual feeder demand, while central charging can significantly increase common-area service requirements.

Building Electrification

Heat-pump HVAC, electric water heating, induction cooking, and electric dryers can increase apartment load compared with older mixed-fuel buildings.

These changes should be reflected in service calculations and future capacity planning. Historical rules of thumb may not provide enough margin for highly electrified buildings.

Solar and Energy Storage

PV and battery systems introduce additional power-flow and disconnect requirements at the service entrance. The meter-main or meter-center architecture has to coordinate utility interconnection, equipment ratings, and connection location.

For small residential installations, modern meter-combination products may accommodate these functions effectively. Larger multifamily projects may benefit from switchboard-centered distribution where DER systems can be integrated more flexibly.

Choosing Between Siemens Meter Mains, Meter Centers, and Meter Stacks

A Siemens meter main is generally the right solution when one meter serves one independently metered customer and there is no benefit in creating a shared bus. It combines the metering and disconnect functions in a compact assembly and minimizes service-equipment complexity.

A multi-position meter center becomes appropriate when several customers can share one incoming service arrangement. It improves meter density, reduces repetitive line-side conductors, and can provide an efficient solution for small multifamily or light-commercial properties.

A Siemens Power Mod meter-stack system is stronger when the project requires significant meter density, common high-capacity bussing, modular configuration, multiple tenant sections, house-power modules, or future expansion. The meter stack operates as part of a complete group-metering distribution system rather than as an isolated enclosure.

Projects should move beyond conventional meter-stack architecture when high service capacity, CT metering, large commercial feeders, generator integration, high available fault current, sophisticated protection, or complex source arrangements become the dominant design issues. At that point, a switchboard or switchgear-based system may provide a more appropriate foundation.

Final Perspective

The practical distinction between Siemens meter mains, meter centers, and meter stacks is architectural. A meter main integrates metering and service-disconnect functions for one independently metered service. A meter center centralizes multiple customer meters around common incoming distribution. A meter stack is a modular building block used to create scalable group-metering systems such as Siemens Power Mod.

Selecting the correct architecture requires coordinated evaluation of service voltage, phase, calculated demand, utility requirements, tenant ratings, bus capacity, available fault current, short-circuit performance, disconnect strategy, grounding and bonding, conductor routing, working space, installation labor, and future load growth. The equipment family should follow those engineering decisions rather than dictate them. When that process is handled correctly, the choice between a Siemens meter main, meter center, and meter stack becomes much clearer and much easier to defend technically.

Source Siemens Metering Equipment With BuyRite Electric

At BuyRite Electric, we understand that selecting meter mains, meter centers, and meter-stack components is not simply a matter of matching an ampere rating or meter count. These products have to fit the service architecture, utility requirements, available fault current, tenant distribution strategy, and physical conditions of the installation. For contractors, engineers, estimators, and facilities professionals, that makes dependable product sourcing and accurate application guidance especially important. We have served the electrical industry since 1986, and we continue to help professionals source reliable, code-compliant electrical equipment for projects where safety, performance, availability, and cost-efficiency matter.

We offer a curated selection of electrical products from leading industry manufacturers, backed by responsive service, fast shipping, and our 110% low price guarantee. If you are sourcing Siemens metering equipment, including meter mains, meter-center equipment, meter stacks, or related electrical distribution components, our team can help you identify products that align with your project requirements and application. Explore our full selection of electrical supplies and equipment, or contact BuyRite Electric for product guidance and recommendations. We are here to help you source the right equipment with confidence and keep your project moving.
