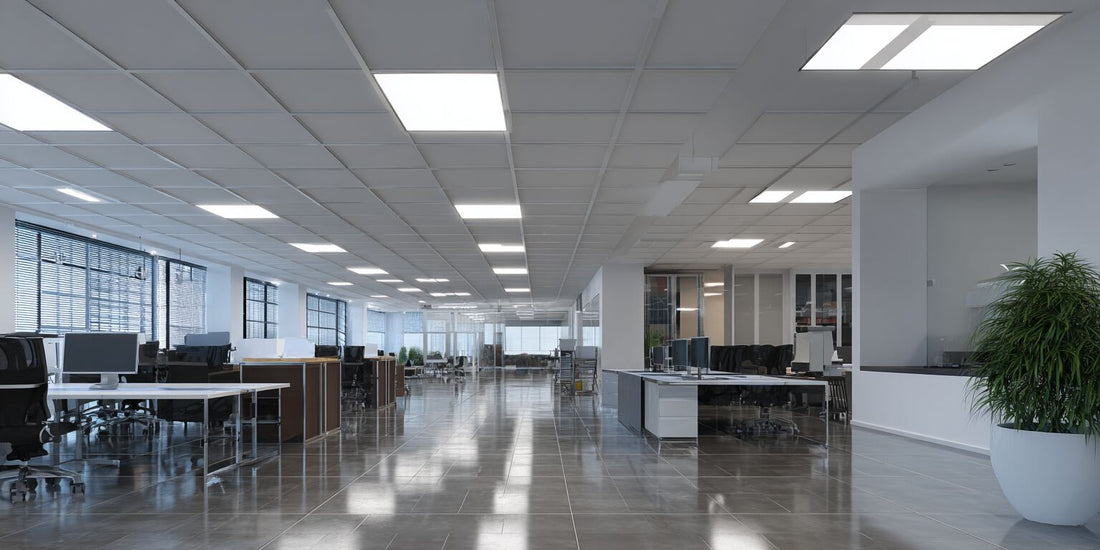

Over the past decade, LED troffer lights have become the standard in commercial, institutional, and industrial illumination. What began as a straightforward retrofit option for legacy fluorescent troffers has evolved into a sophisticated platform for energy management, optical precision, and intelligent control. The transition toward solid-state lighting is no longer just about basic energy savings; it now centers on total building integration, visual comfort, and controllable performance. Modern LED troffers are designed not only to replace existing fixtures but to serve as a backbone for smart building ecosystems.
The term "troffer" itself comes from "trough" and "coffer," describing fixtures recessed into modular grid ceilings. Historically, these luminaires used T8 or T5 fluorescent lamps coupled with prismatic or parabolic lenses to deliver diffused light. The LED evolution introduced integrated light engines, optical diffusers, and electronic drivers, which revolutionized efficiency and controllability. The best modern troffers achieve efficacies exceeding 140 lumens per watt, deliver precise photometric uniformity, and provide full dimming with network connectivity. This article explores every element of LED troffer design, from construction and photometrics to compliance, controls, and emerging technologies.
Construction and Design Fundamentals
Mechanical Design
The construction of an LED troffer is far more than a housing for diodes. It is an engineered system that balances optical performance, thermal management, and mechanical integrity. Typical housings are fabricated from cold-rolled steel or extruded aluminum, finished with powder coating for corrosion resistance. Some manufacturers are now adopting polymer composite housings to reduce weight and enhance recyclability. The optical chamber is equally critical, often incorporating high-transmission diffusers, parabolic reflectors, or volumetric lenses that control luminance and eliminate harsh shadows.
Mounting options must be carefully considered to align with the ceiling architecture. Recessed troffers fit into T-grid ceilings, while surface-mounted and suspended versions serve applications where recessing is not possible. Structural stiffness is important in preventing vibration-induced fatigue, particularly in seismic or high-traffic areas. High-end troffers are also designed with maintenance in mind, featuring hinged lenses and accessible driver compartments to minimize service time.
Thermal Management
Thermal design defines the longevity of the fixture. The LED junction temperature (Tj) must be managed within strict limits, typically under 85°C, to ensure lumen maintenance and chromatic stability. Manufacturers employ a combination of heat sinks, conductive metals, and convection-optimized housings to dissipate heat. Passive cooling through extruded aluminum fins or stamped heat spreaders remains the industry norm, although some high-output models employ hybrid solutions using active airflow.
Thermal simulations using CFD (Computational Fluid Dynamics) are a common practice in high-quality designs. By mapping temperature gradients across the PCB and driver cavity, engineers can predict performance degradation and mitigate hot spots. The correlation between thermal rise and L70 life expectancy is a critical validation factor in LM-80 and TM-21 testing. A well-designed thermal system can mean the difference between a fixture that sustains 90% of its light after 60,000 hours and one that loses output prematurely.
Optical System Design
Optical Control and Diffusion
Optical engineering in LED troffers is centered around distributing light evenly and minimizing glare. The evolution from fluorescent tubes to LED arrays introduced new challenges in achieving volumetric uniformity. Designers now use advanced diffuser materials such as micro-lens films, PMMA sheets, or engineered polycarbonate optics. These elements scatter light at controlled angles to achieve low UGR (Unified Glare Rating) values suitable for office and educational environments.
Many professional-grade troffers use volumetric diffusion where LEDs are mounted on side channels to bounce light off reflective surfaces before exiting through the diffuser. This approach produces a balanced luminous field and prevents the "LED pixel" effect. The result is smoother luminance transition, reduced shadows, and enhanced visual comfort. Optical simulation software like TracePro and LightTools allows designers to model luminous intensity distributions before physical prototyping, which ensures precise control of beam angles and distribution classes per IES standards.
Photometric Uniformity and Efficiency
Uniformity ratios and spatial distribution are key in designing troffers for critical tasks. The goal is typically a luminance uniformity ratio of 1.4:1 across the workspace. High-performance optics deliver a Lambertian distribution pattern, ideal for general ambient lighting. Reflector design also contributes to efficiency; specular or diffuse white coatings can enhance reflectance above 90%, improving delivered lumens without increasing power.
Photometric testing in accordance with IES LM-79 and LM-63 is mandatory for quality assurance. These tests generate IES files used in simulation software like AGi32 for lighting layouts. A well-engineered troffer provides high efficiency, uniform luminance, and superior glare control, while maintaining a visual aesthetic suitable for high-end architectural applications.
Electrical and Driver Technology
Driver Architecture
At the core of every LED troffer lies the driver, responsible for converting AC line voltage into regulated DC power. Two primary driver types dominate the market: constant current and constant voltage. Constant current drivers are standard for integrated troffers since they allow precise control over LED array current, ensuring consistent brightness and color. Advanced drivers incorporate PFC (Power Factor Correction) circuits that achieve power factors above 0.9 and maintain THD (Total Harmonic Distortion) below 15%.
Driver efficiency is paramount because it directly impacts overall system efficacy. Top-tier designs reach driver efficiencies exceeding 90%. Engineers must also consider driver temperature rise and derating at elevated ambient conditions. A quality driver paired with thermal sensors can modulate current output to protect LEDs from overheating, extending fixture life beyond 60,000 hours.
Dimming and Control Protocols
Modern troffers must interface seamlessly with both wired and wireless control systems. Analog 0–10V dimming remains common due to its simplicity, but digital systems such as DALI, D4i, and PoE (Power over Ethernet) are rapidly gaining traction. DALI and D4i enable bi-directional communication, allowing fixtures to transmit operational data like energy usage and run hours. PoE technology, on the other hand, integrates power and data through a single cable, simplifying installation while enabling centralized control.
Wireless control options using Zigbee, Bluetooth Mesh, or proprietary RF protocols are now standard in intelligent building deployments. Surge protection circuits and EMI filters are essential in maintaining electrical stability, particularly in environments with fluctuating power quality. Additionally, emergency backup systems compliant with UL 924 ensure illumination continuity during power outages by integrating self-testing battery modules.
Photometric and Color Performance
Luminous Efficacy and Maintenance
Performance evaluation begins with efficacy, typically measured in lumens per watt (lm/W). Premium troffers achieve 130 to 160 lm/W, depending on optical and electrical efficiencies. However, efficacy alone is not sufficient; lumen maintenance over time determines true system performance. L70 and L90 metrics, derived from LM-80 testing and TM-21 projections, quantify how long a fixture maintains its output. High-quality designs often report L90 at 60,000 hours, translating to less than 10% lumen depreciation after seven years of operation.
Proper thermal design and current regulation play a direct role in achieving these maintenance targets. Overdriving LEDs may initially increase light output but will accelerate degradation and color shift. Specifiers should request LM-80 and TM-21 data from manufacturers to verify compliance. These metrics are not marketing claims; they are engineering guarantees of sustained performance.
Color Quality and Chromatic Stability
Color performance is another cornerstone of professional lighting. Correlated Color Temperature (CCT) selection ranges from 3000K warm white to 5000K cool white, depending on application. Maintaining tight binning tolerances ensures color consistency between fixtures, typically within a 3-step SDCM (Standard Deviation of Color Matching). CRI (Color Rendering Index) values above 85 are common, but TM-30 metrics provide a more accurate assessment of color fidelity and saturation using Rf (fidelity index) and Rg (gamut index).
High-end projects increasingly demand tunable-white or full-spectrum troffers that allow dynamic color adjustment for circadian lighting strategies. SPD (Spectral Power Distribution) analysis is vital to understanding how light affects human perception and biological responses. Properly balanced SPDs minimize blue light hazards while enhancing visual acuity and comfort in task-oriented environments.
Control and Connectivity Integration
Advanced Lighting Controls
As lighting becomes part of the broader building infrastructure, control systems are no longer optional. Integrating LED troffers with occupancy sensors, daylight harvesting, and centralized building management systems (BMS) significantly enhances energy efficiency and occupant comfort. DALI, BACnet, and KNX protocols enable granular control down to the individual fixture level. Through these systems, operators can schedule lighting scenes, monitor real-time energy usage, and implement demand response strategies.
Integrating troffers with addressable controls is especially beneficial in open offices and education spaces. Addressable systems allow flexible zoning and reconfiguration without rewiring, which reduces lifetime costs. Sensors embedded in troffers can collect data on occupancy, temperature, or air quality, turning lighting infrastructure into a platform for broader facility intelligence.
IoT and Smart Building Integration
LED troffers are increasingly deployed as nodes within IoT ecosystems. Wireless communication standards such as BLE Mesh, Thread, or Wi-Fi enable fixtures to interact with cloud-based management platforms. These systems leverage AI algorithms to optimize illumination patterns based on occupancy analytics or daylight levels. The convergence of lighting and IT networks has also led to the rise of PoE lighting, which merges DC power delivery with digital communication.
However, networked lighting introduces cybersecurity challenges. Data encryption, firmware integrity verification, and secure commissioning procedures are critical to preventing unauthorized access. When specifying networked troffers, it is essential to assess manufacturer compliance with cybersecurity frameworks such as IEC 62443 or NIST 800-82 to ensure resilience against vulnerabilities.
Application-Specific Design Considerations
Commercial and Office Environments
In office and commercial spaces, the priority is to create visually comfortable, uniform illumination that supports productivity and well-being. Troffers in these applications must achieve low glare levels, typically UGR <19, and consistent luminance across the ceiling plane. The increasing emphasis on human-centric lighting means that color tunability and circadian synchronization are becoming standard features. With appropriate controls, light levels can dynamically adjust throughout the day to align with human biological rhythms, improving alertness and comfort.
Acoustic performance is another emerging consideration. Some manufacturers integrate sound-absorbing materials within troffer frames to reduce reverberation in open-plan offices. These hybrid luminaires contribute both to lighting quality and to acoustic comfort, demonstrating how multidisciplinary design is shaping the future of lighting.
Healthcare, Education, and Specialty Applications
Healthcare environments impose unique design constraints, requiring sealed optical chambers to prevent contamination and facilitate cleaning. LED troffers for surgical or patient care areas often meet IP65 or IP66 ratings and incorporate antimicrobial coatings on lenses and housings. Flicker-free drivers and precise color rendering (CRI ≥ 90) are essential to prevent eye strain and ensure accurate visual perception for medical staff.
Educational and retail environments demand flexibility. Tunable-white systems are used in classrooms to support cognitive performance, while retail applications leverage high R9 values to enhance merchandise appearance. Industrial and warehouse variants are designed for high ceilings, employing high-output LED arrays and narrow beam distributions to maintain illumination uniformity across large floor areas.
Installation, Retrofitting, and Maintenance
Retrofit vs. New Installation
One of the most practical decisions in lighting projects is whether to retrofit existing troffers or install new fixtures. Retrofit kits provide an economical solution where ceiling grids remain in good condition. These kits typically include LED boards, diffusers, and drivers designed to fit standard fluorescent troffer housings. The key consideration is electrical safety; proper ballast bypass or line voltage rewiring is essential to comply with UL 1598C standards. New installations, on the other hand, offer the advantage of optimized thermal and optical integration that retrofit kits cannot fully replicate.
When lifecycle cost and reliability are prioritized, new troffer installations typically outperform retrofits over time. Retrofit projects are beneficial for rapid energy savings but can carry hidden costs related to compatibility, uniformity, and control integration. In either case, commissioning should include photometric verification and driver calibration to ensure system-level consistency.
Maintenance and Field Performance
LED troffers lower maintenance needs compared to fluorescent fixtures, but they still require attention. Drivers are the most frequent point of failure, responsible for up to 70% of service issues. Choosing troffers with replaceable drivers and standard connectors makes maintenance easier. For networked fixtures, firmware updates and diagnostics can often be done remotely, reducing downtime.
Monitoring systems that track operational hours and driver temperatures help predict problems before they happen. In critical spaces such as hospitals or data centers, using redundancy with dual-circuit feeds or built-in emergency modules ensures lighting remains uninterrupted. When properly maintained, LED troffers can last over 100,000 hours while maintaining consistent brightness and color quality.
Standards, Compliance, and Certification
Performance and Safety Standards
Compliance with established standards ensures performance consistency and safety. The Illuminating Engineering Society (IES) provides testing methodologies such as LM-79 for electrical and photometric performance, LM-80 for LED lumen maintenance, and TM-21 for lifetime projections. LM-84 and TM-30 further refine long-term and color rendering assessments. These standards provide the backbone for evaluating troffer reliability and quality.
On the safety side, UL 1598 governs luminaire construction and testing, while UL 8750 applies specifically to LED components. Compliance with these standards confirms that the product meets mechanical, thermal, and electrical safety requirements. Additional certifications, such as FCC for electromagnetic compatibility and RoHS for material restrictions, may be required depending on project jurisdiction.
Regulatory and Sustainability Frameworks
Energy regulations drive much of the industry’s innovation. ASHRAE 90.1 and California’s Title 24 establish baseline efficiency requirements and mandatory controls integration for commercial lighting. Fixtures listed under DLC Premium certification qualify for utility rebates, which can significantly reduce project payback periods. For international projects, compliance with EN 12464 ensures adherence to European indoor lighting standards.
Sustainability frameworks such as LEED v4.1 and WELL focus on occupant wellness and energy reduction. LED troffers that integrate daylight harvesting, high CRI, and tunable-white capabilities directly contribute to LEED points under the Lighting and Energy Optimization categories. BREEAM and Green Star programs similarly recognize lighting efficiency and controllability as metrics of environmental performance.
Lifecycle Cost Analysis and ROI
Economic Evaluation
A thorough economic assessment of LED troffers extends beyond initial purchase cost. The true measure is the total cost of ownership (TCO), which includes installation, energy consumption, maintenance, and replacement over the fixture’s lifetime. High-efficiency troffers can reduce energy use by 50 to 70 percent compared to fluorescent equivalents. When paired with intelligent controls, savings can exceed 80 percent.
Return on investment (ROI) is typically achieved within 2 to 4 years depending on energy costs and rebate availability. For large real estate portfolios, standardizing on a DLC Premium product line ensures predictable payback and simplified procurement. Projects with integrated control systems generally yield the most favorable ROI due to enhanced operational insights and reduced downtime.
Environmental and Sustainability Benefits
LED troffers contribute to sustainability goals beyond mere energy efficiency. They contain no mercury, have lower embodied carbon than older technologies, and support end-of-life recyclability. Advanced lifecycle analyses often reveal a carbon payback period of less than one year when replacing fluorescents. These metrics are increasingly critical for ESG reporting and corporate sustainability disclosures.
Incorporating sensors and network controls also enables demand response capabilities, allowing buildings to participate in grid management programs. This not only improves the building’s sustainability profile but also opens new financial incentives from utilities and regulatory bodies. Lighting is no longer a passive energy consumer; it is now an active participant in energy ecosystems.
Performance Optimization and Specification Best Practices
System Integration and Compatibility
Achieving optimal performance from LED troffer lighting systems requires a holistic approach that considers every element of the luminaire and its electrical environment. System integration begins at the specification stage, where compatibility between the LED array, driver, dimming controls, and building automation system must be verified. Even high-quality components can underperform if mismatched electrically or optically. Proper load matching, voltage regulation, and control signal calibration are fundamental to ensuring consistent operation and longevity.
Specifiers and electrical engineers must review driver dimming curves, control protocol versions, and fixture wiring schematics to prevent signal interference or communication delays in networked systems. In large-scale projects, interoperability testing using DALI, PoE, or BACnet controllers ensures reliable performance across diverse fixture types and manufacturers. Documenting compatibility and commissioning results helps streamline future maintenance and system upgrades.
Quality Assurance and Field Validation
Once LED troffers are installed, systematic validation of performance ensures that design objectives are realized. Field measurements should include illuminance mapping, power quality verification, and color consistency assessments. Measuring parameters such as CCT deviation, flicker index, and harmonic distortion helps identify early issues that may affect performance or compliance. Using calibrated photometers and spectroradiometers allows facility teams to maintain quality assurance in line with IES and DLC requirements.
Maintenance protocols should include scheduled inspections of thermal conditions, driver status, and control functionality. Logging operational data supports predictive maintenance, reducing downtime and extending service life. Many high-end LED troffers support diagnostic communication through DALI-2 or PoE platforms, allowing facility managers to track driver temperatures, runtime, and energy consumption in real time. Implementing these best practices ensures that the lighting system delivers sustained efficiency, color stability, and user comfort throughout its operational lifespan.
Final Reflections
LED troffer lights represent far more than an upgrade from fluorescent technology. They embody a complete transformation in how illumination, building intelligence, and sustainability intersect. The engineering behind these luminaires merges optical science, electronics, thermodynamics, and digital control in a single architecture. For professionals in lighting design, energy management, and facilities engineering, understanding the full spectrum of performance parameters is essential for achieving both technical excellence and operational efficiency.
The future of troffer lighting lies in integration: integration with building systems, with environmental goals, and with human needs. Whether through adaptive color tuning, advanced data analytics, or modular design, LED troffers are redefining what it means for a luminaire to perform. The path forward will be shaped by continuous innovation, but the foundation has already been laid with efficient, controllable, and intelligent lighting that supports the next generation of high-performance buildings.
