- Under-cabinet LED lights should be mounted 1–2 inches behind the cabinet front to eliminate countertop shadows caused by the user’s body.
- Under-cabinet LED glare is reduced by fully concealing diodes with diffusers, valances, or shielding and directing light away from eye-level reflections.
- High-performance under-cabinet lighting requires coordinated fixture placement, drivers, wiring, and controls to consistently deliver 300–500 lux on work surfaces.
Precision in the placement of LED under cabinet lighting is essential for achieving optimal lighting performance, visual comfort, and long-term reliability. Even with high-quality fixtures and advanced control systems, poor placement can compromise the entire lighting installation. Under cabinet lighting systems must meet both functional and aesthetic requirements, often within tight spatial and construction constraints. The demands are especially high in professional kitchens, laboratories, retail environments, and premium residential installations where uniformity, glare control, and clean integration are non-negotiable.
This comprehensive guide presents six key placement guidelines, each grounded in professional practice and technical rigor. The focus is on actionable principles that align with real-world cabinet construction, electrical planning, and lighting design workflows. From fixture alignment to driver access, each guideline addresses critical components of system success. This article assumes a technical audience and omits basic coverage, instead concentrating on advanced placement strategy and integration methods that support high-performance and code-compliant lighting systems.
Pre-Installation Requirements
Coordination with Trades
Successful under-cabinet lighting begins with coordination between all involved trades, a practice that also aligns with the LED under cabinet fundamentals that guide early design decisions. Cabinet fabricators, electricians, and lighting designers must align their efforts during the design phase, not post-construction. Cabinet dimensions, trim profiles, channel locations, and driver mounting areas all influence lighting placement. If these elements are not discussed and finalized early, field modifications can become necessary, often resulting in compromised lighting performance or costly delays.
The ideal workflow includes incorporating fixture and driver information into shop drawings. This enables cabinet manufacturers to route accurate profiles and electricians to plan wiring drops based on real dimensions. Lighting integrators should also communicate zone assignments and control locations clearly during the rough-in stage. When fixture placement is treated as a last-minute decision, outcomes often include visible diode exposure, unserviceable drivers, or inefficient beam angles. Integrated planning prevents such issues and allows the lighting system to perform as intended.
Power Distribution and Driver Location
Low-voltage LED systems dominate under cabinet applications, requiring careful planning for power distribution and driver installation. Centralized drivers reduce component sprawl but increase cable length and potential voltage drop. Conversely, distributed drivers offer modularity but require more installation coordination. The placement of each light is constrained by where its power supply can safely and accessibly reside, making early decisions about power architecture crucial.
Driver locations must meet thermal management, code compliance, and serviceability standards. Drivers should never be placed in sealed cavities without ventilation, nor should they be inaccessible after cabinetry is installed. Adequate clearances must be maintained to allow heat dissipation and future replacement. Furthermore, drivers must match the control scheme, whether using 0-10V, ELV, DALI, or wireless systems such as Casambi. Proper alignment of electrical infrastructure with fixture placement ensures consistent brightness, flicker-free dimming, and long-term reliability.
Guideline 1: Forward Placement to Eliminate Shadow Zones
Optimal Fixture Positioning
The effectiveness of under cabinet lighting hinges on precise placement relative to the front face of the cabinet. Fixtures positioned too far toward the back of the cabinet often create deep shadows on the countertop, especially when the user stands directly in front of the workspace. Optimal placement is typically 1 to 2 inches behind the front edge of the cabinet frame. This forward location ensures that light reaches the work surface directly, reducing scalloping and creating uniform task illumination.
The fixture’s beam angle and output characteristics further inform placement, especially when applying directional lighting concepts that control beam spread and cutoff under cabinets. Wide-beam (100° to 120°) linear LED profiles benefit from forward placement to maximize horizontal spread. Fixtures with narrower beams or minimal diffusion may require careful angling to avoid focused hotspots. The use of angled extrusions or asymmetric lenses can direct light downward and forward, compensating for physical constraints while preserving even illumination. Measurements should be verified in the design phase to ensure alignment with beam distribution and work surface coverage.
Mounting Options and Profile Selection
Surface-mounted and recessed installations require different placement strategies. Surface-mounting allows for flexibility and ease of access but can lead to unwanted glare or visible components if not shielded properly. Recessed mounting offers cleaner aesthetics but depends on cabinetry construction tolerances and available space for channel routing. Each approach must account for the dimensions of the LED strip, extrusion, diffuser, and connector clearance.
In high-end installations, recessed aluminum profiles with built-in diffusers and shielding lips are commonly used to conceal diodes and reduce glare. Profile depth and flange width must be specified early to ensure compatibility with cabinet face depth and construction material. Placement must also allow for endcaps, wire exits, and serviceability. Without accurate integration of fixture dimensions into the cabinet design, even small deviations in placement can disrupt the intended light distribution pattern.
Guideline 2: Control of Glare and Beam Cutoff
Shielding and Diode Concealment
Minimizing glare is essential for achieving a visually comfortable and professional under cabinet lighting solution. Direct line-of-sight exposure to diodes should be avoided in all occupied viewing angles, especially at seated or standing eye levels. Glare can be mitigated through physical shielding using cabinet lips, custom light valances, or extrusions with integrated baffles. Light valances are particularly effective in kitchens and retail settings where the user frequently changes position and viewing angle.
Even in recessed installations, fixtures must be evaluated for their cutoff angles to ensure that the source remains concealed. This becomes especially important in open spaces where adjacent countertops or dining areas allow visibility into the cabinet undersides. Test installations or mock-ups can identify critical glare paths before finalizing placement. Using diffused COB strips, high-density LED arrays, or frosted lenses can further reduce visible hot spots and improve overall beam homogeneity.
Surface Reflectance and Lighting Interactions
The reflectivity of adjacent materials influences how light behaves after leaving the fixture. High-gloss countertops, glass backsplashes, and polished metals can reflect LED light directly into the user’s eyes, creating secondary glare. Placement must consider these surfaces and their angles relative to the fixture’s beam spread. Lowering the beam angle or redirecting light using tilted extrusions helps reduce reflected glare while maintaining sufficient task illumination.
Matte finishes on surfaces adjacent to the light source are generally preferred, as they diffuse rather than reflect light. When selecting materials for cabinet interiors, countertops, or backsplashes, collaboration between lighting designers and interior architects helps minimize undesired optical effects. Placement should be coordinated not only to light the surface efficiently but also to manage secondary reflections, which can significantly affect user experience.
Guideline 3: Lux Levels and Task vs. Ambient Performance
Target Illuminance and Performance Criteria
Under cabinet lighting serves both functional and aesthetic roles. In task-centric environments such as kitchens, laboratories, and workstations, the primary goal is achieving uniform and adequate illuminance on the work surface. Recommended target levels typically range from 300 to 500 lux, depending on the application. Meeting these levels requires strategic placement of fixtures to ensure sufficient coverage and avoid drop-offs at the edges.
Modeling lux distribution using lighting simulation software is a best practice for validating placement choices. Tools like DIALux or AGi32, paired with accurate IES files from manufacturers, provide visualization of how light behaves on surfaces based on mounting height and beam angle. This allows designers to predict whether placement and fixture density will meet task performance specifications. Verifying photometric data is particularly important when integrating under cabinet lighting into regulated or inspected environments.
Color Rendering and Temperature Uniformity
Color rendering index (CRI) and correlated color temperature (CCT) must align with the lighting system’s intended purpose. High-CRI fixtures (CRI 90 or above) are essential in applications involving food preparation, textile inspection, or product display. Consistency in CRI and CCT across multiple fixtures is necessary to maintain visual continuity and prevent perceptible color shifts along the cabinet run. Improper placement, particularly with color-tunable or RGBW systems, can create visible gradients or uneven blending.
Color temperature selection also influences placement. Warmer tones (2700K–3000K) are suitable for ambient applications or residential environments, while neutral to cool tones (3500K–4000K) better support task visibility. Placement must ensure that each portion of the light output reaches the intended surface uniformly, particularly when layering ambient and task lighting in the same zone. Zonal lighting with independent controls often benefits from placement adjustments tailored to each functional area.
Guideline 4: Consistent Distribution and Fixture Length Matching
Uniformity Across Cabinet Runs
Maintaining continuous and uniform light distribution across cabinet runs is fundamental to high-quality under cabinet lighting design. Breaks in illumination can occur when fixtures are too short for the cabinet length or when segmented strips are improperly aligned. Uneven lighting, dark patches near corners, or overly bright junctions between strips can disrupt the visual rhythm and reduce both functionality and aesthetic quality. These inconsistencies often stem from selecting pre-cut lengths rather than custom-fitting fixtures to the cabinet dimensions.
To ensure uniformity, fixture lengths should be matched precisely to the usable cabinet width, accounting for any internal hardware, hinges, or structural barriers. Where long cabinet runs are divided into multiple sections, interconnected linear strips should maintain consistent spacing and brightness. Corner areas and transitions between upper cabinets require particular attention, as misalignment in these zones often leads to perceptible light discontinuities. Continuous extrusion channels or modular systems with seamless connectors help preserve optical consistency across multiple cabinet sections.
Electrical Continuity and Color Matching
Beyond physical placement, the electrical configuration also plays a critical role in ensuring consistent lighting across multiple fixtures. Voltage drop, particularly in 12V systems, can lead to brightness reduction toward the end of long runs if not properly managed. This effect becomes more noticeable as power draw increases or cable lengths extend beyond standard limits. Distributing power from both ends or centrally locating the feed point can help equalize brightness across the run. Wire gauge and connection integrity must also be evaluated during design to prevent imbalance.
Color consistency requires matching LED binning and using modules with tight MacAdam ellipse ratings (preferably within 2-step or 3-step). Color shifts can result not only from mismatched product batches but also from uneven thermal environments caused by variable cabinet ventilation. Placement must account for these differences and standardize conditions as much as possible. When integrating tunable white or RGBW systems, equal spacing and balanced driver output across all fixtures are essential to avoid color irregularities along the cabinet length.
Guideline 5: Integration with Cabinet Construction
Recessed Mounting and Routing Precision
Recessed fixture integration demands a high level of precision in cabinet construction. Accurate routing of aluminum channels or extrusions into the bottom panel of the cabinet ensures flush mounting, improves aesthetics, and protects fixtures from accidental contact. The depth and width of routed grooves must match the extrusion profile dimensions exactly, allowing for smooth installation without distorting the LED strip or diffuser. These details must be incorporated into cabinet shop drawings early in the process to avoid retrofitting or field improvisation.
Thermal considerations must also be factored into recessed installation. Aluminum profiles serve as heat sinks, but if the routed cavity is too tight or fully enclosed, heat dissipation is restricted. This can shorten the lifespan of the LED modules and compromise color consistency. Adequate airspace around the profile or vented cabinet designs can help mitigate this issue. In high-output applications, designers should consider thermal load when determining placement and select profiles with sufficient mass to manage heat passively.
Mounting Methods and Material Compatibility
The choice of mounting hardware and attachment method must correspond to the cabinet’s material composition. In solid wood or plywood substrates, mechanical fastening using screws or brackets offers reliable support. For MDF, particle board, or laminated materials, adhesive tapes, clips, or magnetic fasteners may be more appropriate. Surface preparation is critical when using adhesives; even premium bonding agents require clean, dust-free substrates to maintain adhesion over time.
Serviceability is a key consideration in all mounting strategies. Fixtures should be accessible for maintenance, replacement, or control adjustments without requiring the destructive removal of cabinet elements. Profiles that allow the LED strip to be slid out or popped open from the diffuser side offer advantages in long-term maintenance. Wire access panels, removable valances, or hinged bottoms provide additional flexibility. Designing fixture placement with service access in mind reduces labor time and ensures that maintenance can be performed without damaging cabinetry or fixtures.
Guideline 6: Control Logic, Dimming, and Zone Coordination
Control Infrastructure and Driver Compatibility
The selected control method directly affects fixture placement due to wiring requirements and driver configurations. Systems using 0-10V dimming require separate signal and power conductors, which must be routed through accessible pathways and protected from interference. Wireless systems such as Casambi allow for greater freedom in driver placement but still require consideration of range, signal integrity, and network architecture. The physical location of drivers, receivers, and interfaces must align with the cabinet layout and anticipated user interaction zones.
Dimming performance depends on both the driver and the fixture placement. Low-frequency PWM dimming can produce visible flicker, especially at lower output levels. High-frequency dimming drivers (typically >2kHz) offer smoother operation and should be paired with fixtures that support a wide dimming range. Fixture placement affects the perceived quality of dimming transitions, particularly in layered lighting environments. Dim-to-warm systems or tunable white solutions benefit from placement strategies that support visual blending and avoid abrupt transitions between zones.
Zonal Lighting Strategies and Layered Control
Strategic zoning improves functionality and user control in complex lighting environments. Under cabinet lighting is typically divided into zones based on task and aesthetic function: direct task lighting on work surfaces, ambient lighting for general mood, and accent lighting on decorative elements or toe kicks. Each of these zones may require distinct placement strategies to support independent control, dimming curves, or color temperature settings.
Zoning should be reflected in both the electrical layout and the physical placement of fixtures. Fixtures in the same control zone must share similar mounting height, beam spread, and orientation to maintain consistent lighting behavior. Placement also affects sensor-based automation. For instance, motion sensors activating under cabinet lighting must be positioned to avoid false triggers or unresponsive zones. Coordinated placement ensures that each lighting zone functions as a coherent system, delivering performance and usability in line with the overall lighting design.
Application Constraints and Failure Modes
Common Errors in Fixture Placement
Improper fixture placement frequently leads to functional deficiencies and premature system failures. One of the most common errors is installing fixtures too close to cabinet backs or obstructions, causing shadows on the work surface or trapping heat. Other errors include placing fixtures without shielding, resulting in visible glare, or failing to account for wire routing paths, leading to crushed cables or exposed terminations. These errors are often the result of field improvisation rather than adherence to a coordinated plan.
Placement errors can also create compatibility issues. Fixtures installed at different distances from the cabinet face may produce uneven lighting, even if identical in model and output. Misaligned fixtures across adjacent cabinets can create visual breaks, disrupting the seamless appearance intended by the design. To avoid these problems, consistent measurements, alignment jigs, and verification against construction drawings should be standard procedure during installation. Documentation, mockups, and physical testing help validate placement before final fixture integration.
Space and Compliance Limitations
Physical constraints imposed by cabinet construction, HVAC obstructions, or appliance placement often limit fixture options. In shallow cabinets or locations with deep valances, the available mounting space may not accommodate standard profiles. Custom extrusions or ultra-slim LED strips may be necessary, but these often come with trade-offs in brightness, diffusion, or serviceability. Careful selection of fixtures that balance performance and form factor is essential when working in constrained spaces.
Electrical codes and environmental considerations also impose placement limitations. Fixtures installed near sinks or in damp-rated areas must carry appropriate ingress protection ratings (IP44 or higher) and be positioned to minimize exposure to moisture. Drivers and control gear must be located outside of wet zones unless specifically rated. Compliance with UL, ETL, or local regulatory standards affects where and how fixtures can be mounted, especially in commercial or hospitality projects. All placement decisions must therefore be evaluated for both physical fit and regulatory compliance.
Documentation, Compliance, and Specification Tools
Simulation and Modeling Tools
Lighting simulation software plays a vital role in refining fixture placement and predicting final performance. Tools such as DIALux, AGi32, and Relux allow designers to model fixture positions, beam angles, reflectivity, and mounting heights in a 3D environment. By inputting IES photometric data, designers can simulate lux levels, uniformity ratios, and glare indices before construction begins. This modeling informs fixture selection and placement, minimizing field adjustments and ensuring that the lighting design meets specified targets.
In professional practice, simulation outputs are shared with all stakeholders, including architects, cabinet fabricators, and electricians. These models help establish the rationale for placement decisions, especially when physical constraints require deviation from standard guidelines. Simulations also provide documentation that can be used during project commissioning and client signoff, ensuring transparency and consistency throughout the project lifecycle.
Specification Documents and Installation Standards
Comprehensive specification documents support the proper implementation of fixture placement. These documents should include fixture cut sheets, detailed placement diagrams, mounting instructions, driver and control specifications, and zone mapping. For complex installations, elevation drawings and section views showing exact fixture placement relative to cabinetry components are essential. Specifications should also include cable routing plans, power supply locations, and contingency options for alternate placements if obstructions arise.
Standardizing the documentation process helps ensure that installers execute the design accurately. Specifications should be aligned with project standards and cross-referenced against manufacturer requirements. Including IP ratings, thermal management notes, and service access instructions strengthens compliance with code and improves maintainability. Proper documentation transforms fixture placement from a site decision into a verified design element, integral to the success of the entire lighting system.
Final Thoughts
Proper placement of LED under cabinet lighting is a technical discipline that directly influences lighting performance, visual comfort, system longevity, and maintenance efficiency. Each of the six guidelines outlined in this article addresses a critical dimension of placement, from forward positioning to control integration, that must be resolved to deliver a high-quality installation. These placement strategies are not theoretical. They are built on best practices developed through extensive field application, technical validation, and collaborative coordination with other construction trades.
Achieving optimal results requires more than choosing quality fixtures. It demands attention to cabinet geometry, electrical layout, photometric behavior, and control system requirements. Placement must be precise, consistent, and responsive to the functional needs of the space. When applied correctly, these principles lead to lighting systems that not only meet specifications but also elevate the overall design. Professionals who treat placement as a core design parameter, rather than an afterthought, consistently deliver superior lighting outcomes.
About BuyRite Electric
At BuyRite Electric, we understand the demands that professionals face when designing and implementing reliable lighting systems, including under cabinet LED applications. Placement precision, code compliance, and component integrity are critical to project success, and we are committed to supplying the products that help professionals meet those high standards. Whether the focus is on lighting performance, safety, or long-term durability, we support every phase of the installation process with dependable components from top-tier manufacturers.
As specialists in commercial and residential electrical supply since 1986, we offer a carefully selected inventory that includes floor boxes, power delivery systems, lighting control devices, and more. Our team works with contractors, facility managers, and electrical professionals to ensure each product selected aligns with project requirements. For lighting systems that demand precision and performance, like under cabinet LED installations, our curated offerings and expert support make BuyRite Electric the trusted partner on any job. Visit our website to explore our full product line or contact us for product guidance. We’re here to help you get the job done right.
Shop Our Products

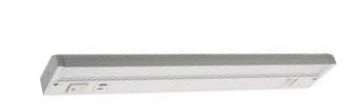

LED Under Cabinet Lights
