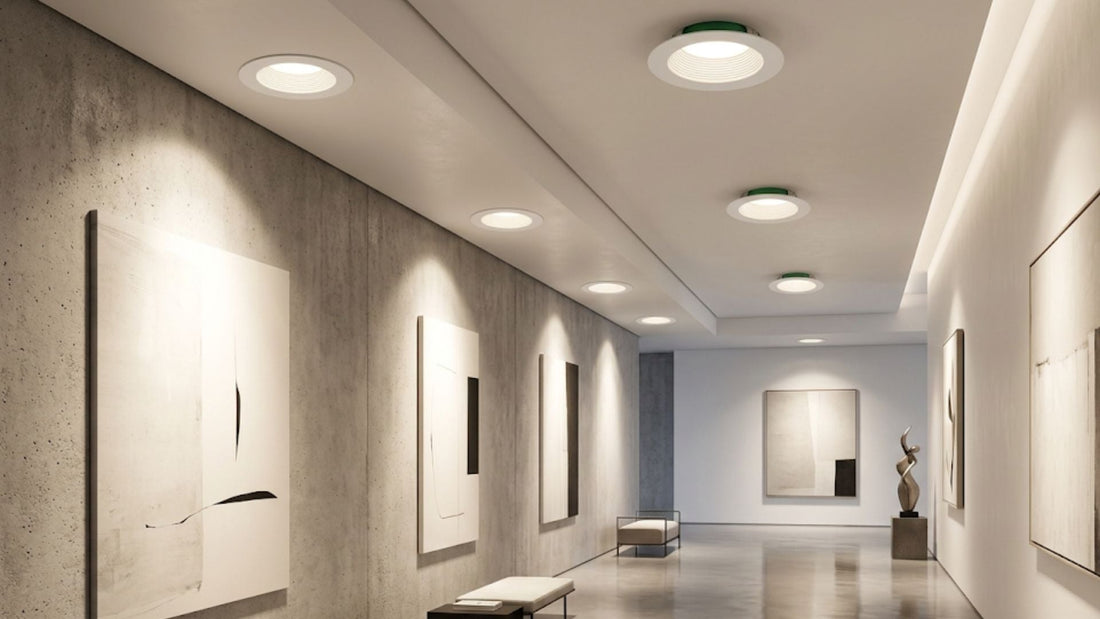

- LED recessed lighting performance is determined by candela distribution, beam angle, mounting height, and surface reflectance modeling.
- LED recessed lighting spacing must be calculated from beam geometry and uniformity targets, not spacing criterion alone.
- LED recessed lighting layouts require glare control, functional density variation, coordinated systems integration, and photometric verification.
Recessed lighting layout is one of the most technically demanding components of architectural lighting design. While fixture specifications often receive significant attention, performance outcomes are largely determined by placement geometry, optical behavior, surface reflectance, and spatial hierarchy. In professional environments where visual comfort and architectural precision are critical, layout decisions must be engineered rather than improvised.
LED technology demands disciplined layout methods. Its high efficacy, precise optics, and compact apertures enable accuracy but also magnify errors. As documented by the U.S. Department of Energy, solid-state lighting offers strong performance and efficiency benefits, making proper application and optical control essential. Mistakes such as overlapping beams, misjudging vertical illuminance, or ignoring reflectance can cause glare, uneven lighting, or overlighting. The following framework outlines the technical foundation and eight key professional layout principles for controlled, performance-driven results.
Technical Foundations That Govern Layout Decisions
Photometric Interpretation Beyond the Cut Sheet
Lumens describe quantity, but candela distribution defines behavior. CBCP determines how effectively light is delivered to a vertical surface or task plane. Two luminaires with similar lumen output can produce entirely different vertical illuminance results depending on beam intensity and distribution. For layout purposes, polar candela curves provide more actionable information than raw lumen values.
Beam angle and field angle must be interpreted with precision. Beam angle is generally defined at 50 percent of peak intensity, while field angle reflects 10 percent of peak. This distinction directly affects beam overlap and uniformity. Spacing Criterion can serve as a preliminary reference, but it assumes average reflectance conditions and standard ceiling heights. In projects involving dark finishes, high ceilings, or layered optics, SC should be validated through detailed modeling rather than treated as prescriptive.
Calculating Spacing Based on Mounting Height and Optics
Mounting height above the finished floor determines how the beam expands before reaching the target surfaces. For general ambient lighting, spacing often begins within a range of 0.5 to 0.75 times ceiling height. For narrow beam task applications, spacing typically narrows to 0.3 to 0.5 times ceiling height. These ratios establish a starting framework that must be refined through photometric analysis.
Spacing is further influenced by several variables:
- Beam angle and field angle
- Surface reflectance values
- Desired uniformity ratio
- Target vertical illuminance
For example, a 40 degree optic in a high reflectance environment can tolerate wider spacing due to interreflections that supplement illumination. In darker interiors, tighter spacing may be required to maintain consistent luminance. The objective is not equal spacing but performance based spacing aligned with measurable targets.
Illuminance Metrics That Actually Matter
Horizontal footcandle targets alone do not define spatial brightness. Human perception responds strongly to vertical luminance and facial illumination. For this reason, vertical illuminance benchmarks should be established early in the layout process. Balanced luminance across walls and architectural features prevents the common condition of bright floors paired with visually dull walls.
Critical evaluation metrics include:
- Average to minimum uniformity ratio
- Cylindrical illuminance for face modeling
- Contrast ratios between focal and ambient zones
Recommended illuminance benchmarks and uniformity guidance are defined in published standards from the Illuminating Engineering Society (IES), which establish widely recognized criteria for interior lighting performance
Surface Reflectance and Its Quantifiable Impact
Surface reflectance alters how recessed lighting performs within an enclosure. A ceiling with high reflectance contributes secondary illumination through reflected spill light. A dark ceiling absorbs energy and reduces perceived brightness, often requiring adjusted spacing or higher CBCP fixtures to compensate.
Accurate modeling requires inputting realistic reflectance values for:
- Ceiling
- Walls
- Floor
- Significant millwork surfaces
Gloss level must also be considered. Semi gloss or satin finishes can introduce localized highlights that increase discomfort glare. Matte finishes produce more predictable luminance distribution. Without precise reflectance data, modeled predictions may significantly deviate from field performance.
The 15 Professional Layout Principles
1. Prioritize Vertical Illuminance to Define Spatial Brightness
Establishing Vertical Targets
Vertical surfaces dominate spatial perception. When walls remain under illuminated, a room feels dim regardless of horizontal compliance. Establishing vertical lux targets aligned with program requirements ensures balanced luminance and volumetric clarity. In many residential living areas, vertical levels are designed to achieve 30 to 50 percent of horizontal illuminance to create equilibrium.
Preventing Floor Dominance
Excessive focus on horizontal lighting leads to over lighting of floors while walls remain subdued. This imbalance creates visual discomfort and inefficient energy use. Designing with vertical illuminance as a primary objective reduces unnecessary lumen deployment and produces a more visually engaging environment.
2. Determine Wall Setback Using Beam Geometry
Calculating Beam Spread
Wall setback should be derived from beam geometry rather than fixed dimensions. A practical calculation involves multiplying ceiling height by the tangent of half the beam angle to estimate beam footprint at the wall plane. This geometric approach ensures consistent wash patterns across varying ceiling heights and optic selections.
Grazing Versus Washing
Grazing textured materials requires fixtures positioned closer to the wall to enhance relief through shadow contrast. Washing smooth surfaces benefits from slightly increased setback to minimize scalloping. The difference between grazing and washing is a function of angle and distance, not preference.
3. Use Beam Overlap Intentionally to Control Uniformity
Managing Intensity Drop Off
Beam overlap determines uniformity. Narrow beams require tighter spacing to prevent hot spots and visible scallops. Wider beams allow broader spacing but may reduce punch on vertical surfaces. Evaluating intensity drop off curves ensures overlap occurs at appropriate intensity thresholds.
Targeting Uniformity Ratios
Professional applications often target average to minimum uniformity ratios below 3:1 in residential and below 2:1 in performance driven commercial settings. Excessive overlap increases glare and energy consumption, while insufficient overlap creates uneven luminance patterns. Proper overlap balances efficiency and visual consistency.
4. Design Density Variations to Establish Functional Hierarchy
Differentiating Task and Circulation
Uniform grids can flatten spatial hierarchy. Density variations signal functional zones without physical barriers. Task areas may feature tighter spacing or higher CBCP fixtures, while circulation paths employ more restrained deployment.
Subtle Spatial Signaling
Even modest changes in spacing influence perception. Adjusting spacing from 4 feet to 5.5 feet can subtly shift emphasis without disrupting ceiling rhythm. Density becomes a compositional tool that reinforces programmatic intent.
5. Align Fixtures to Architecture and Structural Logic
Respecting Architectural Axes
Downlights should reinforce architectural intent rather than impose arbitrary symmetry. Aligning fixtures with millwork, focal walls, or primary circulation axes strengthens visual coherence. Structural framing must also be considered to avoid field adjustments that compromise alignment.
Integrating with Structural Constraints
Early coordination with structural systems prevents conflicts with joists and mechanical runs. Establishing alignment rules during schematic design reduces the likelihood of compromised layouts during construction documentation.
6. Control Glare Through Regress Depth and Shielding Angle
Evaluating Sightlines
Glare assessment must consider typical seated and standing viewpoints. Aperture diameter and regress depth influence how the light source appears within peripheral vision. Shielding angle should be evaluated relative to eye height to reduce high angle brightness.
Balancing Aperture and Output
Deep regress reduces discomfort glare but may introduce stark contrast between bright source and dark ceiling plane. Balancing aperture size, trim reflectance, and CBCP ensures visual comfort without sacrificing performance.
7. Avoid Uniform Grids in Favor of Purpose Driven Layouts
Breaking Predictable Patterns
Rigid equidistant grids often produce visual monotony. Purpose driven layouts respond to functional zones and focal points rather than abstract symmetry. Slight asymmetry can enhance visual interest while maintaining order.
Composing the Ceiling Plane
The ceiling should function as a composed surface rather than a repetitive matrix. Adjusting spacing strategically creates emphasis and hierarchy without overt pattern disruption.
8. Layer Beam Angles Within the Same Ceiling Plane
Combining Optics Strategically
Different beam angles serve distinct roles. Narrow optics can highlight artwork or textured materials, while wider optics provide ambient coverage. Layering beam types within a single ceiling introduces depth and contrast.
Maintaining Visual Coherence
Transitions between optic types must be carefully organized. Grouping similar beams within logical zones prevents visual fragmentation. Photometric modeling ensures layered optics contribute to overall balance rather than conflict.
9. Calculate for Furniture and Human Positioning
Anticipating Occupant Sightlines
Recessed layout must respond to how people occupy the space, not just to architectural geometry. Seating arrangements, dining tables, workstations, and circulation paths all influence where light should land. Downlights positioned directly overhead in seating areas can create deep eye sockets and unflattering facial shadows. Offsetting fixtures slightly forward of seating positions improves face modeling and increases cylindrical illuminance.
Sightline analysis is especially important in living rooms, conference rooms, and hospitality lounges. When occupants look across a space, luminaires that are insufficiently shielded can create high angle glare. Evaluating fixture position relative to typical viewing angles ensures that performance extends beyond plan view geometry.
Integrating with Furniture Layout
Furniture layouts should be overlaid with lighting plans early in the design process. In kitchens, downlights should align relative to countertop edges rather than room centerlines. Proper positioning prevents body shadowing during task work and improves uniformity on preparation surfaces.
In bedrooms and hospitality suites, luminaire placement must consider bed orientation and nightstand usage. Aligning downlights to architectural symmetry without referencing furniture can result in awkward light distribution. Performance driven layouts require coordination between lighting and interior planning.
10. Prevent Overlighting Through Controlled Lumen Deployment
Designing for Dimming Headroom
Modern LED systems deliver high efficiency and strong CBCP in compact apertures. Efficiency gains, thermal control, and long-term operating performance are central themes within LED recessed lighting energy efficiency principles. Over lighting has become a frequent issue because lumen output often exceeds actual need. Professional layouts should be designed so that fixtures operate at approximately 70 to 80 percent under typical scenes. This provides headroom for higher output conditions without sacrificing comfort.
Designing for partial output also improves visual refinement. When luminaires operate below maximum capacity, glare potential is reduced and contrast relationships are easier to manage. This approach ensures the environment remains flexible while avoiding excessive brightness.
Preserving Contrast and Visual Comfort
Over lighting reduces contrast quality and can flatten architectural features. Balanced luminance distribution, rather than maximum brightness, produces more refined results. Excessive horizontal illumination often creates reflective glare on polished surfaces and increases discomfort brightness within peripheral vision.
Controlling lumen deployment through accurate photometric modeling prevents unnecessary energy use and enhances long term adaptability. The objective is not to fill the space with light, but to shape it with intention.
11. Design Recessed Layouts for Tall or Multi Level Ceilings
Adjusting Spacing for Increased Mounting Height
As mounting height increases, beam spread expands before reaching the target plane. Wider optics may lose intensity at floor level, while narrow optics can produce pronounced hot spots. Spacing ratios must be recalibrated to maintain consistent vertical and horizontal performance.
In ceilings above 14 feet, spacing often increases proportionally, but only after verifying uniformity and vertical illuminance. Simply scaling spacing by ceiling height can compromise wall luminance and focal emphasis. Detailed modeling ensures adequate beam overlap at lower planes.
Balancing Ceiling and Vertical Brightness
Tall volumes risk producing bright ceiling planes with comparatively dim lower walls. To prevent this imbalance, recessed downlights are often supplemented with wall washers or directional accents. Maintaining vertical illumination at human scale preserves spatial comfort.
A layered approach in high volume spaces ensures that the eye remains engaged at occupant level rather than being drawn exclusively upward. Downlights must contribute to volume without dominating it.
12. Integrate Recessed Lighting with HVAC and Ceiling Systems Early
Coordinating Disciplines
Recessed luminaires share ceiling space with mechanical diffusers, sprinklers, speakers, and access panels. Early coordination prevents random placement adjustments that degrade visual rhythm. Establishing alignment grids across disciplines maintains compositional order.
Key coordination parameters include:
- Minimum clearance from diffusers to prevent airflow interference
- Consistent alignment across lighting and mechanical devices
- Harmonized trim diameters and finishes
Late stage repositioning often disrupts intended hierarchy. Early integration ensures lighting remains architecturally coherent.
Preserving Visual Rhythm
When ceiling devices vary in size or alignment, the ceiling can appear cluttered. Aligning lighting with other systems produces a disciplined ceiling composition. Maintaining consistent offsets and axes across all devices reinforces spatial clarity.
This level of coordination distinguishes refined projects from merely functional ones. Precision at the ceiling plane is highly visible, even when fixtures themselves are visually discreet.
13. Circuit and Control Grouping Should Influence Layout
Zonal Logic and Scene Composition
Control strategy should inform layout from the outset. Fixtures grouped within the same functional zone should share control channels to support scene based programming. Independent dimming of perimeter and core zones enables daylight integration and flexible ambiance.
Designing layout without considering circuit grouping can result in awkward lighting transitions. Logical grouping reinforces spatial hierarchy and simplifies commissioning.
Aligning Control with Architecture
Control zones should correspond to architectural boundaries and functional areas. In open plans, subtle shifts in density or beam type can align with independent dimming zones. This integration enhances adaptability without requiring visible physical separation.
A well integrated control strategy transforms recessed lighting from static infrastructure into a responsive architectural element.
14. Design for Maintenance and Service Accessibility
Anticipating Long Term Service
Professional projects must consider serviceability from the beginning. Driver access, trim removability, and ceiling access panels influence how easily fixtures can be maintained. Specifying luminaires with modular components reduces long term disruption.
Grouping fixtures logically also supports maintenance efficiency. Coordinated access reduces labor time and preserves ceiling integrity during service operations.
Accounting for Construction Tolerances
Framing tolerances and drywall variation can introduce minor deviations in fixture placement. Layouts should allow minimal adjustment flexibility without compromising visual alignment. Adjustable trims or rotational correction mechanisms can accommodate small shifts.
Designing with tolerance awareness protects the aesthetic integrity of the finished installation. Field verification during construction helps ensure the layout remains aligned with design intent.
15. Mock Up and Photometric Verification Before Final Specification
Validating Modeled Assumptions
Even advanced modeling cannot replicate every material nuance. On site mock ups allow direct evaluation of beam behavior, scalloping, and glare conditions. Measuring vertical and horizontal illuminance with calibrated instruments verifies compliance with design targets.
Mock ups are especially valuable when dealing with textured surfaces, specialty finishes, or unconventional ceiling heights. Observing actual beam interaction prevents costly revisions after installation.
Refining Performance Before Completion
Adjustments to beam angle, output level, or setback can be made during mock up evaluation. These refinements ensure that final installation aligns with both quantitative targets and qualitative expectations. Photometric verification closes the loop between modeling and real world performance.
This step reduces risk and strengthens confidence in the final result. In high value projects, verification is not optional but essential.
Advanced Coordination and Documentation Standards
Documentation Requirements for Professional Lighting Plans
Professional documentation must communicate technical intent clearly. Reflected ceiling plans should include accurate offsets from walls, beam angles, CBCP values, mounting heights, and circuit identification. Fixture schedules must specify optical distribution and output characteristics, not only model numbers.
Clear notation prevents misinterpretation during construction. Critical alignments with architectural elements should be explicitly dimensioned. Comprehensive documentation protects design integrity throughout procurement and installation.
Photometric Software Modeling Best Practices
Accurate modeling depends on precise inputs. Reflectance values for ceiling, walls, and flooring must reflect actual material selections. Calculation grid density should be sufficient to capture localized variations in illuminance, especially near walls.
False color diagrams should be interpreted critically. Uniform visual fields do not necessarily guarantee balanced luminance perception. Reviewing numerical point by point data, including vertical plane calculations, ensures modeling results correspond to real performance.
Tolerance Planning and Field Adjustment
Field conditions often introduce variables not captured in drawings. Pre drywall walkthroughs allow confirmation of fixture positioning relative to framing. Minor adjustments can be made before ceilings are closed, preserving intended alignment.
Communication between lighting designer, contractor, and electrical team ensures that layout principles are respected during installation. Field collaboration is essential for translating documentation into built precision.
Common Professional Level Errors in Recessed Layout Design
Over reliance on Spacing Criterion remains a recurring issue. SC does not account for vertical emphasis, dark finishes, or complex sightlines. Designing solely to lumen output rather than candela distribution can produce under illuminated walls and over lit floors.
Ignoring seated sightlines frequently results in discomfort glare in living and dining environments. Confusing downlights with dedicated wall washers compromises vertical performance. Treating all recessed fixtures as interchangeable oversimplifies a system that depends on optical specificity and disciplined placement.
Final Thoughts
Recessed lighting layout is a discipline grounded in geometry, photometrics, and perceptual science. Precision in spacing, beam selection, reflectance analysis, and coordination determines whether a space feels refined or merely illuminated. Performance-driven methodology ensures that recessed lighting supports architecture rather than competing with it.
When layout decisions are based on quantitative targets and validated through modeling and field verification, recessed lighting becomes a powerful architectural instrument. The ceiling transforms from a passive surface into a controlled framework for shaping volume, hierarchy, and comfort. That level of rigor is the standard expected in professional practice, and it is achieved through disciplined layout design rather than fixture quantity alone.
