- DALS lighting performance depends on the combined effects of optics, mounting geometry, electrical design, controls, thermal conditions, and surrounding architecture.
- DALS fixture spacing must be coordinated with mounting height and beam distribution because those variables determine overlap, uniformity, contrast, and target illuminance.
- DALS driver selection, dimming compatibility, voltage drop, thermal management, and environmental exposure directly affect output stability, reliability, and long-term performance.
Lighting performance is rarely determined by a single specification line. Delivered lumens, wattage, CCT, CRI, and nominal beam angle matter, but none of them operate in isolation once a fixture is placed inside an architectural environment. The final result is produced by an interaction among optical geometry, source position, driver behavior, mounting conditions, room surfaces, electrical distribution, controls, and environmental exposure. For professionals specifying DALS products, that distinction is important because the current portfolio includes everything from edge-lit slim panels and regressed downlights to modular directional systems, low-voltage under-cabinet products, and fixtures designed for exterior or coastal conditions.
A useful way to think about performance is to separate it into three layers. Luminaire performance describes what the fixture itself produces under defined test conditions. Application performance describes what that output does after mounting height, spacing, aiming, reflectance, geometry, and task location are introduced. System performance adds drivers, dimmers, conductors, control logic, commissioning settings, environmental conditions, and long-term maintenance. A technically successful DALS lighting design requires all three layers to agree. The following 15 details are therefore not simply product-selection criteria. They are design variables that determine whether the installed system actually delivers the photometric and visual result that was intended.
1. Aperture Size, Source Regression, and Cutoff Geometry
How Aperture Geometry Changes Visual Comfort
The visible aperture is only one part of the optical system, but it has a significant effect on source brightness, cutoff, and perceived glare. In recessed DALS products, the relationship between aperture diameter, LED position, reflector depth, and trim geometry determines how readily occupants can see the luminous source from normal viewing positions. A smaller aperture can create a visually precise ceiling condition, but if substantial output is concentrated through that opening, aperture luminance can become relatively high. Conversely, a larger luminous opening may distribute light across a broader apparent area, although that does not automatically mean that high-angle glare is eliminated.
Source regression is particularly important because moving the LED or optical assembly deeper into the fixture can shield the source from oblique views. Regressed DALS downlights use this principle to reduce direct source visibility and create a quieter ceiling appearance than very shallow luminous panels. However, regression should never be evaluated in isolation. Reflector finish, source size, high-angle candela, ceiling height, occupant position, and beam concentration all affect whether a recessed fixture will actually feel comfortable in the completed space.
What Professionals Should Evaluate
The most useful data are the complete photometric distribution and the geometry of the optical chamber, not simply a marketing designation such as "low glare." Designers should review high-angle intensity, likely occupant sightlines, trim depth, reflector characteristics, and the relationship between source position and ceiling plane. In applications where occupants spend substantial time seated or where ceilings are relatively low, the lines of sight toward the luminaire become particularly important. A fixture that appears well shielded from directly beneath may still expose a bright source from farther across the room.
Professional review should also consider how aperture design affects ceiling composition. Deeply regressed fixtures can provide strong visual cutoff but may produce a more pronounced dark aperture, while luminous panels create a brighter ceiling plane. Neither approach is inherently superior. The correct choice depends on whether the design prioritizes visual quietness, ceiling brightness, diffuse ambient illumination, directional control, or a combination of these outcomes.
2. Beam Angle and Full Photometric Distribution
Why Nominal Beam Angle Is Not Enough
Beam angle is useful, but it describes only one characteristic of a fixture's output. Two DALS luminaires can both be described as having a 40-degree beam while producing substantially different center-beam intensities, field transitions, spill levels, and visual character. The nominal beam is typically defined using a relative intensity threshold, so it does not show what happens beyond that point. For accent lighting, the outer field can be just as important as the central beam because it determines overlap, edge softness, and how distinctly one illuminated object is separated from another.
Beam quality also affects how light appears on vertical surfaces. A smooth intensity decay generally produces softer transitions and more controlled scalloping, while abrupt falloff can create pronounced hot spots or visible rings. In architectural work, these differences are often more consequential than a small variation in total lumens. The designer should therefore treat nominal beam angle as a shorthand descriptor rather than a complete optical specification.
How to Interpret the Distribution in Practice
A preliminary beam diameter can be estimated using:
[D = 2H\tan(\theta/2)]
where (D) is beam diameter, (H) is throw distance, and (\theta) is nominal beam angle. This provides useful geometric intuition, but it does not calculate actual illuminance across the target plane. Full photometric data are still required because center-beam candlepower, aiming angle, field intensity, and distance all affect the delivered result.
For professional specification, the IES file should be modeled at the actual mounting height and orientation. Particular attention should be given to the beam edge, center-to-edge intensity ratio, adjacent fixture overlap, and vertical surface response. Where DALS offers multiple optics within the same family, the optic should be selected according to throw distance and visual intent rather than simply choosing the medium beam as a default.
3. Fixture Spacing and Mounting Height
The Relationship Between Spacing and Distribution
Spacing cannot be separated from mounting height because each fixture's distribution expands as the throw distance increases. A layout that produces smooth overlap at 2.5 meters may develop dark areas at a different ceiling height even when the fixture spacing remains unchanged. Likewise, a narrow-beam DALS downlight and a broad slim panel can have similar lumen outputs but require completely different center-to-center spacing. The number of fixtures alone therefore says very little about the quality of the finished lighting.
For general illumination, the concern is often uniformity across the working plane. For accent lighting, controlled contrast may be more important than uniformity. Wall lighting introduces another relationship because setback from the wall affects where the beam strikes the surface, how the upper wall is illuminated, and whether visible scallops occur. These conditions make universal rules such as "space lights half the ceiling height apart" too crude for professional work.
How Spacing Should Be Determined
The correct spacing should emerge from a photometric model that incorporates mounting height, working-plane height, surface orientation, reflectance, and the full candela distribution. Designers should evaluate average illuminance, minimum illuminance, maximum-to-minimum ratios, vertical illuminance, and any required accent ratios. These metrics should then be interpreted visually rather than treated as isolated compliance numbers.
It is also useful to model several spacing scenarios rather than optimizing only for a single average value. Slightly wider spacing may reduce connected load while still maintaining acceptable uniformity, whereas tighter spacing may improve visual consistency in critical zones. The optimal solution is often the one that balances photometric performance, ceiling coordination, energy use, and architectural rhythm rather than maximizing any single metric.
4. Lens, Diffuser, and Edge-Lit Optical Construction
Optical Mixing and Surface Uniformity

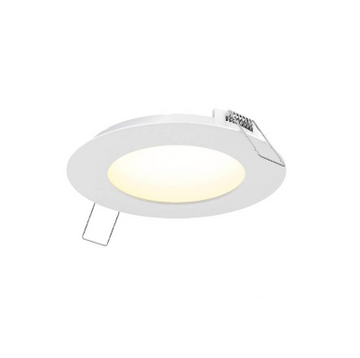

DALS slim panels and other shallow fixtures rely heavily on lenses, diffusers, light guides, and extraction features to create an even luminous surface. In an edge-lit construction, light must be transported across a relatively thin optical layer before being emitted through the visible face. The quality of that extraction determines whether the panel appears uniformly illuminated or shows brighter edges, central gradients, or LED imaging. Because shallow luminaires provide little physical distance for optical mixing, the diffuser has to perform a substantial amount of work.
More diffusion generally improves luminous uniformity and reduces the visibility of individual LED sources. However, increased scattering can also reduce transmission efficiency and alter the distribution. The optical design is therefore a compromise among surface appearance, fixture efficacy, beam spread, and glare control. A panel that looks perfectly homogeneous may not necessarily provide the same optical efficiency as a less diffused system.
Application Consequences of Lens Design
Lens characteristics become particularly important in spaces where the luminaire itself is highly visible. Kitchens, corridors, low-ceiling commercial interiors, residential spaces, and hospitality environments often place occupants within direct view of the luminous surface. Here, visible hot spots or strong luminance gradients can undermine the apparent quality of the installation even if measured illuminance is satisfactory.
Professionals should therefore look beyond terms such as "frosted lens" and consider what the complete optical system does. Relevant questions include whether the diffuser produces a comfortable luminance, how broad the resulting distribution is, how much light is lost through the optical stack, and whether the visual appearance remains consistent across the fixture family. Mockups can be especially useful when the luminaire will occupy a prominent position in the ceiling.
5. Correlated Color Temperature Selection
CCT as an Architectural Variable
Correlated color temperature affects far more than whether a space appears warm or cool. Different CCTs change how occupants perceive wood, stone, metal, paint, textiles, food, and skin tones because the spectral balance of the source changes. A 2700 K source can reinforce warm materials and intimate visual conditions, while 3500 K or 4000 K may support a more neutral or visually crisp environment. The selection should therefore be tied to the material palette and intended atmosphere rather than treated as an arbitrary preference.
DALS' use of selectable CCT on many fixture families gives designers useful flexibility during commissioning. This is especially valuable when the final interior finishes differ slightly from renderings or samples. However, selectable CCT also introduces another field variable that must be controlled. If adjacent fixtures are set differently, the resulting inconsistency can become immediately visible on white walls, ceilings, or continuous surfaces.
Commissioning and Consistency
CCT selectors should be incorporated into the project's commissioning process. The intended setting should be identified in the fixture schedule, reflected in site documentation, and checked before ceilings or millwork become difficult to access. Relying on installers to choose a setting independently can create inconsistencies that later appear to be product defects.
Designers should also consider whether different spaces genuinely require different CCTs. Excessive variation between adjacent zones can make transitions visually distracting. Where multiple CCTs are used, the relationship should be deliberate and connected to function, materiality, or time-of-day strategy rather than simply reflecting different fixture defaults.
6. Color Rendering and Spectral Quality
Why CRI Does Not Tell the Whole Story
A 90 CRI specification is a useful baseline, but it should not be treated as a complete description of color quality. CRI Ra averages performance across a limited group of test colors and can conceal weaknesses in saturated hues. Two 90 CRI sources can render red materials, skin tones, wood finishes, and merchandise differently. This becomes especially important in applications where color discrimination or material appearance is central to the design.
Advanced evaluation can include R9 as well as IES TM-30 metrics such as (R_f) and (R_g). These provide additional information about fidelity and gamut, while color vector graphics can reveal how particular hue regions are shifted or saturated. For expert-level specification, these tools are particularly useful in retail, hospitality, galleries, residential interiors, food environments, and other spaces where the light source directly affects perceived material quality.
Matching Spectral Performance to the Application
The objective is not necessarily to maximize every metric. A source with extremely high fidelity may be appropriate where accurate color evaluation is required, while a source with controlled saturation enhancement may be preferred in certain hospitality or retail applications. The correct spectral strategy depends on what the designer wants occupants to see and how faithfully materials need to be represented.
When DALS documentation does not provide every desired spectral metric, additional manufacturer data can be requested for critical applications. The decision should also consider consistency across fixture families. Mixing sources with different spectral characteristics in the same visual field can make surfaces appear different even when the nominal CCT and CRI values match.
7. Delivered Lumens, Wattage, and Efficacy
Understanding Output Beyond Wattage
Input wattage does not indicate how much useful light reaches the intended surface. Lumens describe total emitted flux, while efficacy expresses lumens per watt, but neither metric describes application efficiency on its own. A broad-distribution fixture can generate high total output while delivering relatively little light to a narrow task area. A lower-lumen directional fixture may create higher illuminance on the target because its intensity is better controlled.
This distinction matters when comparing DALS fixture families with different optical systems. A slim panel, regressed downlight, wall washer, and narrow-beam directional fixture should not be compared simply by lumens. Their output is distributed differently, and that distribution determines whether the light is useful for the intended task.
Multi-Wattage Products and Commissioning
Selectable wattage can be extremely useful when final light levels need adjustment after installation. However, changing wattage affects more than brightness. It alters connected load, driver operating conditions, energy use, and potentially the visual balance between adjacent fixtures. If one fixture is unintentionally left at a different wattage setting, the inconsistency may be noticeable even when the products are otherwise identical.
For this reason, final wattage settings should be documented. In large projects, commissioning records should indicate the selected output level by fixture type or zone. This allows future maintenance personnel to preserve the original lighting hierarchy rather than restoring fixtures to arbitrary factory defaults.
8. Driver Architecture
The Driver as a Performance Component
The LED driver is an integral part of the lighting system because it controls the electrical conditions under which the LED operates. Constant-current drivers regulate current through LED modules, while constant-voltage systems supply a fixed voltage to compatible downstream products. DALS uses different architectures across its portfolio, particularly when comparing recessed fixtures with under-cabinet and low-voltage systems. These electrical differences affect compatibility, control, system topology, and serviceability.
Driver quality can influence output stability, power factor, harmonic behavior, inrush current, dimming performance, audible noise, and long-term reliability. On a small residential circuit, some of these variables may have limited practical impact. On larger commercial or hospitality installations containing many electronic drivers, however, they can become significant enough to affect control capacity, breaker loading, and commissioning.
System-Level Driver Coordination
The driver's input voltage, output characteristics, thermal rating, control method, and LED load should be reviewed as one system. A driver that is electrically compatible but thermally stressed by its installation environment may experience reduced life. Similarly, a driver paired with an unsuitable dimmer may exhibit flicker or poor low-end behavior even though both components are individually rated for LED use.
Large fixture counts also justify reviewing inrush current and control-channel limitations. A relay or dimmer may have sufficient steady-state wattage capacity but still be unsuitable for the transient current produced when many drivers energize simultaneously. This is why professional lighting control schedules should be based on manufacturer compatibility and system data rather than nominal fixture wattage alone.
9. Dimming Method and Control Compatibility
Different Dimming Protocols Behave Differently
DALS products may use TRIAC, ELV, 0 to 10 V, or other control approaches depending on the product family and voltage configuration. These methods are not interchangeable. Forward-phase control works differently from reverse-phase ELV dimming, while 0 to 10 V systems use separate low-voltage control conductors in addition to the power circuit. The wiring method, dimmer selection, load limits, and control behavior therefore need to be coordinated before installation.
Compatibility is particularly important at low dimming levels. A fixture may operate correctly near full output but exhibit dropout, flicker, audible noise, delayed startup, or unstable behavior near the bottom of the range. These issues are frequently caused by the interaction between driver and control rather than by either component in isolation.
Evaluating the Useful Dimming Range
Professionals should distinguish between the electrical dimming range and the useful visual dimming range. Human brightness perception is nonlinear, so a luminaire operating at 10 percent electrical output does not necessarily appear to be at 10 percent brightness. The control curve, low-end trim, and driver response all influence the perceived transition.
Critical projects should be tested using the exact control hardware intended for installation. This is especially important in restaurants, residences, theaters, hospitality spaces, and other environments where low light levels are part of normal operation. A successful mockup should assess startup behavior, smoothness, minimum stable output, audible noise, and consistency among multiple fixtures on the same control zone.
10. Flicker and Temporal Light Modulation
What Creates Temporal Modulation
LEDs respond almost instantly to changes in drive current, which means fluctuations produced by the driver can become fluctuations in light output. These variations are collectively described as temporal light modulation. Depending on waveform, frequency, modulation depth, and operating condition, they can produce visible flicker or motion-related effects such as stroboscopic or phantom-array phenomena.
Dimming can intensify the issue because some control methods alter output by chopping the waveform or using pulse-width modulation. The fixture may therefore exhibit different temporal behavior at 100 percent output than it does at 20 percent. This is one reason a simple statement that a product is "flicker free" should be interpreted carefully unless the test condition and metric are known.
When Flicker Performance Requires Closer Review
Applications involving video recording, rotating machinery, rapid motion, or sensitive occupants may require more detailed TLM assessment. Metrics such as PstLM and SVM are more informative than basic flicker percentage because they address different perceptual effects. The relevant standard or metric should be chosen according to the application rather than applied mechanically.
The most important specification principle is that temporal performance belongs to the luminaire-control system. The same DALS fixture may behave differently when paired with different dimmers, control protocols, or operating levels. For sensitive projects, the final configuration should therefore be tested as a complete system.
11. Voltage Architecture and Voltage Drop
Why Low-Voltage Systems Require Careful Distribution Design

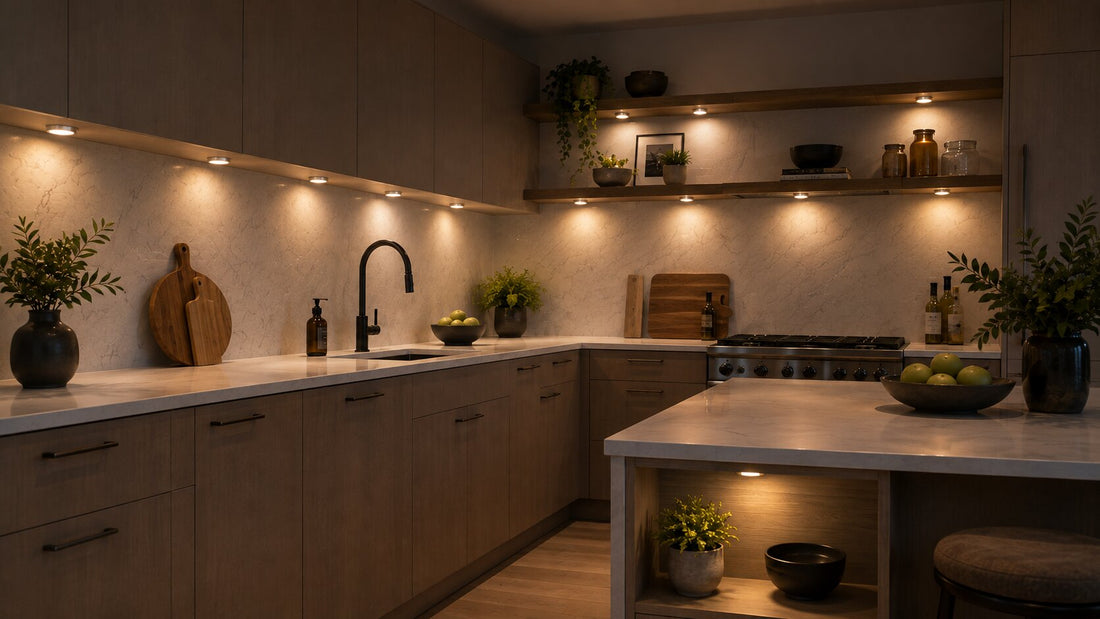

DALS under-cabinet and related systems can use 12 V or 24 V architectures, which makes voltage drop an important design consideration. In a low-voltage circuit, a relatively small absolute voltage loss can represent a significant percentage of the available supply. The basic relationship is:
[V_{drop}=IR]
where voltage loss increases with current and conductor resistance. Longer runs, smaller conductors, and higher loads therefore create greater risk of performance differences along the circuit.
A fixture at the far end of an inadequately sized run may receive less voltage than one located close to the driver. Depending on the product architecture, this can reduce output, alter dimming behavior, or create visible inconsistency. These symptoms are sometimes misdiagnosed as fixture variation when the actual cause is conductor design.
Driver Location, Wire Gauge, and Feed Topology
Voltage drop can be controlled by increasing conductor size, reducing run length, dividing loads into parallel branches, or relocating the driver closer to the fixtures. In some systems, multiple feed points may also improve uniformity. The correct approach depends on product requirements and the permissible wiring topology.
Driver capacity should also be selected with appropriate operating headroom. Loading a power supply exactly to its nominal maximum may not be desirable if the manufacturer recommends derating or if future expansion is anticipated. Low-voltage lighting should therefore be engineered as an electrical distribution system rather than treated as a collection of individual fixtures.
12. Thermal Management and Junction Temperature
Heat Flow Through the Luminaire
LED systems still generate heat, even though they are more efficient than many legacy light sources. That heat must move away from the LED junction through the circuit board, thermal interfaces, housing, and surrounding air. A simplified thermal relationship can be expressed as:
[
T_j=T_a+P\theta
]
where junction temperature depends on ambient temperature, dissipated power, and effective thermal resistance.
Higher junction temperature can influence lumen output, efficacy, color stability, and long-term degradation. Drivers and optical materials are also temperature-sensitive, so poor thermal conditions can affect the entire luminaire rather than only the LED package. Good thermal management is therefore fundamental to maintaining the performance shown in laboratory data.
Installation Conditions That Affect Cooling
The field environment can differ substantially from the conditions under which a fixture was tested. Insulation, shallow cavities, enclosed millwork, exterior solar exposure, high ambient temperatures, and clustered fixtures can all reduce the ability of the luminaire to dissipate heat. A low-profile fixture may fit physically into a constrained cavity while still experiencing an unfavorable thermal environment.
Professionals should review the manufacturer's ambient-temperature limits and installation requirements rather than assuming that any fixture can operate safely wherever it physically fits. Thermal constraints should also be coordinated with insulation and building-envelope details. The goal is to ensure that the complete installation maintains an acceptable operating temperature throughout normal use.
13. Mounting Details and Installation Tolerances
Mechanical Accuracy Affects Optical Accuracy
Cutout position, ceiling thickness, trim seating, spring-clip engagement, junction-box placement, and structural obstructions can all influence the final appearance and performance of a DALS fixture. Small deviations become particularly noticeable when luminaires are arranged in long rows or aligned with architectural features. The human eye is highly sensitive to inconsistent spacing and alignment when fixtures create a visible ceiling datum.
Directional fixtures are even more sensitive because the mechanical orientation directly affects beam placement. A small difference in tilt or rotation can shift a beam significantly at longer throw distances. If the fixture is installed slightly out of plane, the aiming range may also differ from what the designer assumed.
Coordination Before and After Installation
Ceiling coordination should therefore include more than center points. Drawings should identify cutout dimensions, cavity requirements, obstruction zones, driver access, fixture orientation, and any required aiming direction. In dense ceilings, coordination with sprinklers, diffusers, speakers, framing, and access panels should occur before penetrations are made.
Final aiming should happen after furniture, artwork, displays, or other target elements are installed whenever possible. This is a commissioning activity, not simply an installation task. The objective is to make the constructed geometry match the visual intent represented in the photometric design.
14. Surface Reflectance and Room Geometry
The Room Becomes Part of the Optical System
Light does not stop after striking the first surface. Walls, ceilings, floors, furniture, and objects reflect a portion of the incident light back into the environment. High-reflectance finishes can significantly increase interreflected illumination, while dark surfaces absorb more flux and may require greater direct output to achieve the same perceived brightness.
Reflectance alone does not describe the complete material response. Matte surfaces scatter light diffusely, while polished stone, glass, metal, and glossy finishes can produce strong directional reflections. These differences influence luminance, contrast, reflected glare, and the appearance of both the illuminated surface and the luminaire itself.
Why Illuminance Alone Can Mislead
A space can satisfy a horizontal lux target and still appear visually poor. Occupants respond strongly to luminance patterns across walls, ceilings, faces, displays, and other visible surfaces. A room with adequate work-plane illuminance but dark vertical surfaces can feel underlit, while a room with balanced wall luminance may feel brighter at a lower horizontal illuminance.
Photometric models should therefore use realistic surface reflectances rather than software defaults whenever finishes are known. Highly specular materials may also justify mockups because reflections and highlights can be difficult to predict from simplified calculation models. The professional objective is not merely to put a specified number of lux on a plane but to create an intentional luminance composition.
15. Environmental Exposure and Maintained Performance
Environmental Ratings Affect More Than Compliance
Outdoor and wet-location fixtures must resist water, contamination, temperature variation, and potentially corrosive environments. DALS offers products intended for wet locations and other demanding conditions, but the relevant rating should always be checked at the exact product level. Environmental suitability determines whether seals, finishes, electrical connections, and optical components can maintain their intended function over time.
Coastal installations introduce additional concerns because salt exposure accelerates corrosion. Temperature cycling can also stress gaskets and material interfaces. In exterior conditions, contamination can accumulate on lenses and change the emitted distribution even if the electrical system remains fully functional.
Designing for Maintained Optical Performance
Initial photometric performance is only part of the design problem. Lenses can become dirty, seals can deteriorate, optical materials can age, and corrosion can affect both thermal and electrical behavior. These changes can reduce output or alter beam quality gradually, which means the installed system may drift away from its original design intent.
Maintenance access should therefore be considered during specification. Exterior, canopy, coastal, shower, and other demanding applications should be evaluated for cleaning requirements, serviceability, drainage, environmental rating, expected exposure, and long-term material durability. The most successful lighting system is not simply one that meets its target on commissioning day. It is one that can maintain acceptable photometric, visual, and electrical performance throughout its intended service life.
Final Thoughts: Specify the Lighting System, Not Just the Luminaire
A DALS fixture can only perform as well as the system around it. Aperture geometry, beam distribution, spacing, CCT, driver selection, dimming, voltage architecture, thermal conditions, and installation details all influence the final result. For that reason, professional specification should treat lighting as a coordinated system rather than a fixture-selection exercise.
The strongest designs begin with the visual objective and work backward through the engineering needed to achieve it. Photometric data, mounting geometry, controls, electrical conditions, and environmental requirements must all align with the selected luminaire. The specification sheet defines the fixture's potential, but the quality of the completed installation determines how much of that potential is actually realized.
