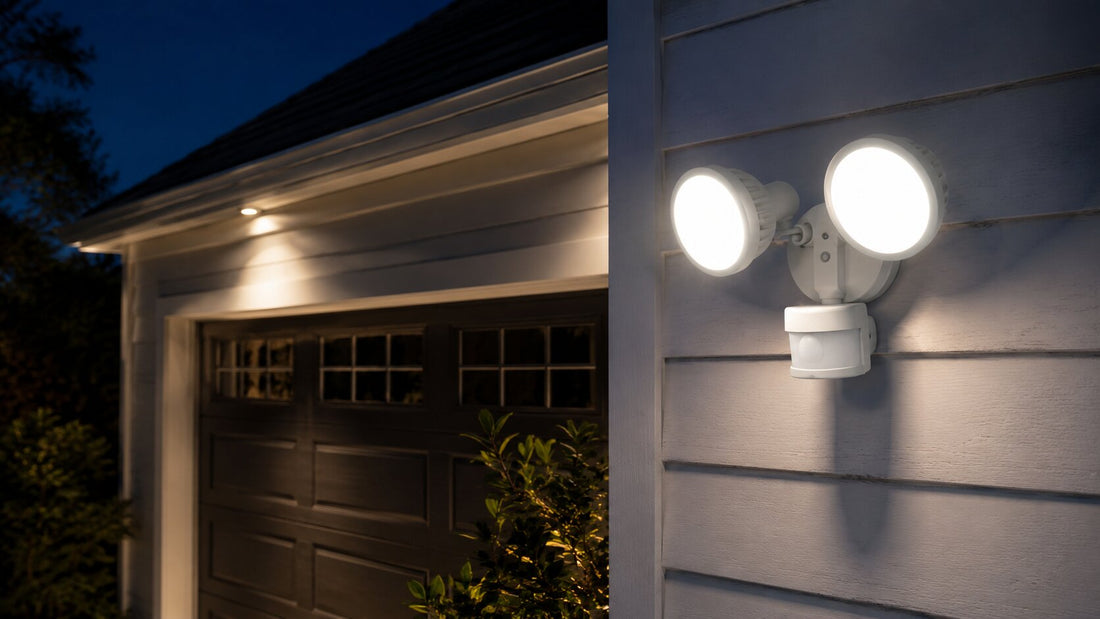

13 Technical Specs That Define LED Flood Light Efficiency

• LED flood light efficiency depends on complete luminaire-level efficacy, which includes driver conversion losses, thermal droop, and optical transmission losses.
• LED flood light luminous output declines as junction temperature rises, making thermal management critical for long-term efficiency and reliability.
• LED flood light usable illumination is determined by beam distribution control, optical transmission efficiency, and spectral design, not total lumens alone.

LED flood light efficiency is often reduced to a single lm/W number on a datasheet. In practice, that number captures only a fraction of what determines real-world performance. True efficiency is not a static measurement taken under ideal laboratory conditions. It is a dynamic outcome shaped by electrical conversion, thermal management, optical precision, spectral design, and long-term degradation behavior.

For professionals specifying or designing flood lighting systems, efficiency must be evaluated across the entire energy transformation chain. Electrical input power is converted, regulated, transmitted, emitted, shaped, and delivered. At every stage, losses occur. Understanding these losses is essential for evaluating not just initial performance, but sustained delivered lumens per kilowatt hour over the life of the installation.

The thirteen specifications below define LED flood light efficiency in technical terms. Together, they establish a framework for evaluating luminaire performance beyond marketing metrics.

Technical Definition of Efficiency in LED Flood Lighting

Defining Efficiency Across System Boundaries

Efficiency in LED flood lighting must first be defined in terms of system boundaries. At the narrowest boundary, efficiency may refer to LED package efficacy measured under controlled laboratory conditions. At the widest boundary, it describes the ratio of delivered lumens on the task plane to real power drawn from the electrical supply. These are fundamentally different evaluations.

• A complete efficiency chain includes multiple stages:
• AC input power at the supply terminals
• Driver conversion to regulated DC output
• Electrical delivery to the LED array
• Radiant emission at the semiconductor junction
• Photometric conversion through phosphor layers
• Optical transmission through secondary lenses and covers
• Environmental and geometric losses before reaching the target surface

Each stage introduces quantifiable losses. Only by examining the entire cascade can true luminaire efficiency be assessed.

Why Published lm per W Is Insufficient

Published luminaire efficacy values often reflect optimized test conditions. LM 79 photometric testing is conducted under stabilized thermal equilibrium and nominal voltage. Real installations introduce elevated ambient temperatures, voltage fluctuation, dirt accumulation, and thermal stacking common in large-scale outdoor flood lighting environments. These variables shift performance away from laboratory benchmarks.

Furthermore, initial lm per W does not account for performance decay. Lumen depreciation, driver degradation, and optical contamination alter efficiency over time. Professional evaluation requires modeling delivered lumen hours per kilowatt hour across the intended service life rather than relying on initial efficacy alone.

1. Luminaire-Level Efficacy (lm/W)

Luminaire-level efficacy is the ratio of total luminous flux emitted by the complete fixture to total electrical input power. This metric includes all internal losses and is fundamentally different from LED package efficacy.

Why Chip Efficacy Is Irrelevant in Isolation

LED manufacturers often promote high package efficacy values measured at 25°C under controlled conditions. Once integrated into a floodlight, performance is reduced by:

• Driver conversion inefficiency
• Thermal droop at operating junction temperature
• Optical transmission losses
• Electrical resistive losses

A chip rated at 200 lm/W may produce a luminaire delivering 135–155 lm/W depending on system design and real-world flood lighting configuration requirements.

Verification Through LM-79 Testing

LM-79 photometric testing measures absolute luminaire performance. It accounts for:

• Stabilized thermal conditions
• Rated voltage input
• Total luminous flux output
• Spatial distribution

However, laboratory validation is only the baseline. Field conditions such as high ambient temperature, enclosure effects, and dust accumulation further influence real-world efficacy.

True evaluation requires interpreting LM-79 data within expected operating environments.

2. Driver Conversion Efficiency

The driver is the first major energy transformation stage in a floodlight. It converts AC line voltage to regulated DC current for the LED array.

Electrical Losses at the Driver Stage

Driver inefficiency directly reduces luminaire-level efficacy. If a driver operates at 92% efficiency, 8% of input power is lost as heat before reaching the LEDs.

Critical performance factors include:

• Full-load efficiency
• Partial-load efficiency
• Efficiency across voltage input range
• Standby power consumption
• Thermal behavior under continuous load

Partial Load Performance Matters

Many floodlights operate under dimming or adaptive control. Driver efficiency curves are not linear. Some LED drivers exhibit reduced conversion efficiency at lower load conditions, a behavior commonly documented in LED driver engineering literature.

This creates a trade-off:

• Lower LED current reduces junction temperature
• Reduced junction temperature improves LED efficacy
• But driver conversion efficiency may decline

The net efficiency outcome depends on driver architecture and control strategy.

3. Power Factor (PF)

Power factor represents the ratio of real power to apparent power. While it does not change luminous output directly, it affects system-level electrical efficiency.

Infrastructure Impact of Low PF

Low power factor increases apparent current draw. This results in:

• Higher conductor losses
• Increased transformer loading
• Elevated distribution system heating
• Reduced upstream efficiency

For large flood lighting arrays, these infrastructure losses are measurable and significant.

Professional Benchmarks

Professional floodlights typically maintain:

• PF > 0.90 minimum
• PF > 0.95 in high-performance applications

In utility-regulated environments, low PF may also trigger penalties or compliance issues.

While PF does not influence photometric output, it is part of total electrical efficiency.

4. Total Harmonic Distortion (THD)

Switching drivers introduce waveform distortion into the electrical system. Total harmonic distortion quantifies this non-linear current behavior.

Why THD Matters

High harmonic distortion introduces:

• Additional resistive heating
• Neutral conductor overload
• Transformer inefficiencies
• Voltage instability

In multi-fixture installations, harmonic stacking amplifies these effects.

Performance Targets

Professional-grade floodlights should maintain:

• THD < 20% for standard installations
• THD < 10% for large commercial or stadium systems

Although THD does not reduce lumen output directly, it reduces infrastructure efficiency and system reliability.

5. Thermal Resistance and Junction Temperature Control

Thermal performance is one of the most critical determinants of LED efficiency and longevity.

The Thermal Path

Heat flows from the LED junction to ambient air through multiple resistive layers:

• Junction-to-case resistance
• Case-to-interface material resistance
• Interface-to-heat sink resistance
• Heat sink-to-ambient convection resistance

Each layer contributes to total junction temperature rise.

Thermal Droop and Efficiency Loss

As junction temperature increases:

• Luminous flux decreases
• Forward voltage shifts
• Phosphor degradation accelerates
• Lumen depreciation accelerates

Typical LEDs lose several percent of output for each 10°C rise above nominal operating conditions.

Floodlights operating in high ambient environments or enclosed housings require optimized heat sink design, proper airflow modeling, and high-conductivity materials to preserve efficiency.

6. Lumen Maintenance (L70, L80, L90)

Initial output is only part of the efficiency equation. Lumen maintenance describes how performance changes over time.

LM-80 and TM-21 Interpretation

LM-80 testing measures LED lumen depreciation under controlled temperature conditions. TM-21 extrapolation projects long-term performance.

Important evaluation parameters include:

• Total LM-80 test duration
• Test case temperature
• Data sampling intervals
• Projection confidence levels

Short LM-80 test durations produce less reliable TM-21 projections.

Lifecycle Efficiency Impact

Consider two floodlights:

• One rated L90 at 60,000 hours
• One rated L70 at 60,000 hours

Over ten years, the cumulative lumen-hours delivered by the L90 product will be significantly higher.

Lifecycle efficiency must incorporate:

• Lumen maintenance curve
• Annual operating hours
• Environmental depreciation

Efficiency is not a momentary measurement. It is cumulative.

7. Optical Transmission Efficiency

Optical transmission efficiency determines how much of the luminous flux generated by the LED array actually exits the luminaire. Every optical interface introduces loss through reflection, absorption, or scattering.

Transmission Loss Mechanisms

Floodlights typically include:

• Primary LED encapsulation
• Secondary lenses or reflectors
• Protective covers, often glass or polycarbonate
• Gaskets and seals that may influence internal reflections

Each optical layer reduces total transmission. Even high-quality materials rarely exceed 90 to 92 percent transmission across all interfaces.

Loss contributors include:

• Fresnel reflections at air-material boundaries
• Bulk absorption within lens material
• Surface scattering due to texture or contamination
• Aging effects such as UV yellowing

A lens system with 88 percent total transmission effectively reduces luminaire efficacy by 12 percent before light leaves the fixture. This is a direct and measurable efficiency penalty.

Long-Term Optical Stability

Optical efficiency must be evaluated over time. Environmental exposure can reduce transmission due to:

• UV degradation of polymers
• Surface pitting in coastal or industrial atmospheres
• Dirt accumulation on external surfaces

Professional floodlight design accounts for:

• Material UV stabilization
• Protective coatings
• Sealed optical chambers
• Cleanability and maintenance accessibility

Transmission efficiency is not static. It is a lifecycle parameter that directly influences sustained luminaire performance.

8. Beam Distribution and Optical Utilization

Floodlights are directional luminaires designed to illuminate specific surfaces or areas. Total lumens are meaningless if the beam does not align with the application geometry.

Distribution Efficiency Versus Raw Output

Optical utilization efficiency refers to how effectively emitted lumens reach the intended target plane.

Critical parameters include:

• Beam angle precision
• Center beam candlepower
• Field uniformity
• Symmetric versus asymmetric distribution
• Cutoff characteristics

A floodlight with excessive spill light wastes energy outside the task area. In sports or facade applications, improperly controlled beams can result in:

• Glare
• Light trespass
• Reduced target illuminance
• Increased total energy demand

Optimized beam shaping often allows lower total lumen output while achieving higher effective illuminance.

Application-Specific Optical Engineering

Different applications demand different optical strategies:

• Narrow beam flood for high mast lighting
• Wide flood for area coverage
• Asymmetric beam for facade grazing
• Precision distribution for sports fields

Effective optical utilization enhances efficiency by maximizing useful lumens rather than maximizing total lumens.

9. Spectral Power Distribution and Correlated Color Temperature (CCT)

Spectral design directly influences luminous efficacy in modern diode-based lighting technologies. The phosphor conversion process determines how efficiently electrical energy becomes visible light.

Phosphor Conversion and Efficiency Trade-Offs

Higher correlated color temperatures, such as 5000 K or 5700 K, typically achieve slightly higher lm/W values because:

• Less red phosphor is required
• Conversion losses are lower
• Blue pump efficiency remains high

Lower CCT values, such as 3000 K, require additional red phosphor content. This introduces:

• Increased conversion inefficiency
• Slight reduction in luminous efficacy
• Potential increase in thermal load

The energy penalty between 3000 K and 5000 K configurations can be measurable in high-output floodlights.

Spectral Design and Application Needs

CCT selection must balance:

• Visual comfort
• Regulatory compliance
• Wildlife impact
• Energy performance

In many professional installations, spectral decisions are not aesthetic alone. They influence quantifiable energy performance and must be considered within the broader efficiency framework.

10. Color Rendering Index (CRI)

Color Rendering Index measures how accurately a light source reproduces colors compared to a reference source. Higher CRI requires broader spectral output.

Efficiency Implications of High CRI

Achieving CRI values above 90 typically requires:

• Additional red phosphor layers
• Extended spectral coverage
• Reduced luminous efficacy

High CRI configurations often deliver lower lm/W compared to CRI 70 or CRI 80 products.

Application-Based Optimization

In industrial yard or security flood lighting, moderate CRI may be acceptable and more energy efficient. In broadcast sports or architectural highlighting, higher CRI may justify the energy penalty.

CRI is not merely a quality parameter. It is a measurable efficiency trade-off that must align with application requirements.

11. Surge Protection Rating

Outdoor floodlights are exposed to voltage transients caused by lightning and switching events. Surge protection rating indicates resilience against these disturbances.

Electrical Stress and Efficiency Loss

Insufficient surge protection can lead to:

• Immediate driver failure
• Progressive degradation of electronic components
• Reduced driver conversion efficiency
• Instability in constant current regulation

Repeated transient exposure can weaken driver components even if catastrophic failure does not occur. Over time, this can reduce electrical efficiency and output stability.

Professional Surge Standards

Floodlights for professional outdoor applications commonly specify:

• 6 kV minimum surge protection
• 10 kV or higher for critical installations
• Replaceable surge protection modules in high-risk regions

Electrical robustness preserves long-term efficiency and reduces unexpected performance degradation.

12. Ingress Protection (IP Rating)

Ingress protection defines resistance to dust and moisture intrusion. Environmental contamination affects both optical and thermal performance in waterproof exterior lighting installations.

Efficiency Impact of Contamination

Dust and moisture inside the luminaire can:

• Reduce optical transmission
• Corrode electrical contacts
• Degrade thermal interface materials
• Increase internal temperature

IP66 or higher is standard for professional outdoor floodlights. Proper sealing preserves internal cleanliness and protects efficiency over time.

Seal Integrity and Aging

Seal materials must withstand:

• Thermal cycling
• UV exposure
• Mechanical stress
• Humidity variation

Failure of sealing systems leads to gradual efficiency decline rather than immediate failure. Environmental protection is therefore directly tied to sustained performance.

13. Dimming and Control Efficiency

Control integration significantly affects real-world energy performance. Floodlights rarely operate at full output continuously in optimized installations.

Electrical and Thermal Interaction During Dimming

When drive current is reduced:

• Electrical power consumption decreases
• Junction temperature drops
• LED efficacy may increase slightly

However, driver conversion efficiency may decline at very low load conditions. The overall efficiency result depends on driver design and dimming range.

Control Strategies That Improve Lifecycle Efficiency

Professional control strategies include:

• Scheduled dimming
• Occupancy-based adjustment
• Adaptive output based on daylight contribution
• Networked central management

Energy savings achieved through control integration often exceed gains achievable through marginal increases in luminaire efficacy alone.

Control compatibility is therefore a core efficiency parameter, not a secondary feature.

Closing Synthesis: How the 13 Specifications Interact

The thirteen specifications discussed are not independent variables. They form an interconnected system.

• Electrical conversion efficiency influences thermal load.
• Thermal load influences lumen maintenance.
• Optical transmission determines delivered lumens.
• Spectral design affects both efficacy and thermal behavior.
• Environmental sealing preserves optical and electrical integrity.
• Control strategies influence operating temperature and lifecycle energy consumption.

Efficiency in LED flood lighting is therefore:

• Electrical
• Thermal
• Optical
• Spectral
• Environmental
• Operational

True performance is defined by delivered lumen-hours per kilowatt-hour across the service life.

Final Thoughts

LED flood light efficiency is not defined by a single specification or headline lm/W value. It is the compounded result of thirteen interrelated technical parameters that govern how electrical energy is converted, managed, shaped, protected, and sustained over time.

Professionals evaluating flood lighting systems must look beyond initial output and consider lifecycle performance across professional-grade outdoor lighting applications. Thermal stability, driver quality, optical discipline, spectral optimization, environmental resilience, and intelligent control integration collectively determine real-world efficiency.

When these thirteen specifications are engineered cohesively and validated rigorously, LED flood lights deliver reliable, application-aligned illumination with optimized energy performance throughout their operational lifespan.

Why BuyRite Electric Is Your Trusted Partner for High-Performance Lighting Projects

At BuyRite Electric, we understand that specifying LED flood lighting is not just about selecting a fixture with an attractive lm per W rating. It is about sourcing products that meet rigorous performance expectations across electrical efficiency, thermal management, optical control, and long-term reliability. The thirteen technical specifications outlined in this article are not theoretical considerations. They are real-world criteria that determine whether a lighting system performs as intended over time. Since 1986, we have served electrical professionals who demand products that are code-compliant, durable, and engineered for sustained performance in commercial and industrial environments.

We offer a curated selection of lighting and electrical solutions from trusted manufacturers that meet the standards professionals expect. Whether you are a contractor planning a large-scale exterior lighting installation or a facilities manager upgrading site illumination, we help ensure you are selecting products aligned with efficiency, safety, and application requirements. Every product we offer is backed by fast shipping, dependable service, and our 110% low price guarantee. As the industry's trusted online source for lighting, electrical supplies, and tools, we are committed to helping you get the job done right.

If you are evaluating LED flood lights or related electrical components for your next project, we invite you to explore our full product line on our website. Our knowledgeable team is available to assist with product selection, confirm code compliance, and ensure compatibility with your specific application. Contact BuyRite Electric today and let us support your project with reliable solutions that deliver performance you can trust.
