10 Staircase Design Ideas Using LED Step Lights

• LED step lighting improves stair safety by providing uniform tread illumination with controlled beam angles that minimize glare and visual fatigue.
• Effective LED step lighting design requires proper voltage drop calculations, driver accessibility, and code compliant emergency circuit integration.
• Long lasting LED step lighting systems depend on coordinated structural recess detailing, adequate heat dissipation, and maintenance access planning.

Modern staircase design demands more than visual impact. In high performance residential, commercial, and hospitality environments, staircases function as critical circulation pathways that must balance safety, code compliance, durability, and architectural expression. LED step lights have become one of the most effective tools for achieving that balance. When integrated correctly, they enhance tread visibility, reinforce spatial hierarchy, and elevate material detailing without introducing glare or visual clutter.

The real challenge lies not in selecting a fixture, but in engineering a lighting system that works cohesively with the stair’s structure, finishes, and electrical infrastructure. Optics, driver placement, voltage management, thermal dissipation, and maintenance access all influence long term performance. The following ten staircase design ideas move beyond surface aesthetics and examine LED step lighting from a technical and integration focused perspective, providing approaches suited for professionals who expect precision and reliability in every detail.

Executive Positioning: Staircase Lighting as Architectural Infrastructure

From Decorative Feature to Performance System

Staircase lighting occupies a unique position within the built environment. It is both a life safety component and an architectural statement, and those two responsibilities must coexist without compromise. In advanced projects, LED step lights are not appended to the staircase after design completion. They are integrated into the conceptual and technical development of the stair itself. The geometry of the tread, the thickness of the riser, and the depth of the stringer often evolve in response to lighting requirements.

When properly executed, step lighting supports intuitive movement through space. It clarifies depth perception, reinforces vertical rhythm, and enhances material articulation. Poorly executed systems, by contrast, introduce glare, uneven luminance, and visual noise. For professional clients, the expectation is clear. The lighting must function as engineered infrastructure embedded within the architectural language, not as decorative hardware competing with it.

Defining Performance Benchmarks

Any credible LED step lighting system begins with quantifiable criteria. Minimum illuminance levels at the tread surface must comply with applicable building and life safety codes, including guidance commonly referenced from the International Building Code (IBC) and NFPA standards, though those minimums should not be treated as optimal design targets. Uniformity, luminance ratios, and visual comfort metrics are equally important. Overly bright risers combined with dim treads can impair depth perception, especially in transitional lighting conditions.

Performance benchmarks should include:

• Target average illuminance per tread
• Minimum to average uniformity ratio
• Maximum allowable luminance at primary sightlines
• CCT consistency relative to adjacent zones
• Thermal operating range within enclosure

By formalizing these metrics during design development, teams establish objective standards against which submittals and mock ups can be evaluated. This approach reduces subjective debate and anchors decision making in performance data.

Technical Foundations

Photometric Design for Stair Illumination

Photometric planning for staircases must account for geometry that changes vertically and horizontally. Each tread presents a horizontal plane that requires sufficient illumination for safe footing, while each riser introduces a vertical surface that can reflect light toward the user’s eye. The balance between these planes determines perceived brightness and visual comfort. If risers are too luminous relative to treads, glare may occur during descent.

Design teams should evaluate:

• Horizontal illuminance at the front third of the tread
• Vertical illuminance on risers
• Luminance contrast between adjacent treads
• Distribution curve alignment with stair angle

In many cases, asymmetric optics provide the most controlled solution for precision directional lighting applications. They direct light downward at a shallow angle, reducing the probability of direct source visibility. Photometric software should be used to simulate sightlines from both ascending and descending perspectives. A design that appears balanced in plan view can reveal glare issues when modeled in section.

Spectral quality also matters. High CRI values ensure material fidelity, particularly for wood or natural stone. TM 30 metrics provide deeper insight into color rendering accuracy and saturation shifts. While stair lighting may operate at lower lumen outputs than general lighting, its proximity to surfaces makes color quality highly perceptible.

Optical Engineering and Glare Mitigation

Optical engineering is often the most decisive factor in achieving a refined installation within advanced architectural lighting systems. Stair lighting typically operates at low mounting heights relative to eye level, which increases the risk of direct view. Shielding angles must be calculated carefully. A fixture recessed too shallowly can expose the LED board at common sightlines.

Several strategies improve glare control:

• Deep set housings with internal baffles
• Micro prismatic lenses that redirect high angle light
• Matte interior finishes to reduce specular reflections
• Narrow vertical beam control paired with wider horizontal spread

Diffuser selection should be informed by diode density. A low density strip paired with a thin opal cover may produce visible segmentation. Increasing diode density or selecting a higher diffusion grade reduces this effect but may decrease overall efficiency. These tradeoffs must be evaluated holistically rather than in isolation.

Surface reflectance of adjacent materials significantly influences perceived brightness. Polished stone or lacquered finishes can amplify glare, while matte surfaces soften it. Designers should review finish schedules concurrently with lighting specifications to ensure compatibility.

Electrical Architecture and Driver Strategy

Electrical planning for LED step lighting requires early coordination with power distribution and control systems. Low voltage systems, typically 12V or 24V, are common due to safety and flexibility in modern LED lighting installations. However, long stair runs can introduce measurable voltage drop. Without appropriate conductor sizing and circuit segmentation, luminance may decrease progressively along the run.

Driver placement should balance accessibility and performance. Remote drivers located in accessible service areas simplify maintenance but require longer cable runs. Distributed drivers reduce voltage drop but complicate service access if embedded within finished assemblies. A comprehensive electrical layout should identify:

• Circuit segmentation per stair flight
• Conductor gauge based on load and distance
• Dimming protocol compatibility
• Emergency power integration
• Labeling and documentation standards

Control integration must also be considered. In projects with centralized lighting control systems, step lighting should be zoned logically with adjacent circulation lighting. Improper zoning can create abrupt transitions between stair flights and corridors, diminishing visual continuity.

Mechanical Coordination and Structural Detailing

Mechanical integration is inseparable from lighting performance. Recess dimensions must align precisely with fixture tolerances. In concrete stairs, formwork should incorporate recess pockets sized for both fixture housing and thermal clearance. In wood assemblies, routing must consider expansion and contraction across seasonal humidity changes.

Coordination tasks commonly include:

• Verifying recess depth relative to structural reinforcement
• Allowing expansion gaps for aluminum channels
• Planning moisture barriers in exterior applications
• Ensuring removable trim for driver access
• Aligning fixture centers with tread geometry

Thermal management deserves particular attention. LEDs are sensitive to elevated temperatures, and enclosed cavities can trap heat. Aluminum extrusions often serve as heat sinks, but their effectiveness depends on contact area and airflow. Adhesives or sealants that insulate the channel from surrounding material can reduce thermal dissipation. Detailed sections and enlarged drawings should be reviewed collaboratively by lighting designers and fabricators.

With these coordination principles in place, the focus shifts to application. The following ten strategies illustrate how LED step lighting can be integrated across diverse architectural contexts.

1. Fully Recessed Riser-Integrated Linear Wash System

This strategy embeds a linear LED fixture directly into the riser face, typically positioned near the upper third of the riser to project a controlled wash onto the tread below. The goal is to deliver horizontal illuminance while shielding the source from direct view during both ascent and descent. Asymmetric optics are usually required to shape the beam downward and minimize vertical spill that can create glare.

From a detailing standpoint, this solution demands precise recess dimensions and coordination with stair fabrication drawings. The riser cavity must allow adequate depth for housing, wiring, and thermal dissipation. Designers should evaluate:

• Recess depth relative to optic geometry
• Shielding angle to avoid direct diode visibility
• Driver placement strategy to ensure accessibility
• Uniformity modeling across multi-flight stairs

When executed correctly, this system produces consistent tread illumination while maintaining a clean architectural appearance.

2. Cantilevered Tread Underside Continuous Glow

In floating stair assemblies, LED strips concealed beneath each cantilevered tread create the illusion of levitation. The luminous line typically runs along the rear or center underside of the tread, projecting a soft halo onto the wall or stringer behind it. This technique enhances depth perception and reinforces the sculptural quality of the stair.

Technical execution requires attention to heat management and diffusion. The LED strip should be mounted within an aluminum extrusion that acts as a heat sink. Diffusers must prevent visible pixelation. Key considerations include:

• Diode density relative to diffuser thickness
• Voltage drop across long horizontal runs
• Concealed power routing within steel spines
• Alignment consistency across all treads

This approach is most effective in contemporary interiors where structural minimalism is emphasized.

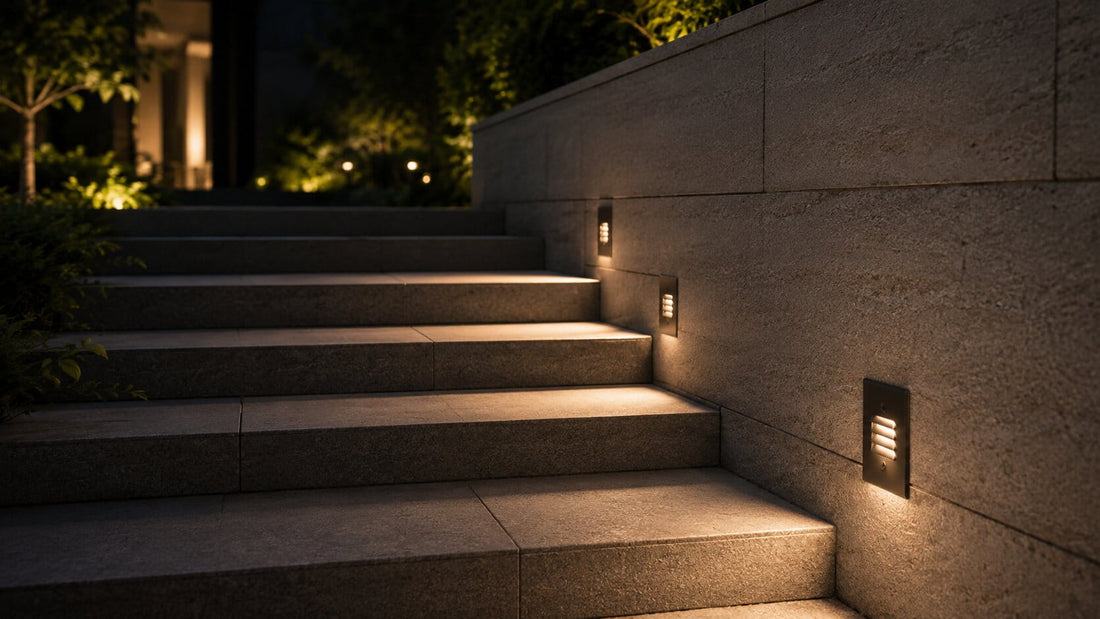

3. Sidewall Recessed Marker Array with Controlled Beam Spread

Rather than lighting from the stair itself, this strategy uses recessed wall luminaires mounted along the adjacent wall. Each fixture emits a focused beam that grazes across one or two treads, depending on spacing and optic selection. The effect is understated yet effective for wayfinding.

Beam geometry determines spacing intervals. Narrow beams create concentrated pools of light, while wider beams increase coverage but may introduce scalloping. Professional execution includes:

• Consistent mounting height relative to tread surface
• Anti-glare louver or deep set trim selection
• Coordination with wall framing modules
• Photometric spacing calculations for uniformity

This solution works particularly well in gallery spaces, hospitality corridors, and institutional stairwells where visual restraint is desired.

4. Continuous Handrail-Integrated LED Channel

Integrating LED modules into the handrail combines tactile guidance with illumination. The rail extrusion houses the LED board and optics, directing light downward onto the tread path. This approach ensures that illumination follows the natural hand path along the stair.

Engineering complexity lies in maintaining code compliance for graspability while incorporating optical shielding. Design teams must coordinate:

• Extrusion geometry to preserve ergonomic profile
• Downward aiming angle between 30° and 45°
• Wiring pathways through mounting brackets
• Modular segmentation for maintenance access

This strategy is particularly effective in commercial and institutional applications where robustness and consistency are priorities.

5. Stair Nose Embedded Micro-Profile Lighting

Embedding LED lighting directly into the stair nosing provides clear edge definition and enhances tread visibility without illuminating the entire surface. Aluminum nosing profiles are engineered to contain micro LED boards and protective diffusers.

Performance hinges on precision manufacturing. Designers must evaluate:

• Slip resistance compliance
• Impact resistance in high traffic environments
• Thermal dissipation in slim profiles
• Exterior corrosion resistance if applicable

This method delivers crisp linear articulation and is often favored in high-end retail and hospitality projects where refined detailing is paramount.

6. Routed Tread Slot Linear Integration

This technique involves routing a linear channel directly into the tread surface itself. The LED strip sits flush within the slot, typically positioned slightly behind the leading edge. The aesthetic result is highly integrated and minimal.

Because the channel depth is shallow, optical control must rely on high diode density and quality diffusion. Fabrication coordination is essential. Critical aspects include:

• Wood expansion allowances
• Flush alignment to prevent trip hazards
• Adhesive compatibility under thermal cycling
• Channel anchoring within stone or composite materials

This approach requires early planning and tight tolerances to avoid performance compromise.

7. Edge-Lit Laminated Glass Tread Illumination

In glass staircases, LEDs inject light into the laminated glass edge, allowing internal reflection to disperse illumination across the surface. Frosted interlayers or etched treatments control light scatter and prevent concentrated hotspots.

Structural and optical coordination must occur simultaneously. Designers should assess:

• Optical coupling efficiency between LED and glass
• Light attenuation across tread width
• Structural reinforcement compatibility
• Cleaning and maintenance protocols

When properly engineered, this strategy produces a luminous plane effect that enhances transparency and material expression.

8. Exterior Hardscape Integrated Step Lighting

Outdoor staircases require embedded fixtures rated for high moisture exposure and mechanical stress. LED modules are often recessed into stone, concrete, or masonry steps with protective housings and sealed lenses.

Environmental resilience is critical. Specifications should address:

• Minimum IP67 rating
• Drainage channels and weep paths
• Freeze-thaw expansion allowances
• Corrosion-resistant materials

Glare control becomes even more important outdoors due to low ambient light conditions. Shielding angles must prevent direct view of the source while ensuring safe tread illumination.

9. Programmable Sequential Step Activation Systems

Sequential activation systems illuminate steps progressively in response to user movement. This dynamic approach enhances wayfinding and creates an experiential layer within the stair environment.

System architecture is more complex than static lighting. It typically includes motion sensors, addressable controllers, and programmable logic. Design considerations include:

• PIR versus microwave sensor selection
• DMX or addressable control protocol
• Emergency override wiring
• Calibration of fade timing and sequence length

Proper commissioning is essential to avoid erratic activation or inconsistent illumination levels.

10. Concealed Indirect Shadow-Line Step Lighting

This strategy hides the LED source entirely, allowing reflected light to illuminate the tread surface. The fixture may be concealed within a small reveal above or beneath the tread, producing a soft wash without visible hardware.

Because illumination is indirect, reflectance values of adjacent materials become critical. Designers must model:

• Distance between source and reflective surface
• Required output to achieve minimum tread illuminance
• Surface albedo of surrounding finishes
• Uniformity across multi-flight stairs

This approach is favored in refined architectural settings where subtlety and visual calm are primary design objectives.

Specification and Procurement Strategy

Fixture Selection Criteria

Professional procurement begins with performance validation rather than aesthetic preference. Lumen output per linear foot must correspond to photometric calculations performed during design development. IP ratings should match environmental conditions, and driver efficiency must be verified through manufacturer data. Long term lumen maintenance metrics such as L70 or L90 provide insight into expected performance over time in energy-efficient LED lighting systems.

Additional criteria often include:

• CRI and spectral consistency across batches
• Dimming compatibility with specified control systems
• Housing material durability and finish stability
• Warranty coverage and replacement policies
• Availability of spare parts and driver modules

Submittal review should confirm that optical distributions match those modeled in photometric studies. Apparent equivalency in lumen output does not guarantee equivalent glare control or beam shaping.

Shop Drawing Coordination Checklist

Comprehensive shop drawings minimize ambiguity during installation. Mounting heights, recess dimensions, and channel tolerances must be documented precisely. Driver locations should be identified with clear access provisions. Emergency circuit integration requires explicit notation to ensure compliance with life safety requirements.

Key coordination points typically include:

• Alignment between stair fabrication details and lighting recesses
• Conductor routing paths relative to structural reinforcement
• Junction box placement for accessibility
• Confirmation of dimming protocol compatibility

Early review sessions involving lighting designers, architects, and contractors reduce the risk of misalignment between trades. Documentation should be detailed enough to prevent field improvisation that could compromise performance.

Mock Up and Commissioning Protocol

Mock ups provide an opportunity to validate both photometric and aesthetic outcomes. On site measurements should confirm average and minimum illuminance values at representative treads. Glare assessment should be performed from multiple sightlines, including ascending and descending positions. Adjustments to aiming or output can often be made before full installation proceeds.

Commissioning extends beyond initial measurements. Dimming curves must be calibrated to align with adjacent lighting zones. Sensor activated systems require sensitivity tuning to avoid false triggering. Emergency functionality must be tested under simulated power loss conditions. Comprehensive commissioning documentation supports long term operational reliability.

Common Technical Failures in LED Stair Lighting Projects

Even well intentioned projects can encounter failures if coordination is incomplete. Diode spotting due to inadequate diffusion can create distracting visual artifacts. Excessive luminance contrast between treads and risers may cause glare or misperception of depth in poorly balanced LED step lighting systems. Voltage drop across long low voltage runs can produce noticeable brightness gradients.

Additional recurring issues include:

• Inaccessible drivers embedded within finished assemblies
• Moisture intrusion in exterior applications
• Thermal buildup in enclosed riser cavities
• Inconsistent CCT relative to adjacent spaces

Mitigating these risks requires early modeling, detailed documentation, and disciplined field verification. Failure to address them can undermine both safety and architectural quality.

Integration with Overall Lighting and Electrical Systems

Stair lighting should be integrated within the broader lighting hierarchy of the building. Overhead downlights, wall washers, and daylight penetration influence perceived brightness and contrast. Zoning should reflect circulation patterns and emergency egress requirements. Load distribution across panels must consider redundancy and maintenance access.

Control systems should interface logically with building management platforms where applicable. Centralized monitoring can track energy consumption and identify driver failures. Seamless integration ensures that the staircase functions as a coherent element of the lighting strategy rather than an isolated feature.

Maintenance Planning and Lifecycle Engineering

Long term performance depends on accessible components and modular design. Drivers should be located in serviceable areas, and channels should allow removal without damaging adjacent finishes. Cleaning procedures must be compatible with diffuser materials to prevent surface degradation. Lumen depreciation should be anticipated in maintenance planning to maintain consistent brightness over time.

Facilities documentation should include circuit maps, driver locations, and replacement part specifications. Clear handover materials reduce downtime and simplify future upgrades. A staircase lighting system designed with lifecycle engineering in mind preserves safety, visual integrity, and client confidence throughout the building’s operational lifespan.

To Conclude

LED step lighting represents a convergence of architectural precision and engineering discipline. It demands rigorous photometric analysis, coordinated detailing, and thoughtful electrical planning. When treated as integrated infrastructure, step lighting enhances circulation, reinforces spatial hierarchy, and elevates material expression.

For professional teams and discerning clients, the value lies in execution. Performance metrics, optical control, mechanical coordination, and lifecycle planning transform LED step lighting from a simple fixture selection into a comprehensive architectural system. The staircase then becomes not only a functional pathway but a carefully engineered luminous environment defined by clarity, restraint, and durability.
