- LED well lights deliver the most effective results when deployed in structured lighting patterns that define vertical planes and establish clear spatial hierarchy.
- Proper LED well light beam selection and calculated spacing prevent scalloping, minimize glare, and ensure balanced vertical illumination on architectural surfaces.
- Long term LED well light performance depends on correct subgrade drainage, voltage drop management, and precise aiming during installation.
LED well lights should never be approached as isolated ground fixtures that simply project light upward. In professional landscape and architectural environments, they function as embedded optical instruments that shape vertical planes, define hierarchy, and guide visual movement through exterior space. Their success is determined not by lumen output alone, but by how intentionally they are organized into repeatable lighting patterns that reinforce architectural geometry and landscape composition.
Pattern based deployment ensures predictability and performance consistency across complex projects. When vertical luminance, beam spread, spacing geometry, and contrast ratios are engineered as part of a system, the result is coherent nighttime architecture rather than scattered uplight effects. LED well lights excel when integrated into structured compositions that prioritize hierarchy, rhythm, and restraint. The following framework outlines ten proven landscape design patterns that consistently produce refined results in professional applications.
Technical Foundation: Performance Variables That Dictate Pattern Success
Optical Engineering Parameters
Modern LED well lights offer precise optical control that far surpasses legacy halogen systems. Beam angle, field angle, and center beam candlepower should be reviewed using manufacturer photometric data and IES-format files, because these measurements show how light is distributed across vertical surfaces more accurately than total lumens alone. Refer to Illuminating Engineering Society standards and photometric guidance when evaluating fixture distribution and spacing. In vertical lighting applications, CBCP is often the more relevant metric because it indicates intensity concentration at distance, which directly affects perceived brightness on walls, columns, and tree trunks.
Optical accessories such as honeycomb louvers, glare guards, and recessed lens assemblies play a significant role in professional installations. These components reduce high angle glare and maintain visual comfort from pedestrian and interior viewpoints. Narrow beam optics between 8 and 15 degrees are typically reserved for grazing and sculptural emphasis, while medium to wide optics between 25 and 60 degrees are more appropriate for washing applications. Proper optic selection prevents scalloping and hot spotting, which are common indicators of poor design discipline.
Photometric Strategy and Contrast Modeling
Exterior lighting is fundamentally about contrast management within performance-driven commercial lighting environments. Human perception prioritizes vertical planes because they define spatial boundaries and architectural form. Establishing intentional contrast ratios creates hierarchy and legibility. Subtle architectural emphasis may operate at a 3 to 1 ratio relative to ambient surroundings, while focal elements such as entry portals or specimen trees may operate at 5 to 1 or higher.
Uniformity ratios are equally important. For vertical plane washing, a minimum to maximum uniformity ratio between 0.4 and 0.6 maintains consistency without flattening surface texture. Reflectance values must also be accounted for. Dark stone requires greater intensity than light stucco to achieve comparable luminance perception. Failure to model reflectance leads to overlighting darker materials and diminishing overall composition.
Structural and Environmental Constraints
LED well lights operate below grade in environments subject to water intrusion, soil movement, and debris accumulation. Subgrade preparation is critical for long term performance. A properly engineered gravel bed promotes drainage and prevents standing water from compromising housings and seals. Geotextile barriers reduce soil infiltration and preserve drainage capacity over time.
Thermal management must also be considered. Integrated LED modules require effective thermal management because excessive heat can reduce driver and component reliability over time. LED lifetime and system durability should be evaluated using manufacturer data and reliability guidance such as resources from the U.S. Department of Energy LED Systems Reliability Consortium. Coastal environments demand corrosion resistant materials such as cast brass or marine grade stainless steel. Material selection directly influences lifecycle performance and maintenance frequency.
Electrical and Controls Considerations
Voltage drop remains a frequent cause of inconsistent output across well light installations. On low voltage systems, improper cable sizing and excessive run lengths produce brightness variation and potential color shift. Proper load calculation and circuit segmentation preserve uniformity across patterns.
Control integration should align with lighting patterns rather than wiring convenience in advanced lighting control environments. Grouping fixtures by functional pattern allows scene based programming and flexible dimming. Astronomical timers ensure seasonal adjustment without manual intervention. Dimming curves must be calibrated carefully to avoid perceptible stepping at lower intensities, particularly in hospitality and estate settings.
1. Vertical Plane Wash Pattern
The vertical plane wash pattern establishes architectural legibility by creating even vertical luminance across facades, retaining walls, and large structural surfaces. LED well lights are positioned at calculated offsets from the wall, typically using a 1 to 1 or 1 to 1.5 setback to height ratio depending on optic selection and wall height. Medium to wide beam spreads between 25 and 60 degrees are commonly used to distribute light evenly and reduce visible scalloping. The goal is to produce a cohesive luminous plane that defines space and scale after dark without drawing attention to individual fixtures in architectural recessed lighting applications.
Spacing is determined by beam field angle and mounting distance rather than visual approximation. Uniformity ratios between 0.4 and 0.6 minimum to maximum are generally targeted to preserve consistency without flattening architectural texture. Surface reflectance significantly influences lumen output selection, as darker materials require greater intensity to achieve similar perceived brightness. Glare control through recessed optics and shielding ensures the illuminated surface remains dominant rather than the light source itself.
2. Grazing Texture Amplification Pattern
The grazing pattern uses LED well lights positioned close to vertical surfaces to exaggerate material texture through shallow angle illumination. Fixtures are typically installed six to twelve inches from the wall, utilizing narrow beam optics between 8 and 15 degrees. This configuration allows light to skim across protrusions and recesses, creating pronounced shadow lines that enhance depth and material character. Stone veneers, split face block, and board formed concrete respond particularly well to this technique.
Precision in spacing and output control is essential for successful grazing. Excessive intensity can produce harsh contrast that appears theatrical, while insufficient intensity diminishes shadow articulation. Material reflectance and relief depth must be evaluated to calibrate output properly. Coordination with landscape design is also critical, as future plant growth can obstruct shallow beam paths and compromise the intended visual effect.
3. Column and Pilaster Accent Pattern
Columns and pilasters introduce vertical repetition that defines facade rhythm, and LED well lights positioned at their base reinforce this articulation. Narrow to medium beam optics direct light upward along the column shaft, while dual fixtures may be required for larger diameters to achieve balanced coverage. Cross aiming between fixtures helps eliminate concentrated hotspots and ensures more uniform vertical illumination. The objective is to highlight structural form without creating excessive brightness at the base.
Careful optic selection prevents flare at soffit lines and overexposure of decorative capitals. Medium beams often provide better balance across the full column height compared to very narrow optics. Alignment precision is critical, particularly when multiple columns are involved, as inconsistencies disrupt architectural symmetry. Shielding may be required to prevent glare from pedestrian sightlines near entry approaches.
4. Tree Structure Uplight Pattern
The tree structure uplight pattern emphasizes trunk articulation and layered canopy depth rather than uniform foliage illumination. LED well lights equipped with narrow beam optics are aimed along the trunk to reveal bark texture and vertical geometry. Secondary fixtures may introduce dimensional layering within lower canopy branches to create sculptural presence. This layered strategy prevents the flat appearance that often results from single source uplighting.
High color rendering index sources improve bark tone fidelity and leaf color accuracy, particularly in species with distinctive texture. Seasonal variation must also be considered, as deciduous trees change density throughout the year and affect light absorption. Lumen output should be calibrated to maintain balance during both leaf dense and dormant conditions. Glare control through recessed optics ensures visual comfort from adjacent walkways and interior viewpoints.
5. Linear Hardscape Rhythm Pattern

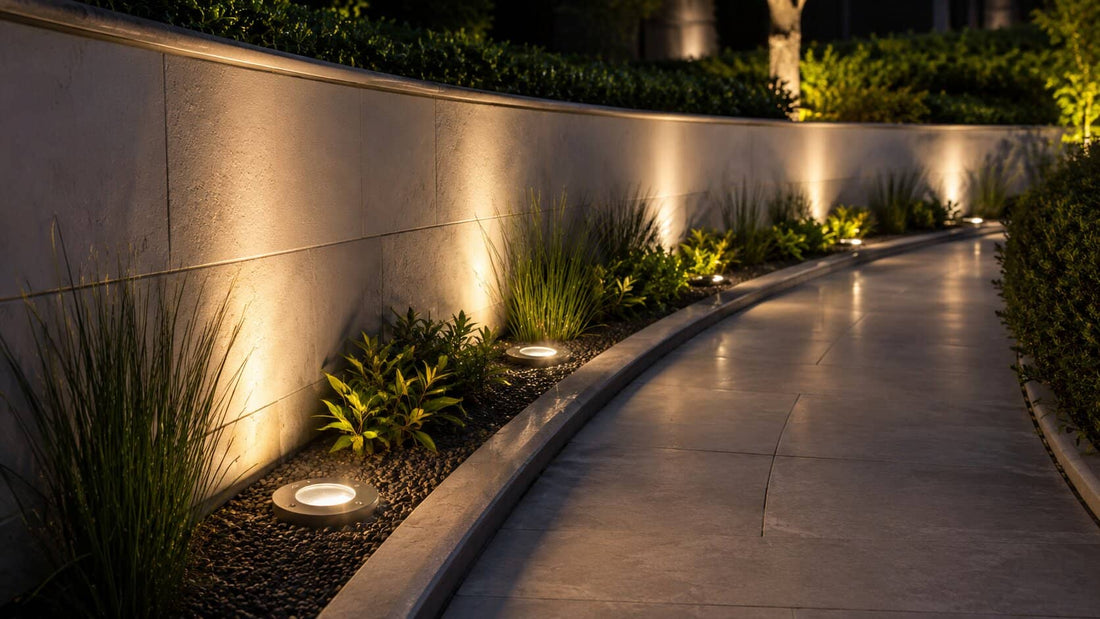

The linear hardscape rhythm pattern uses LED well lights spaced at consistent intervals along retaining walls, seat walls, or raised planters to create cadence and movement. Spacing commonly ranges from six to twelve feet depending on wall height and beam spread. Narrow to medium optics create defined pools of light that overlap slightly to establish visual continuity without forming uniform wash. The rhythm becomes part of the architectural language after dark in structured outdoor flood lighting layouts.
Consistency in spacing is essential to preserve cadence. Irregular intervals disrupt visual flow and reduce perceived quality. Beam selection must also minimize spill onto adjacent walking surfaces to maintain hierarchy between vertical and horizontal illumination. Subgrade preparation with adequate drainage and removable sleeves ensures long term serviceability in these linear installations.
6. Portal and Threshold Framing Pattern
The portal and threshold framing pattern reinforces hierarchy at entry transitions. LED well lights placed symmetrically at either side of a doorway create a luminous frame that directs attention toward the primary access point. Beam overlap at lintel height ensures cohesive coverage and vertical continuity. Narrow to medium beam spreads are typically selected to maintain controlled distribution.
Contrast ratios are intentionally elevated relative to adjacent surfaces to establish importance without overwhelming the facade. Spill above rooflines should be avoided to prevent glare and maintain architectural clarity. Integration with interior lighting levels preserves balanced luminance across the threshold. Dimming capability allows adaptation to varying functional conditions while retaining compositional integrity.
7. Sculpture and Specimen Isolation Pattern
The sculpture and specimen isolation pattern applies LED well lights using a multi point strategy to model three dimensional form. A primary key light establishes dominant directionality, while secondary fixtures soften shadow transitions and enhance depth. Cross aiming between 30 and 45 degrees creates refined modeling that reads clearly from multiple vantage points.
Surface reflectance dictates output calibration. Highly reflective materials require restrained lumen levels to avoid glare, while matte finishes allow slightly higher intensity. The objective is focal emphasis without visual disconnection from surrounding elements. Balanced contrast ensures the illuminated subject commands attention while remaining integrated within the broader composition.
8. Courtyard Perimeter Volume Pattern
In courtyard environments, LED well lights positioned along perimeter walls create a luminous enclosure that defines spatial boundaries. Medium beam optics spaced evenly establish uniform vertical luminance, forming an ambient envelope without introducing visible overhead fixtures. The center of the courtyard remains comparatively dim to preserve intimacy and visual comfort.
Uniform brightness across perimeter surfaces is critical to maintain the sense of enclosure. Shielding reduces glare from seated viewing angles common in courtyard settings. Dimming controls provide flexibility for varying uses, from residential gatherings to hospitality events. Properly executed, this pattern creates comfortable ambient volume with architectural coherence.
9. Linear Axis and Allee Emphasis Pattern
Formal axes and tree allees benefit from disciplined LED well light placement that reinforces procession and symmetry. Fixtures are spaced consistently along the axis, often with alternating offsets to prevent a runway effect. Narrow beams emphasize trunk structure, while medium beams extend into lower canopy layers to create subtle luminous corridors.
Precision in layout and aiming preserves axial clarity. Even minor misalignment becomes noticeable in highly ordered landscapes. Beam intersections above eye level enhance depth while maintaining hierarchy between illuminated trees and adjacent pathways. This pattern supports institutional and estate landscapes where geometry defines organization.
10. Low Level Ambient Layer Pattern
The low level ambient layer pattern uses LED well lights at reduced lumen output, typically between 100 and 250 lumens, to introduce subtle vertical glow across secondary surfaces. Wide beam optics blend gently to fill visual voids without creating focal emphasis. This layer supports primary lighting patterns by maintaining continuity and depth.
Restraint defines success in this approach. Ambient lighting must preserve contrast hierarchy and avoid flattening the scene. Integration with pathway and step lighting ensures balanced luminance distribution across vertical and horizontal planes within low-level safety lighting strategies. When applied thoughtfully, this pattern completes the nighttime composition while maintaining visual comfort.
Pattern Selection Matrix and Comparative Framework
Optical Distribution and Beam Strategy
This subsection would compare how different LED well light patterns rely on distinct beam geometries. It would address narrow versus medium versus wide optics, CBCP requirements by application, field angle implications for spacing, and how symmetric versus asymmetric distributions influence vertical coverage. The goal is to help professionals quickly determine which optical configuration aligns with a specific spatial objective.
Output Calibration and Contrast Hierarchy
This subsection would define typical lumen ranges associated with each pattern and explain how reflectance, surface scale, and viewing distance affect output decisions. It would also connect each pattern to recommended contrast ratio targets so that hierarchy remains intentional rather than incidental. This ensures that washing, grazing, and focal lighting do not compete unintentionally within the same composition.
Spacing Geometry and Glare Risk Assessment
This subsection would address offset rules, spacing intervals, and beam overlap principles across patterns. It would also compare glare exposure risk by application and outline when shielding or deeper recessing becomes necessary. By pairing geometry with glare mitigation, this framework becomes a practical decision tool rather than a conceptual summary.
Advanced Layering Methodology
Vertical Plane Hierarchy Modeling
Effective exterior lighting distinguishes primary, secondary, and tertiary planes. Primary zones command attention, secondary zones support structure, and tertiary zones provide ambient continuity. Contrast ratios must be assigned deliberately to preserve depth.
Darkness is as important as illumination. Strategic voids prevent visual fatigue and enhance hierarchy. Uniform brightness across all surfaces diminishes architectural legibility.
Multi Pattern Integration Strategy
Complex projects often require simultaneous application of multiple patterns. Grazing, washing, and tree uplighting must be balanced to avoid dominance conflicts. Output calibration may require field adjustment after observing real world interaction between layers.
Coordination with landscape growth, irrigation, and structural elements ensures long term integrity. Integration is a collaborative process requiring flexibility and technical oversight.
Glare and Sightline Engineering
Viewing angles from pathways and interior windows must be evaluated carefully. Shielding, recessed optics, controlled brightness, and warmer color temperatures help reduce glare and limit unnecessary light spill in outdoor environments. DarkSky guidance supports using well-shielded luminaires, appropriate output levels, and warm outdoor lighting to improve visual comfort and reduce skyglow.
Balanced luminance between interior and exterior spaces preserves comfort. Excessive brightness near glazing creates contrast discomfort and should be avoided through careful calibration.
Color Temperature Zoning Strategy
Color temperature selection influences material perception and spatial cohesion. Warmer tones complement traditional masonry, while slightly cooler tones may enhance contemporary materials. Consistency across zones maintains visual unity.
Deliberate zoning allows subtle variation where appropriate, but fragmentation undermines cohesion. Color strategy should align with architectural language.
Installation Engineering and Long Term Serviceability
Subgrade Preparation Standards
Adequate drainage aggregate and geotextile separation prevent soil infiltration and water accumulation. Sleeves allow fixture removal for maintenance and re aiming. Avoiding permanent concrete lock in preserves flexibility.
Proper infrastructure reduces long term failure risk and service costs in moisture-resistant exterior lighting systems. Subgrade preparation should be treated as integral to design execution.
Thermal and Moisture Management
Moisture intrusion remains a primary failure cause. Gasket integrity and housing seals must be inspected during installation. Venting considerations may be required in humid climates.
Thermal buildup within enclosed wells reduces driver lifespan. Adequate airflow and appropriate material selection extend operational durability.
Specification and Procurement Considerations
Reading Photometric Reports Properly
IES files provide essential insight into beam distribution and intensity. CBCP values indicate focused brightness, while field angle informs spacing decisions. Wattage and total lumens alone are insufficient indicators of performance.
Critical evaluation of photometric data ensures that fixtures meet design intent. Specification decisions should be based on measurable optical characteristics rather than marketing descriptions.
Evaluating Fixture Construction
Material selection affects longevity and maintenance cycles. Cast brass and marine grade stainless steel provide corrosion resistance in challenging environments. Powder coated aluminum requires careful assessment of coating durability.
Lens material quality influences environmental resilience. Tempered glass typically outperforms lower-grade alternatives. Procurement strategy should prioritize lifecycle performance over initial cost savings.
Performance Failure Modes and Troubleshooting
Photometric Imbalance and Surface Artifacts
This subsection would examine scalloping, hot spotting, uneven vertical illumination, and overillumination. It would identify root causes such as improper beam selection, incorrect setback distance, or excessive CBCP. Diagnostic steps and corrective strategies such as optic replacement, output recalibration, or fixture relocation would be outlined clearly.
Electrical and System Performance Issues
This subsection would focus on voltage drop inconsistencies, transformer loading imbalance, and wiring errors that lead to uneven output or premature driver stress. It would provide guidance on verifying voltage at the fixture level and correcting circuit design deficiencies. Electrical troubleshooting is critical for preserving pattern integrity across larger installations.
Environmental and Installation Related Failures
This subsection would address moisture intrusion, condensation buildup, settlement-induced aiming drift, and inadequate subgrade drainage. It would explain how sleeve systems, aggregate depth, and seal inspection influence long-term reliability. Preventive installation standards would be emphasized to reduce service callbacks and maintain design intent over time.
To Conclude: Engineering Light as Architecture
LED well lights deliver their greatest value when treated as architectural instruments rather than decorative accessories. Their success depends on disciplined spatial patterning, intentional contrast ratios, precise beam selection, and rigorous installation standards. When fixtures are deployed randomly or without geometric logic, even high-quality products fail to produce refined results. It is not brightness that defines excellence in exterior lighting, but hierarchy and control.
Each of the ten patterns outlined in this framework represents a repeatable method for shaping vertical planes, defining rhythm, and reinforcing spatial structure after dark. Washing, grazing, axial alignment, specimen isolation, and ambient layering are not stylistic choices but engineered strategies grounded in optics and perception. The difference between average landscape lighting and architectural exterior lighting lies in restraint, calibration, and precision.
Ultimately, LED well lights reward professionals who approach lighting as a system within integrated architectural outdoor lighting environments. Geometry, contrast modeling, electrical integrity, and subgrade detailing all influence the final outcome. When these variables are aligned, nighttime environments gain depth, legibility, and permanence that endure long after installation is complete.
Partner with BuyRite Electric for Professional Grade Electrical Solutions
At BuyRite Electric, we work with contractors, lighting designers, facility managers, and procurement teams who understand that performance in the field starts with the right components. Precision lighting patterns such as those outlined in this article rely not only on thoughtful design but also on dependable electrical infrastructure, including specialized fixtures like LED well lights, which are essential for in-grade and landscape lighting applications. From in-grade installations to integrated power delivery systems, reliability, code compliance, and product consistency are non-negotiable in professional environments. Since 1986, we have supported the electrical industry with carefully curated solutions that prioritize safety, durability, and cost efficiency without compromising quality.
We offer a focused selection of floor boxes, power delivery systems, and related electrical products from top industry manufacturers, all backed by fast shipping and our 110 percent low price guarantee. Whether you are sourcing components for a large-scale commercial buildout or upgrading infrastructure in a demanding environment, our team is here to help you identify the right products for your application and verify code compliance before you order. Explore our full product line on our website and connect with us directly for guidance. If you need support selecting the right electrical components for your next project, contact us today and let our experienced team help you get it right from the start.
Shop Our Products

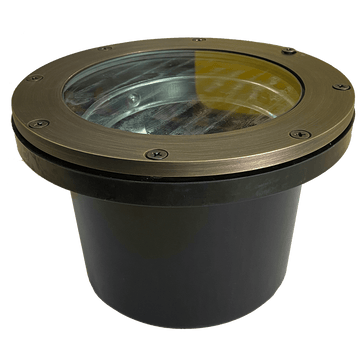

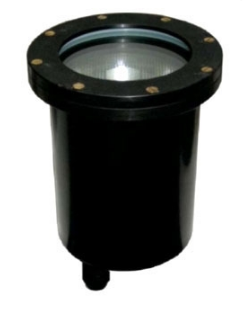

LED Well Lights
