- LED recessed lighting should be planned around illuminated surfaces and visual tasks, because symmetrical ceiling grids do not guarantee effective lighting.
- LED recessed fixtures with identical lumen output can perform differently because beam angle, candela distribution, cutoff, and source regression control light delivery.
- LED recessed lighting performance should be verified with photometric calculations, full-scale mockups, control testing, fixture aiming, and final commissioning.
LED recessed lighting is deceptively easy to specify badly. A reflected ceiling plan can look disciplined, coordinated, and technically complete while the installed lighting produces poor vertical illumination, visible hot spots, uncomfortable aperture brightness, inconsistent color, unstable dimming, or maintenance problems that were never apparent on the drawings. The difficulty is that a recessed luminaire is not simply a source of lumens located at a ceiling coordinate. Its performance is the product of optical distribution, mounting geometry, surface reflectance, source luminance, driver behavior, control architecture, thermal conditions, ceiling construction, and the visual tasks being supported.
For professional designers, engineers, architects, contractors, and specifiers, recessed lighting therefore needs to be treated as an integrated building system rather than a fixture-layout exercise. The design process should begin with what occupants need to see and how the space should visually read, then work backward toward distribution, fixture family, ceiling integration, electrical requirements, controls, and service strategy. The nine mistakes below are the ones that most often undermine that process. Some are photometric, some concern electrical or architectural coordination, and others only become obvious during commissioning or years into the building's operation.
1. Starting With a Symmetrical Ceiling Grid Instead of the Lighting Objective
Designing the Ceiling Before Designing the Light
One of the most common planning mistakes is allowing ceiling geometry to establish fixture locations before the visual objectives have been defined. The reflected ceiling plan gets divided into equal bays, the downlights are centered within them, and the resulting pattern looks orderly enough to be accepted as a lighting design. The problem is that occupants do not experience the project as an RCP. They experience illuminated walls, faces, work surfaces, artwork, merchandise, circulation paths, furniture, and architectural materials. A symmetrical ceiling can therefore produce an asymmetrical or visually incoherent lighting condition if the targets below it do not correspond to the fixture grid.
Grid-first planning also tends to assume that light should be distributed uniformly across the room. In many spaces, that assumption is fundamentally wrong. A hospitality interior may need comparatively low ambient illumination with brighter vertical surfaces and carefully controlled accents. A retail environment may depend on concentrated light on merchandise rather than high floor illuminance. An office may require useful facial illumination, screen-compatible ambient conditions, and brighter collaborative surfaces. A residential interior may be better served by a small number of carefully positioned downlights supplemented by concealed, decorative, and task lighting. In each case, starting with equal fixture spacing risks spending wattage on surfaces that do not contribute meaningfully to the visual experience.
Establishing Targets, Hierarchy, and Viewing Conditions First
A stronger design process starts by identifying visual targets. Professionals should determine what occupants need to see, which surfaces should dominate the visual field, what should recede, where contrast is useful, and what viewing directions will be common. Once those conditions are established, recessed fixture locations can be developed around beam geometry, aiming angles, shielding requirements, and architectural coordination. The resulting ceiling plan may still be orderly, but its geometry is now supporting a lighting strategy rather than replacing one.
This is particularly important because perceived brightness is not synonymous with horizontal illuminance. A room can achieve a respectable average workplane illuminance and still feel dull if its walls remain dark. Conversely, a space with moderate horizontal levels may feel bright and visually spacious when major vertical surfaces are well illuminated. This distinction is one reason experienced lighting designers frequently evaluate vertical planes, wall luminance, and focal surfaces alongside conventional horizontal calculation grids. The first question should not be, "How many fixtures fit in this ceiling?" It should be, "Which surfaces need light, from what direction, and for what visual purpose?"
2. Selecting Fixtures by Wattage and Lumens While Ignoring Photometric Distribution
Delivered Lumens Do Not Describe Useful Light
Lumens are necessary for describing total luminous output, but they are insufficient for predicting what a recessed fixture will accomplish. Two downlights can each deliver 1,000 lumens while producing dramatically different results on the same target. One may concentrate those lumens into a narrow distribution with high center-beam intensity, while another may spread them broadly across a much larger field. Comparing them only by lumen output is therefore similar to comparing water systems by total flow without considering nozzle geometry. The amount leaving the source matters, but where it goes is often more important.
Professional evaluation should include the complete photometric distribution. Depending on the application, that means reviewing beam angle, field angle, center-beam candlepower, candela distribution, cutoff, lens or reflector geometry, aperture size, source regression, and zonal lumen data. For accent lighting, CBCP may be far more relevant than nominal lumens because target illuminance depends strongly on luminous intensity. For general illumination, the shape and smoothness of the distribution become critical because poor distribution can create hot spots, scalloping, or excessive overlap even when total lumens appear reasonable. The correct luminaire is therefore the one whose optics serve the target condition, not necessarily the one with the highest lumen package or efficacy figure.
Beam Geometry, Intensity, and Photometric Files
A preliminary estimate of beam diameter can be made using:
[D = 2H\tan\left(\frac{\theta}{2}\right)]
where (D) is the nominal beam diameter, (H) is the distance from luminaire to target plane, and (\theta) is the beam angle. This calculation is useful for early visualization, but it should not be interpreted as a hard-edged cone. Beam angle is generally associated with the points where intensity falls to 50 percent of maximum, while useful field light extends beyond that region. Two nominally identical 30-degree optics can therefore behave differently if one has a sharper field cutoff and the other has a softer distribution.
For directional lighting, point illuminance can be approximated by the relationship:
[E = \frac{I\cos\theta}{d^2}]
where (E) is illuminance, (I) is luminous intensity in candelas, (d) is the source-to-target distance, and (\theta) accounts for the angle of incidence. This relationship demonstrates why a lumen-only specification can be misleading. Professionals should review actual IES or LDT data and, where project importance warrants it, use photometric software to test the selected fixture in the real geometry of the project. A cut-sheet headline stating "1,200 lumens, 12 watts" tells only a small part of the story.
3. Using Generic Spacing Rules Without Accounting for Mounting Height, Beam Overlap, and Surface Geometry
Why Simple Spacing Formulas Break Down
Rules such as spacing recessed fixtures at half the ceiling height or placing the first row a fixed distance from the wall are convenient, but they are not substitutes for photometric analysis. Appropriate spacing depends on mounting height above the relevant target plane, optical distribution, spacing criterion, surface reflectance, desired uniformity, fixture tilt, room proportions, and the contribution of adjacent lighting layers. A rule that performs acceptably with a broad general downlight in a white room may fail badly with a narrow distribution, dark finishes, or an unusually tall ceiling.
Even the meaning of mounting height is frequently oversimplified. If the design criterion concerns a workplane 0.8 meters above finished floor, the useful mounting height is the distance between the luminaire and that workplane, not simply the floor-to-ceiling dimension. In a room with a 3-meter ceiling, that may be approximately 2.2 meters. For countertops, display tables, artwork, and vertical surfaces, the relevant geometry changes again. Professional spacing should therefore be derived from the target condition rather than a generic room dimension.
Beam Overlap, Wall Setback, and Edge Conditions
Beam overlap deserves particular attention because the nominal beam angle does not define the entire visible field. If adjacent beams barely overlap, the floor or workplane may show obvious pools of light. If they overlap excessively, the center of the space may become disproportionately bright while the perimeter remains weak. The desired relationship also changes by application. General illumination may require smooth overlap, while accent lighting may intentionally preserve contrast. Wallwashing and grazing require entirely different spacing-to-setback relationships because the designer is trying to control vertical distribution rather than horizontal uniformity.
The first row of fixtures near a wall is often more visually consequential than the spacing between fixtures in the center of the room. Place the fixture too far from the wall and the upper vertical surface can become dull. Place it too close and the result may be an intense scallop, overbright upper wall, or exaggerated texture. The correct setback depends on optic, ceiling height, wall material, target height, and desired uniformity. This becomes even more complex with sloped ceilings, coffers, bulkheads, exposed beams, or double-height spaces. Plan-view spacing alone cannot capture those conditions, which is why sections, photometric studies, and project-specific mockups are often necessary.
4. Ignoring Glare, Cutoff, Source Regression, and Visual Comfort
High Efficacy Does Not Guarantee a Comfortable Luminaire
Modern LED technology can produce substantial lumen packages from very small apertures. That is useful architecturally, but it also creates the potential for extremely high source luminance. A small, visually exposed LED emitter can appear harsh even when the luminaire is efficient and the measured illuminance is appropriate. In other words, a fixture can be photometrically productive while still being visually uncomfortable. This is one of the areas where specification based solely on lumens per watt can produce poor results.
Glare is influenced by aperture size, source regression, reflector depth, trim finish, lens characteristics, beam spread, mounting height, viewing angle, and the contrast between the aperture and its surroundings. Occupant position matters as well. A deeply regressed fixture may appear comfortable when viewed from directly beneath it but become problematic from a seated position across the room if the cutoff is inadequate. In offices, restaurants, hotel rooms, galleries, and high-end residential spaces, those oblique viewing conditions can be more important than the view from directly below the fixture.
Regression, Cutoff, and Aperture Brightness
Increasing source regression is one of the most effective ways to reduce direct source visibility, but deeper is not automatically better. Greater regression can reduce optical efficiency, alter the available beam range, increase fixture depth, and create coordination problems in shallow plenums. The design therefore involves a balance between visual comfort, delivered performance, physical dimensions, and architectural appearance. A low-glare luminaire is not created by one feature in isolation. It results from the interaction between optical shielding, source position, reflector geometry, and the occupant's likely viewing angles.
Trim and reflector finishes also deserve careful consideration. Dark trims can visually suppress the aperture and reduce the apparent brightness of the ceiling element, while white trims may integrate more quietly into a white ceiling plane. Specular components can create attractive sparkle in some hospitality or retail settings but may be distracting elsewhere. In commercial projects, metrics such as Unified Glare Rating (UGR) can be useful for appropriate luminaire types and room conditions, but UGR should not be treated as a universal answer for every recessed application. Visual comfort should ultimately be evaluated in context, particularly when small apertures, high-output sources, low mounting heights, or long sightlines are involved.
5. Treating Color Temperature and CRI as the Entire Color-Quality Specification
Nominal CCT Is Not a Complete Description of Color Appearance
A specification such as "3000 K, 90 CRI" appears precise but leaves important information unresolved. Correlated color temperature describes a chromaticity position relative to the blackbody locus, not the complete spectral behavior of the source. Two luminaires can both be nominally 3000 K and still look visibly different because of differences in chromaticity, Duv, binning tolerance, optical materials, thermal conditions, and manufacturing variation. Those differences are particularly noticeable when several recessed apertures are visible simultaneously or when adjacent fixtures illuminate a continuous neutral surface.
Professionals should therefore consider chromaticity consistency in addition to nominal CCT. SDCM or MacAdam ellipse tolerances, as described in guidance from the International Commission on Illumination (CIE), can be useful where fixture-to-fixture matching is visually critical. A tighter tolerance may be justified in hospitality, galleries, luxury residential projects, retail environments, and other spaces where multiple fixtures are viewed together. The specification should also consider whether the product family maintains similar chromaticity across different lumen packages, beam options, and fixture sizes. A project that mixes downlights, wallwashers, and adjustable accents from the same nominal family can still exhibit visible color differences if those variants use different LED packages or optical systems.
CRI, R9, TM-30, and Spectral Quality
General CRI, particularly Ra, remains useful but should not be mistaken for a complete color-rendering metric. Because the score is an average across a defined set of reference colors, a source can achieve a high CRI while still rendering certain saturated colors poorly. This is especially relevant for skin tones, food, wood, textiles, cosmetics, artwork, and materials containing strong red components. Reviewing R9 can provide additional insight into saturated red rendering, but even R9 does not describe the entire spectral character of the light source.
For projects where color quality materially affects the experience, IES TM-30 provides a more sophisticated framework. Metrics such as (R_f) for fidelity and (R_g) for gamut allow designers to understand whether colors are reproduced accurately, increased in saturation, or compressed relative to a reference source. Hue-specific information can also reveal directional shifts that disappear inside a single average value. The goal is not necessarily to maximize every metric. A hospitality project may intentionally favor a slightly richer gamut, while a museum may prioritize high fidelity. What matters is that the spectral specification is aligned with the visual objective rather than reduced to a minimum CRI threshold.
Dynamic White Systems Require Even More Scrutiny
Dim-to-warm and tunable-white recessed luminaires introduce additional complexity because color behavior changes over time or with control input. Two products that both claim a 3000 K to 1800 K dim-to-warm range may follow significantly different trajectories as output decreases. One may reproduce the familiar behavior of incandescent dimming convincingly, while another may shift too quickly, too slowly, or through less desirable chromaticity regions. Evaluating only the endpoints does not reveal how the fixture will feel across the actual operating range.
Tunable-white systems require careful coordination among LED channels, drivers, controls, user interfaces, and commissioning procedures. The system may need to provide separate control of intensity and CCT or coordinate both parameters according to programmed schedules. Fixture-to-fixture calibration becomes critical because slight chromaticity differences become particularly visible when an entire ceiling changes together. In such projects, color quality is not a static product characteristic. It is a system behavior that must be specified, controlled, tested, and commissioned.
6. Assuming "Dimmable" Means the Fixture, Driver, and Control System Are Compatible
Dimming Performance Is a System Property
The word "dimmable" on a luminaire data sheet says surprisingly little about actual performance. It may indicate only that the driver accepts a particular dimming signal under some conditions. It does not guarantee an acceptable minimum output, stable low-end behavior, smooth transitions, fixture-to-fixture tracking, absence of audible noise, freedom from flicker, or compatibility with the exact control device installed on the project. For professional specifications, dimming should be evaluated as a complete chain consisting of LED module, driver, control interface, control device, processor or gateway where applicable, branch circuit, and wiring topology.
Different control methods introduce different constraints. Forward-phase and reverse-phase control can be effective in appropriate applications, but compatibility between the electronic driver and dimmer is critical. A 0 to 10 V system separates power and control conductors but brings its own considerations involving polarity, low-end behavior, wiring integrity, and control architecture. DALI and other digitally addressable systems offer greater flexibility, individual addressing, and sophisticated commissioning, but they also require proper device compatibility and system configuration. Wireless controls can simplify certain retrofit conditions while introducing networking, commissioning, interference, and interoperability considerations. None of these technologies should be selected merely because it is familiar or broadly described as "compatible with LED."
Low-End Dimming, Flicker, and Driver Behavior
Low-end performance is where many otherwise acceptable systems fail. A fixture that dims cleanly from 100 percent to 20 percent may be completely unsuitable for hospitality, residential, entertainment, or presentation spaces that regularly operate below 10 percent. At low output, some drivers exhibit pop-on, dropout, stepping, shimmer, inconsistent tracking, or visible color instability. A nominal specification of "1% dimming" should therefore be examined carefully because electrical output percentage does not translate directly into perceived brightness. Human visual response is nonlinear, and the subjective difference between a good low-end driver and a mediocre one can be substantial.
Flicker and temporal light artifacts also deserve attention. A luminaire may look steady at full output yet show significant modulation at lower levels or under a different control protocol. In conference rooms, hospitality spaces, retail environments, studios, museums, and other locations where cameras are used, temporal behavior can create banding or recording problems even when occupants do not consciously perceive flicker. Manufacturers may publish performance metrics, but generic statements such as "flicker-free" should be treated cautiously unless test conditions and definitions are provided. For demanding projects, sample testing with the actual driver and intended control hardware remains one of the most reliable methods of verification.
Electrical Loading Is More Complex Than Dividing Watts by Circuit Capacity
LED drivers are electronic loads, and their electrical behavior cannot always be predicted from steady-state wattage alone. Inrush current can be significant when multiple drivers energize simultaneously because internal capacitors charge over a very short period. A branch circuit may appear lightly loaded based on connected watts while still causing problems for relays, dimming modules, contactors, or protective devices during switching. Manufacturer limits on maximum fixture quantity per control channel should therefore be respected even when the calculated running load appears comfortably below the electrical rating.
The driver itself should be treated as a critical specified component. Input current, power factor, total harmonic distortion, inrush characteristics, standby power, dimming range, thermal limits, and serviceability can all affect system performance. Substituting a driver because the replacement has the same nominal wattage can create unexpected control or electrical issues. Where emergency power, generators, centralized controls, large relay groups, or sensitive audiovisual systems are involved, coordination between lighting designer, electrical engineer, control manufacturer, and luminaire manufacturer is especially important.
7. Failing to Coordinate the Recessed Fixture With Ceiling Construction, Insulation, HVAC, Structure, and Other Services
The Ceiling Is Shared Technical Infrastructure
A recessed fixture does not occupy a two-dimensional circle. Above the aperture may be a housing, junction box, heat sink, remote driver, mounting frame, cable entry, tilt mechanism, or fire-rated enclosure. That volume competes with structure, ductwork, diffusers, sprinklers, speakers, cameras, piping, cable trays, access panels, and ceiling suspension systems. A lighting design can therefore be photometrically correct and still be physically impossible to construct if the above-ceiling zone was not coordinated early enough.
The problem is particularly acute with small-aperture architectural downlights because the visible trim can make the fixture appear much smaller than its actual installation envelope. Adjustable recessed luminaires may require additional clearance to tilt and rotate. Wallwashers may need a precise orientation that cannot simply be turned after installation to avoid a duct. When conflicts are discovered in the field, the usual response is to move the luminaire. That may solve the coordination problem while destroying the photometric relationship that justified the original location. Critical wallwash, accent, and perimeter positions should therefore be protected during interdisciplinary coordination rather than treated as freely movable ceiling symbols.
Ceiling Type, Plenum Depth, and Installation Method
Different ceiling constructions can require different housings, mounting accessories, or installation sequences. Gypsum board, suspended tile, wood ceilings, metal panels, concrete slabs, insulated assemblies, acoustic systems, and specialty architectural ceilings should not automatically be treated as interchangeable mounting conditions. Ceiling thickness can affect trim engagement and alignment, while shallow plenums can eliminate otherwise suitable fixture families. A low-profile luminaire may solve a dimensional conflict but introduce different thermal characteristics, glare performance, beam options, or serviceability.
Trimless and plaster-in products require especially careful planning. These systems can create a highly refined ceiling appearance, but the housing and plaster frame become integrated into the finished architecture. Late substitutions are more difficult, alignment tolerances are less forgiving, and maintenance access must be understood before the ceiling is closed. Designers should determine whether the LED module and driver can be serviced through the aperture, whether an access panel is required, and whether replacement work will damage the ceiling finish. Architectural minimalism is valuable, but it should not depend on creating an installation that becomes destructive to maintain.

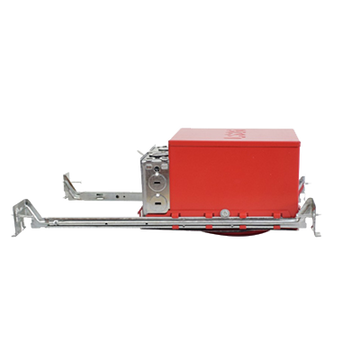

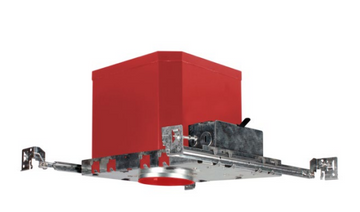

Insulation, Airtightness, Fire Ratings, and Environmental Exposure
Thermal and enclosure conditions must also be coordinated. LED fixtures still generate heat, and the manufacturer relies on a defined thermal path to keep the LEDs and driver within acceptable operating limits. IC and non-IC requirements should be respected according to the actual installation. A fixture not designed for insulation contact should not be buried in insulation simply because its wattage is low. Likewise, field-built enclosures intended to maintain clearance can interfere with fire, acoustic, vapor, or air-control layers if they are not properly designed.
Recessed penetrations at the building envelope can affect airtightness, moisture control, and energy performance. Fire-rated ceiling assemblies require compatible tested solutions, not improvised field fixes. Bathrooms, shower areas, exterior soffits, and other exposed locations require the correct damp or wet-location rating based on actual exposure rather than the room name alone. Exterior installations may add concerns involving corrosion, insects, condensation, temperature extremes, and coastal environments. The correct recessed luminaire is therefore not simply the one with the right optics. It must also be suitable for the physical assembly in which it will operate.
8. Designing for Initial Performance While Ignoring Thermal Behavior, Driver Life, Maintenance, and Product Obsolescence
LED Life Is Not the Same as Complete Luminaire Life
Statements such as "50,000-hour life" are frequently misunderstood. LED life information commonly relates to lumen maintenance under specified operating conditions, not to the moment when the complete luminaire ceases functioning. An L70 value, for example, concerns the expected time associated with depreciation to approximately 70 percent of initial light output under the applicable testing or projection framework. It does not automatically describe driver reliability, color stability, optical degradation, connector life, or complete system survival.
A recessed fixture may therefore become unsuitable well before the LED package reaches its projected lumen-maintenance threshold. The driver can fail, the optical system may discolor, color can shift beyond acceptable limits, or the light output may no longer support the original design criterion. In applications with long daily operating hours, these distinctions become especially important. Maintenance planning should consider the whole luminaire and the consequences of partial performance degradation, not merely catastrophic failure.
Thermal Conditions Directly Affect Reliability
Thermal management is central to LED performance. Heat influences LED output, chromaticity, phosphor behavior, driver electronics, and the life expectancy of components such as electrolytic capacitors. A fixture operating in a cool, open plenum may experience very different conditions from an identical unit installed in a compact insulated cavity or exterior soffit. Manufacturer ambient-temperature ratings and installation restrictions should therefore be reviewed as design parameters rather than buried installation notes.
Thermal behavior is also tied to fixture configuration. Smaller housings, higher lumen packages, tightly sealed assemblies, remote drivers, and insulation contact can all change heat-management requirements. When a project specifies the highest available lumen package inside the smallest aperture, professionals should consider whether the thermal system is operating near its practical limits. High initial efficacy is not particularly valuable if elevated temperatures shorten driver life or accelerate output and color degradation.
Serviceability Should Be Designed Before the Ceiling Is Closed
The question of what happens when a driver fails should be answered during design. Can the driver be removed through the luminaire aperture? Is it mounted remotely? Is the junction box reachable? Does servicing require an access panel? Will maintenance personnel have to cut a finished plaster ceiling? These questions can materially change the suitability of a product even when its photometric performance is excellent.
Integrated LED luminaires are not inherently problematic, nor are replaceable-source systems inherently superior. Integration can enable excellent optics, compact apertures, improved thermal engineering, and precise output. The tradeoff is that the service path may depend heavily on manufacturer-specific components. Professional selection should therefore consider the operating environment, ceiling value, access constraints, expected ownership period, and maintenance capabilities of the facility. The correct solution is a lifecycle decision, not simply a preference for one construction method.
Product Obsolescence and Future Matching Matter
Building lifecycles are frequently much longer than LED product cycles. A fixture family may remain installed for twenty years while the manufacturer revises LED boards, drivers, optics, binning, or the entire product line several times. A replacement purchased years later may be nominally identical in CCT and lumen output yet still differ visibly from the original installation. Aging of the existing fixtures further complicates the comparison because the original system may have experienced both lumen depreciation and chromaticity shift.
For high-value projects, the design team should investigate manufacturer continuity, replacement policies, modular component availability, and backward compatibility. Procuring spare luminaires, drivers, or modules at project completion can be reasonable when visual consistency is critical. Maintenance plans may also need to anticipate group replacement in highly visible areas rather than replacing a single failed unit beside several aged fixtures. Long-term service strategy is part of professional lighting design because the appearance of the project five or ten years after completion is still part of its performance.
9. Skipping Photometric Verification, Full-Scale Mockups, and Commissioning
Calculation Should Test the Design, Not Decorate the Presentation
Photometric simulation is most valuable when it is used to challenge the design rather than merely confirm it. A model should test whether the selected distributions, mounting positions, aiming angles, surface reflectances, and light-loss assumptions create the intended quantitative conditions. That can include average illuminance, minimum levels, maximum-to-minimum ratios, vertical illuminance, target illuminance, accent ratios, wall conditions, and other project-specific criteria. A false-color rendering may be useful visually, but its value depends entirely on the accuracy of the underlying geometry, photometry, and material assumptions.
One of the most common calculation errors is evaluating only a horizontal grid at a conventional workplane height. That approach may be suitable for one part of an office analysis, but it does not necessarily answer the most important questions in a hospitality, retail, residential, gallery, or museum environment. Designers should calculate the surfaces that matter. This can include walls, artwork, shelves, counters, vertical display planes, circulation zones, faces, and feature materials. Reflectance values should also be realistic. A model that assumes bright walls and ceilings in a dark interior can significantly overestimate useful interreflection and perceived brightness.
Full-Scale Mockups Reveal What Numbers Cannot
Some of the most important characteristics of recessed lighting are difficult to judge from calculations alone. Source visibility, glare, trim appearance, shadow quality, scallop shape, beam softness, sparkle, color perception, surface texture, and low-level dimming behavior are experiential. A full-scale mockup allows the design team to evaluate these characteristics using the actual luminaire, optic, trim, driver, control method, mounting height, and ideally representative finish materials.
The mockup should test difficult conditions, not merely the easiest location in which the fixture looks good. If a project has a challenging wallwash condition, low ceiling, dark finish, highly reflective material, extreme viewing angle, shallow plenum, or critical artwork, that is often the best place to test. Adjustable fixtures should be aimed through their realistic range to determine whether the target can be illuminated without exposing excessive source brightness. Where controls are important, the fixture should also be evaluated at low output with the intended control equipment.
Commissioning Is Part of Lighting Design
The installation is not complete merely because every fixture energizes. Adjustable luminaires need to be aimed. Scenes need to be programmed. Dimming levels need to be verified. Control zones should be tested against actual use patterns. Daylight-response systems, occupancy controls, emergency conditions, and integration with other building systems may need validation. A specification that performs perfectly on paper can still produce disappointing results if commissioning is left to whoever happens to be on site at the end of construction.
Aiming is particularly critical in retail, hospitality, gallery, museum, residential, and architectural accent applications. Small changes in tilt and rotation can materially alter illuminance and visual emphasis. Scene programming should ideally occur when finishes, furniture, artwork, merchandise, and other relevant elements are in place because an empty construction-phase room does not represent the final visual environment. Where the project warrants it, a post-occupancy review can be useful for fine-tuning scenes or addressing conditions that only become apparent during actual operation.
Professional Verification Checklist
Before a recessed luminaire family is released for procurement, the design team should typically verify the parameters that are relevant to that specific application. Not every project requires every item below, but a professional specification should make deliberate decisions rather than leave critical variables undefined.
- Aperture size and visible trim dimensions
- Trimmed, trimless, flange, or plaster-in construction
- Delivered lumen package
- Input wattage and efficacy
- Beam angle and field angle
- Center-beam candlepower where applicable
- Complete candela distribution
- IES or LDT photometric data
- Spacing criterion where relevant
- Source regression and shielding
- Cutoff characteristics
- Reflector and trim finish
- Adjustable tilt and rotation range
- CCT
- Chromaticity tolerance
- SDCM or equivalent consistency criteria where required
- General CRI
- R9 where relevant
- TM-30 data for color-critical applications
- Driver manufacturer and model
- Dimming protocol
- Minimum stable dimming level
- Verified control compatibility
- Flicker or temporal modulation performance where relevant
- Input-current characteristics
- Inrush-current limitations
- Maximum fixture quantity per control channel
- Power factor and harmonic performance where required
- Plenum depth and installation envelope
- IC suitability where applicable
- Airtight rating where required
- Fire-rated ceiling compatibility
- Damp or wet-location suitability
- Ambient operating temperature limits
- Driver and module accessibility
- Emergency-system compatibility where applicable
- Lumen-maintenance information
- Color-maintenance expectations
- Replacement-component strategy
- Warranty
- Mockup requirements
- Aiming procedures
- Controls commissioning requirements
- Final performance verification
The purpose of a checklist like this is not to make every recessed-lighting specification unnecessarily complicated. It is to identify which variables can materially affect the result before substitutions, procurement pressures, ceiling conflicts, and field decisions narrow the available options. A residential downlight, museum accent luminaire, office fixture, and retail spotlight will not require identical criteria. They do, however, all benefit from a specification process that distinguishes critical performance requirements from marketing shorthand.
Final Thoughts: Design the Light, Not Merely the Ceiling
The most persistent problems with LED recessed lighting usually originate from treating the system as simpler than it is. A circle on a reflected ceiling plan represents a complete optical, electrical, thermal, architectural, and maintainable assembly. Its success cannot be judged solely by lumen output, spacing symmetry, or whether a horizontal calculation reaches a target value. The relevant question is whether the fixture contributes the correct light, in the correct direction, with appropriate visual comfort, while remaining compatible with the building systems and maintainable throughout the expected life of the project.
For professionals, the better sequence is clear. Define the visual objectives first, identify the important surfaces and tasks, select an appropriate photometric distribution, position the luminaire according to target geometry, evaluate glare and color quality, coordinate the driver and controls, resolve the ceiling and thermal conditions, account for service life, and then verify the result through calculation, mockup, and commissioning. This workflow often results in fewer fixtures, more useful light, better visual hierarchy, more predictable controls performance, and fewer field compromises.
The nine mistakes discussed above ultimately fall into three broader categories. The first is photometric error, where fixtures are selected or positioned without enough attention to distribution, geometry, vertical illumination, contrast, or glare. The second is integration error, where the optical concept is developed without sufficiently coordinating drivers, controls, electrical behavior, ceilings, structure, thermal conditions, environmental requirements, and maintenance. The third is verification error, where assumptions remain untested until the installation is already complete.
Avoiding these mistakes requires greater discipline early in the project, but it reduces uncertainty later. The ceiling becomes easier to coordinate, fixture quantities become easier to justify, substitutions can be evaluated against meaningful criteria, and commissioning has a clear performance target. Most importantly, the finished space stops looking like a room that has simply been fitted with downlights. It reads as an intentionally illuminated environment in which every recessed fixture has a defined visual and technical purpose.
