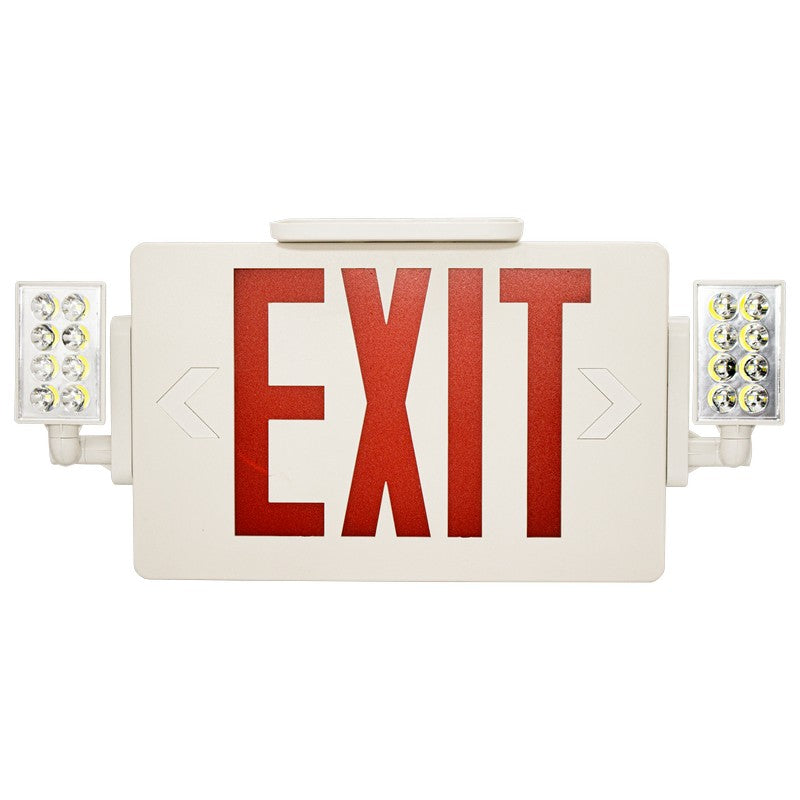

Westgate XTSL-CL-RW

XTSL-CL-RW Product Description

Exit signs shall be provided at every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations and intervals as are necessary to provide the occupants with knowledge of the various means of egress available

Features:

• Ultra Thin Combo
• 5-Year Warranty
• Maximum 24 hours for Full Recharge Time
• Ultra Bright RED LEDs
• Built-in 3.6V 1000mAh Ni-MH Battery for Minimum 90 Minutes

Specifications :

Electrical:
• Voltage: 120-277V / 60Hz (Universal Voltage Operation)
• Watts: 1.2 per head
• Input Power: 2W
• AC charging current: 32mA
• Fully Automatic Solid-State, Two Rate Charger Initiates Battery Charging to Recharge a Discharged Battery in 24 hours
• 1.2V long Life, Maintenance-Free, Rechargeable Ni-MH Battery

Mechanical:
• White Finish
• Letters 6 height with 3/4 stroke
• Operating Temperature: 32º F~104ºF
• Discharge Time: ≥ 90mins
• Universal Exit: Single or Double Face — Wall (Back) or Ceiling Mount
• Injection-Molded Thermoplastic ABS Housing,UL 94V-0 Flame Rating
• Innovative,Easy Installation in Minutes

Lighting:
• Color Temperature: 1001K (AC) / 5558K (DC)
• Total Lumens: 10 LM (AC) / 326 LM (DC)
• Ultra Bright RED LEDs
• Internal Solid-State Transfer Switch Automatically Connects the Internal Battery to LED Board for Minimum 90-minute Emergency Illumination
• Charge Rate/Power “ON” LED Indicator Light and Push-to-Test Switch for mandated Code Compliance Testing

Applications:
• Ideal for every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
