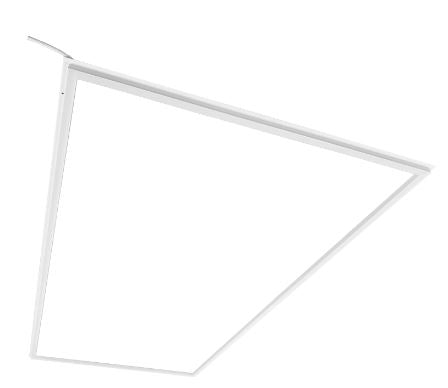

Westgate TGL-2X2-MCTP

TGL-2X2-MCTP Product Description

Ideal for new construction and remodel/replacement
of fluorescent troffers or LED panels in commercial office
spaces, schools, healthcare facilities, and retail merchandising
areas. Compact ultra-thin appearance, simple installation, and
outstanding performance. Assembling type in an individual
package, easy to take away

SPECIFICATIONS:

Electrical:
• Voltage: 120-277V
• Power Factor: >0.92
• Wattage: 27W/ 35W/ 40W
• Efficacy: 148/ 114/ 100 LPW

Mechanical:
• Extruded Aluminum with White Painting
• Surge Protector
• Maximum Ambient Temperature: -22°F to +104°F
• Rated life: 50,000 hrs
• Driver/Junction Box is Separate and Connects to the
Fixture with a 3Ft. Dongle.
• Driver/Junction Box Installs On Adjacent Grid, On Top,
Using Your Choice Of T-bar Bracket or Westgate T-bar
Bracket Model (ELB-TBAR1)
• IP20 Indoor Use Only

Lighting:
• Performance Lens Assembly Delivers Unique Beam
Angles and Reduces Glare
• Dimmable: 120-277V 0~10V Driver for Continuous
Dimming
• Driver Disconnect Provided Where Required to
Comply with US and Canadian codes
• Total Lumens: 4000LM
• Color Temperatures: 3500K/4000K/5000K
• Multi CCT & Multi Power (Selectable Switch in Driver
Box)
• Color Rendering Index: CRI ≥ 80

:: 5-year warranty
