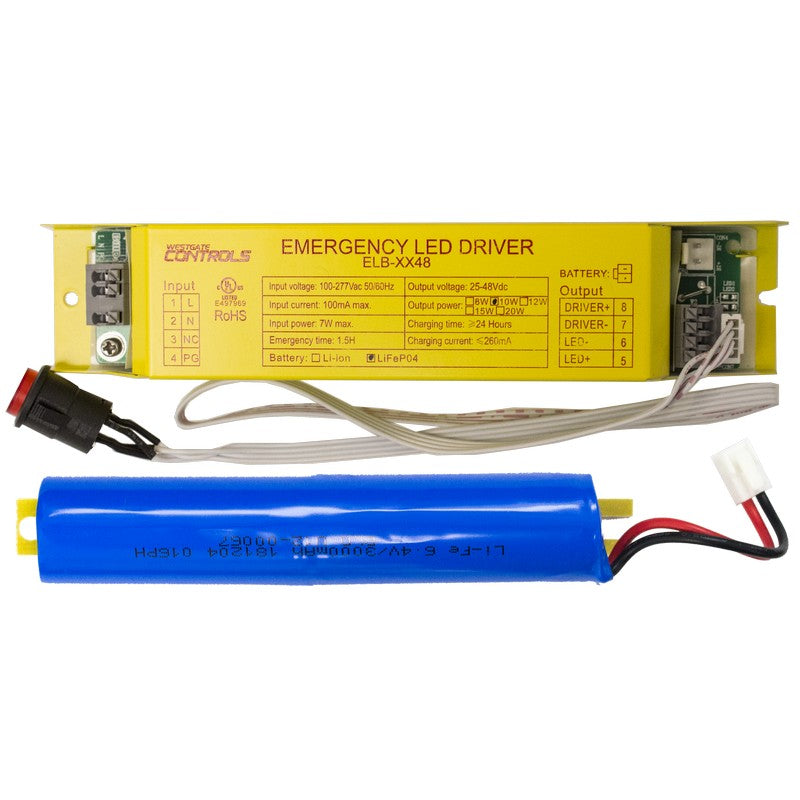

Westgate ELB-1048-HH

ELB-1048-HH Product Description

10W LED Emergency 2 Piece Backup Driver High Heat Protected

Features:

• Meet most of safety standards for lighting
• Standard CSA C22.2 NO.141 UL924
• External LiFeP04 battery
• Battery protections over charge protection over discharge protection short circuit protection
• The batteries Meet 500 cycles of standard CH and standard DCH
• Indicator shows a variety working modes
• RoHS compliant
• Emergency 1.5H

Specifications :

Universal Input Voltage
100 277Vac 50 60Hz
AC Input Current
100mA max.
AC Input Power Rating
7.0W max.
Output Current and Voltage
200-400mA 25 48Vdc
Output Power
10W max.
Emergency Time
≥1.5H
Full Warranty
3 Years
Test Switch Indicator Light
Illuminated Test Switch, indicator Light
Battery
LiFeP04 battery-6.4V/3000mAh
Battery Charging Current
250mA
Charging Time
≥24Hours
Temperature Rating Ambient
0°C to 50°C (32°F to 122°F)
Dimensions
7.4''x1.5''x1.1'' 188mmx38mmx29mm ( )
Weight
0.83bs(0.29kg)
