ELCO Lighting EL770RICDXA

EL770RICDXA Product Description

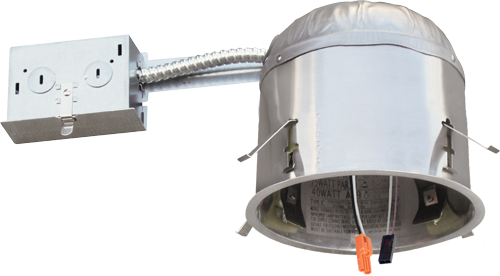

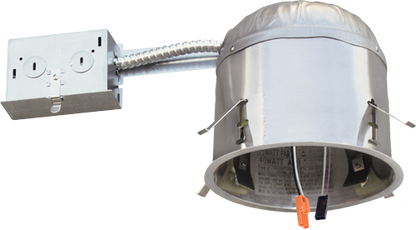

6″ 0-10V IC Remodel Dedicated LED Housing

FEATURES:

Wired for 0-10V Dimming
Single Wall IC Airtight rated for direct contact with
insulation
120/277V Input
Meets restricted air flow requirements (per ASTM E-283)
UL listed for direct contact with insulation
UL listed for wet locations with wet location inserts
UL listed for feed through
CA Title 24 compliant

SPECIFICATIONS:

Voltage 120/277V
Lamp Type LED

Construction:

Shallow Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 6
1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four
3/4" knockouts with pry-out slots. 4 Romex pryouts with strain relief.

Electrical:

Input Voltage: 120/277V
Inherently protected.
Trims: Compatible with ELCO 6" 0-10V LED Inserts

Dimmability:

Dimmability based on lamp.

Lamp:

Designed for use with ELCO 6" 0-10V LED inserts.

Listings

UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty

ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years
