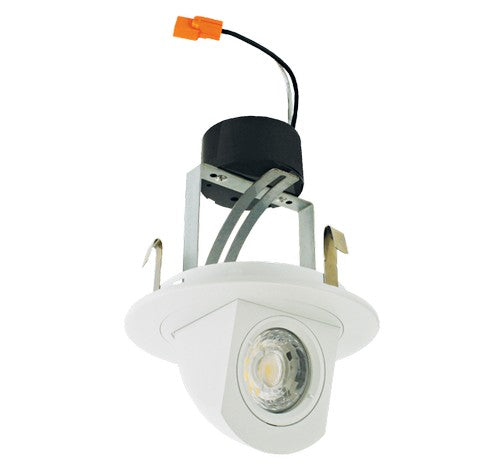

ELCO Lighting EL49730W2

EL49730W2 Product Description

ELCO Lighting's G2 inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 90+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet Title 24 high efficacy requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

FEATURES :

Fits ELCO 4′′ Dedicated LED Recessed Housings.

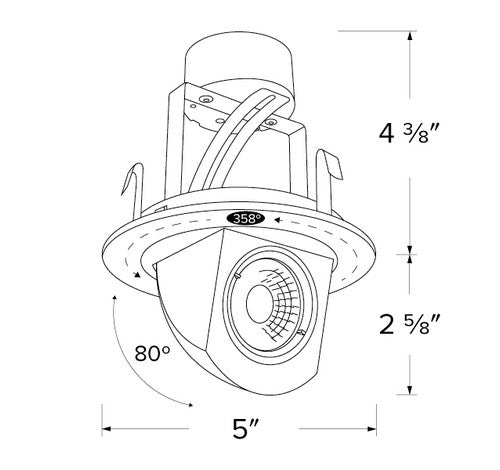

Maximum adjustability of 80° tilt, 358° rotation.
Includes 40° standard lens, and interchangeable 28° and 60° lens.
Functions as downlight, wall wash or accent light.
Great for lighting up artwork and spotlighting.
Die-Cast construction provides lasting durability.
For retrofitting on existing E26 Base housings use Medium Base Adapter (PSA30 - Not included).
Meets Title 24 high efficacy requirements.
Life Span of 50,000 hours L70.

SPECIFICATIONS :

Wattage : 11W
Lumens : 950 lm
Voltage : 120V
Color Temp. : 2700K - 3000K
Dimmable : Triac/ELV
Lamp Type : LED
CRI : 90+
Damp Location : Listed

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Includes PSA30 medium base adapter for retrofitting existing housings. Quick connect for use with ELCO housings EL490ICA, EL490RICA, EL49FICA. PSA30 (Medium Base Socket adapter) allows for use with EL99ICA, EL99RICA, EL99FICA, EL99A, EL99RA. PSA31 (GU10 Socket Adapter, not included) allows for use with EL49ICA, EL49A, EL49RA. PSA35 (GU24 Socket Adapter, not included) allows for use with EL99ICA-G24, EL99RICA-G24. Can be used in IC and non-IC housings.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9. Ambient operating temperature -40°F (-40°C) to 104°F (40°C). Input wattage of 14W. Start time of less than .75 seconds.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List.

Labels and Listings:
cULus Listed for US and Canada
UL Listed for Damp Location.
Meets Title 24 high efficacy requirements.
ENERGY STAR® Certified.
