Diode LED DI-24V-SE-LIN-50-032
DI-24V-SE-LIN-50-032 Product Description

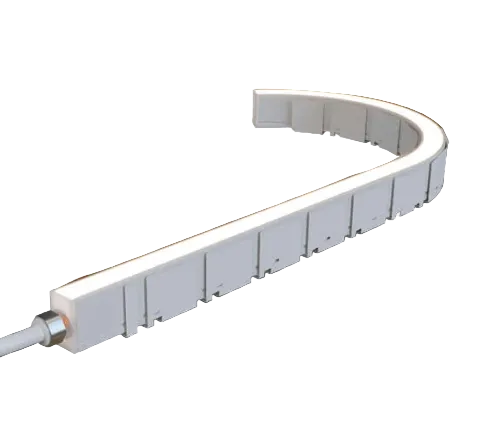

The Diode LED DI-24V-SE-LIN-50-032 is a premium LINAIRE® Flex Side Bend linear light engine designed for architectural lighting applications requiring smooth horizontal curves and seamless, dot-free illumination. Operating on 24V DC constant voltage, this flexible side-bending light engine produces a crisp 5000K daylight color temperature while delivering consistent illumination for both indoor and outdoor installations.
Specifications:
Brand: DIODE LED
Manufacturer Part Number: DI-24V-SE-LIN-50-032
Series: LINAIRE® Flex Side Bend
Product Type: Flexible Side-Bending Linear LED Light Engine
Input Voltage: 24V DC Constant Voltage
Length: 32.8 ft. Spool
Power Consumption: 2.6 Watts per Foot
Color Temperature: 5000K Daylight
Light Output: 132 Lumens per Foot
CRI: 90+
Dimmable: Yes
Bending Direction: Side Bend (Horizontal)
Cutting: Free Cut (Cut Anywhere)
Maximum Run Length: 32.8 ft.
LED Density: 36 LEDs per Foot
LED Chip Type: 2835 SMD
Dimensions: 0.45 x 0.79 in. (W x H)
Lead Wires: 96 in. White Bare Lead, 18/2 AWG (Input & Output)
Environment: Outdoor / Wet Location (IP65 Field Cut, IP67 Factory Assembly)
Rated Life: 50,000+ Hours (TM-21 / LM-80)
Certification: UL Listed 2108, UL Field Cuttable
Warranty: 5-Year Limited Warranty
About Diode LED:
Diode LED is America's largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
