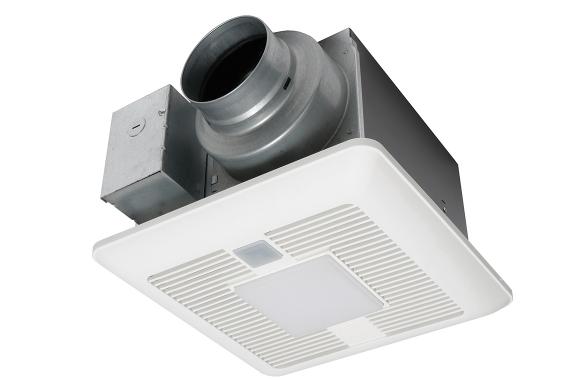

Panasonic FV-0511VQCL1 WhisperSense DC Multi-Speed Bath Fan, Energy Star Pick-A-Flow 50, 80, or 110 CFM Ventilation, LED Light & Humidity/Motion Sensor

2 sold in last 8 hours
Panasonic

FV-0511VQCL1

$310.99
$310.99
customers are viewing this product

WhisperSense® DC™ Precision Spot Ventilation fan/LED Light with built-in Dual Sensor Technology (Motion and Moisture) for automatic moisture and odor control. Features Pick-A-Flow™ speed selector switch to select required airflow (50-80-110 CFM) and ECM Motor with SmartFlow® technology for optimum performance. Can be used to comply with the latest codes and standards.

KEY FEATURES:

Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow Speed Selector (50-80-110 CFM) combined with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
Dual Sensor Technology (Motion & Moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling

    SPECIFICATIONS:

    Static Pressure in inches w.g. 0.1|0.25|0.1|0.25|0.1|0.25
    Air Volume (CFM) 110|110|80|83|50|50
    Noise (Sones) 0.4|0.9|<0.3|0.6|<0.3|0.4
    Power Consumption (Watts) 10.9|16.1|6.0|11.0|3.9|7.1
    Energy Efficiency (CFM/Watt) 10.3|7.0|13.7|7.7|14.1|7.8
    Speed (RPM) 1342 1480 1016|1268|867|1185|768|1097
    Current (Amps) 0.18|0.26|0.11|0.19|0.07|0.12
    Power Rating (V/Hz) 120/60
    Motor Type (AC/DC) DC
    Duct Diameter 4" or 6"
    Mounting Opening (in sq.) 10-1/2"
    Grille Size (in sq.) 13"
    MAX. Current (Amps) 0.30
    Type of Motor Bearing Ball
    Thermal Fuse Protection Yes
    Blower Wheel Type Sirocco
    Lamp Watts 10.0
    Lumens (lm) 700
    Night Light 0.2
    Lumens Per Watt (LPW) 70
    Color Temperature (Kelvin) 3,000
    Color Rendering Index 90
    Rated Life (hours) 50,000
    Type of Lamp Socket LED Chip
    UL tub/Shower Enclosure Yes
    Washington VIAQ Code Yes
    California Title 24 Compliant Yes
    Mfg in ISO 9001 Certified Facility Yes
    Gross Weight (lbs) 11.9
    ENERGY STAR Qualified Yes
