Westgate SFX-G12AD-300-500W-50K
SFX-G12AD-300-500W-50K Product Description

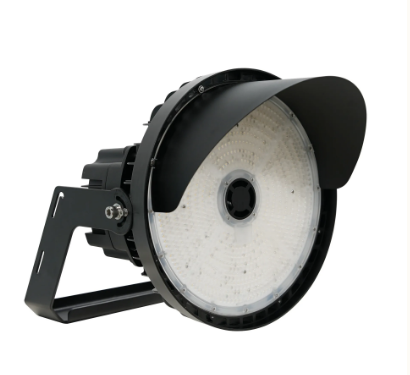

G12 Adjustable Distribution Angle Stadium Light Power Select 300/400/500W 50K 120-277V is a high-performance outdoor LED lighting solution from Westgate Manufacturing, designed for stadiums, sports fields, industrial facilities, large parking areas, and other high-mast lighting applications. Featuring selectable power options of 300W, 400W, and 500W with an outstanding 155 lumens per watt efficiency, this fixture delivers powerful illumination while reducing energy consumption.
Specifications:
SKU: SFX-G12AD-300-500W-50K
Brand: Westgate
Power Selectable: 300W / 400W / 500W
Wattage Adjustable: 25% to 100%
Input Voltage: 100-277VAC, 50/60Hz
Dimming: 0-10V
Power Factor: ≥0.9
THD: ≤20%
Flicker: <5%
Driver Surge Protection: 6kV, L/N-PE and L-N
Optional Surge Protection: 10kV / 20kV
Integral Sensor Receptacle
Optional Zhaga Receptacle
Operating Temperature: -40-degree F to 122-degree F
Color Temperature: 5000K
Total Lumens: 46,500 / 62,000 / 77,500 LM
Efficacy: 155 LM/W
Adjustable Beam Angle: 30-degree / 40-degree / 50-degree / 60-degree
Beam Performance: 150 LM/W at 30-degree, 170 LM/W at 40-degree, 165 LM/W at 50-degree, 155 LM/W at 60-degree
CRI: >70
LED Source: Lumileds SMD2835
LED Quantity: 1,200 pcs
BUG Rating: B5-U0-G5
Distribution: NEMA 4 Standard (Optional NEMA 5)
Optical Lens: PC
Housing: Die-Cast Aluminum
Finish: Black
IP Rating: IP66, Wet Location
Adjustable Mounting Bracket
Fixture Size: 16.1-inch L x 16.4-inch W x 14.4-inch D
About Westgate:
Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.
