Westgate SCXT-L2FT-20-40W-MCTP-D-DL-BK

SCXT-L2FT-20-40W-MCTP-D-DL-BK Product Description

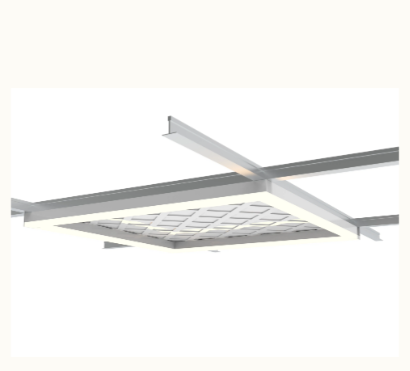

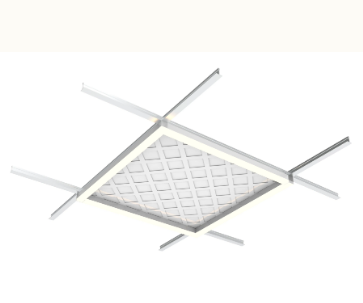

Westgate Manufacturing SCXT 2 Foot L 15/16 Grid Linear Wattage/CCT Selectable 20W/30W/40W 3000K/3500K/4000K Drop Lens Black

Specifications:

SKU: SCXT-L2FT-20-40W-MCTP-D-DL-BK
UPC: 840378321150
Voltage: 120-277VAC 50/60Hz
Wattage: 20W/30W/40W
Power Factor: >0.95
Total Harmonic Distortion: ≤ 20 %
Efficacy: 110 LM/W
Low Profile Modern Design
Aluminum Housing With Matte White Finish
Custom Colors Available
Lens Snaps into Housing
Mounting Options: Surface, Suspended, Recessed
IP Rating: IP54
Each Fixture Comes With a 6-1/2” Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
External Driver needed. Calculate the total wattage and pick adequate driver(s) as power supply. each driver has 4 ports for 4 separate fixtures.
Do not exceed the maximum wattage of the driver
Order The SCXT-TGRID-SP1 To Install The Driver On Top Of a T-Bar. Or Install The Driver On a Joist
Two T-Bar clips attached on top of the fixture ready to install on the grid
Can be linked (W/ endcap on, not seamless) coupling bracket incl.
Operating Temperature: -13°F~104°F
Dimmable: 0~10V Dimming
Total Lumens: 2200LM/3300LM/440
