Westgate SCXT-8FT-40-80W-MCTP-D-DL-BK

SCXT-8FT-40-80W-MCTP-D-DL-BK Product Description

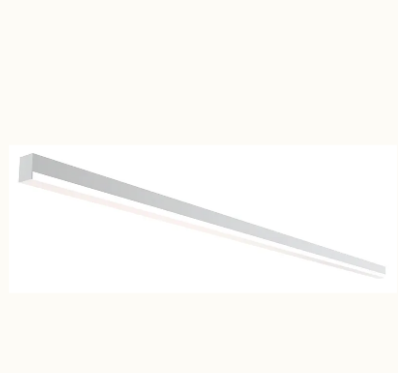

Westgate Manufacturing SCXT 8 Foot 15/16 Grid Linear Wattage/CCT Selectable 20W/30W/40W 3000K/3500K/4000K Drop Lens Black

Specifications:

SKU: SCXT-8FT-40-80W-MCTP-D-DL-BK
UPC: 840378321143
Voltage: 120-277VAC 50/60Hz
Wattage: 40W/60W/80W
Power Factor: >0.95
Total Harmonic Distortion: ≤ 20 %
Efficacy: 110 LM/W
Low Profile Modern Design
Aluminum Housing With Matte White Finish
Custom Colors Available
Lens Snaps into Housing

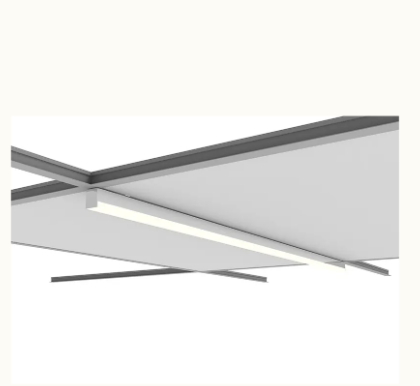

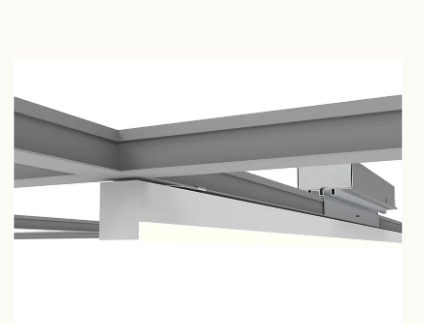

Mounting Options: Surface, Suspended, Recessed
IP Rating: IP54
Two 6.6 FT (2 Meters) Lead Cables Are Provided. Each Powers Half Of The Fixture. Position The Driver Box Near The Fixture’s Center for the two cables to reach it. If you Need To Install The Driver Box Closer To One End, You Must Order An Extension Cable And RJ11 Coupling For The Cable From The Far End To Reach The Driver Box And Plug Into It
Each Fixture Comes With a 6-1/2” Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
External Driver Needed. Calculate The Total Wattage And Pick Adequate Driver(s) As Power Supply. Each Driver Has 4 Ports For 4 Separate Fixtures.
Do Not Exceed The Maximum Wattage Of The Driver
