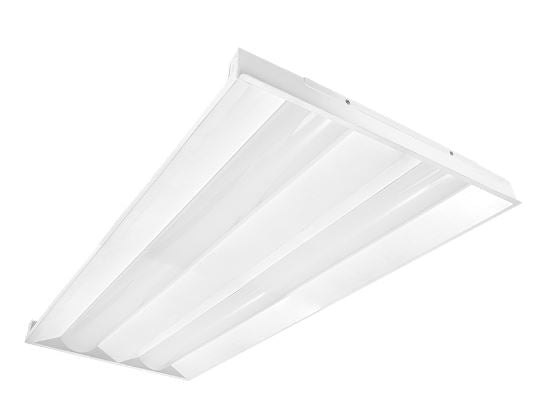

Westgate LTRD-2X4-MCTP

LTRD-2X4-MCTP Product Description

Ideal for both new construction and remodel/replacement of
fluorescent troffers in commercial office spaces, schools,
healthcare facilities and retail merchandising areas.

SPECIFICATIONS:

Electrical:
• Voltage: 120-277VAC 50/60Hz
• Wattage: 30W/ 40W/ 50W
• Power Factor: >0.92
• Efficacy: 125 LPW

Mechanical:
• High Quality LED Chips Provide High Efficiency, Heat
Dissipation, Stability, and Lumen Maintenance
• Individual, Pure Aluminum Heat Sinks Offers Heat
Transmission Faster Than Die Cast Steel
• Driver disconnect provided where required to comply with
US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers
Unique Beam Angles and Reduces Glare
• Polycarbonate Lens
• Operating Temp: -22°F to 104°F

Lighting:
• Dimmable: 0~10V Dimming
• Total Lumens: 3750LM/ 5000LM/ 6250LM
• Multi CCT: Selectable Multi-CCT & Power Switches
Inside The Driver Box
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• IP Rating: IP20 Indoor use only

:: 5-year warranty

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
