Westgate LPNP-2X2-MCTP-SR

LPNP-2X2-MCTP-SR Product Description

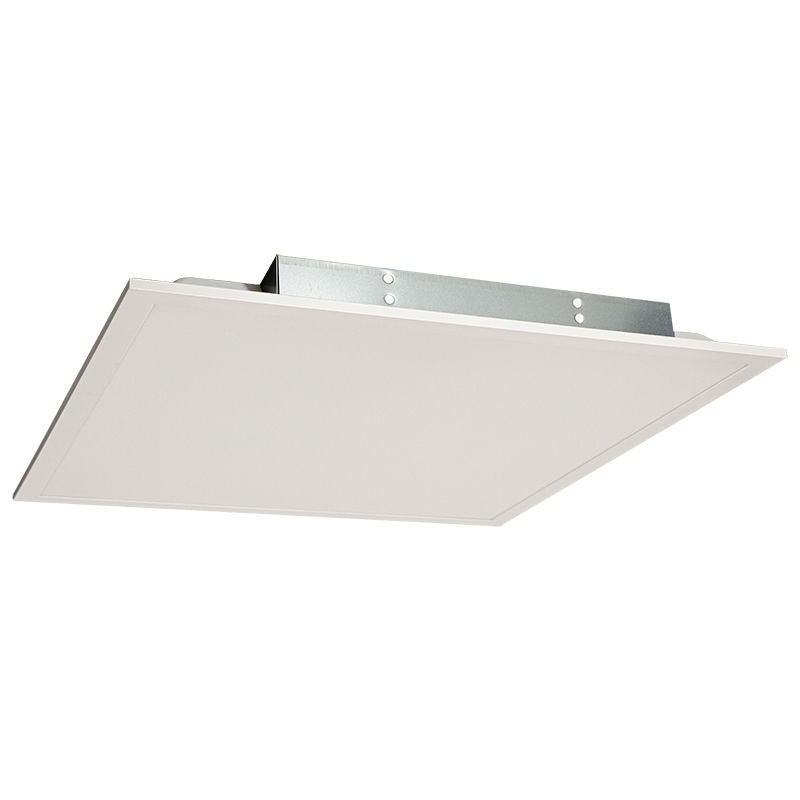

Westgate Manufacturing LED Premium 2X2 Flat Panel 4375Lm Wattage/CCT Selectable 20W/30W/35W 3500K/4000K/5000K 80 CRI 0-10V Sensor Ready White

Specifications:

Manufacturer: Westgate
SKU: LPNP-2X2-MCTP-SR
UPC: 840378310635.
Voltage: AC120V-277V 50/60Hz
Wattage: 19W/25W/32W
Fixture Operating Voltage: 36VDC
Rated Input Current (mA): 337/ 253/ 168mA
Total Harmonic Distortion: ≤ 20 %
Power Factor: >0.90
Efficacy: 125 LPW
White Finish
Audio-Jack Type Socket Pre-Installed on The Side of The
Panel, See Motion Sensor Accessories
Earthquake Hooks and Suspension Hooks pre-installed
External Driver Mounted On Top
Operating Temperature: -68ºF~104ºF
Surge Protector: 1KV
Rated life: 50,000 hrs
Dimmable: 0~10V Dimming
Total Lumens: 4000LM Max
Color Temperatures: 3500K/4000K/5000K
Multi CCT & Multi Power (selectable switch on back of fixture)
Color Rendering Index: CRI ≥ 80
5-Year Warranty
Beam Angle: 110°

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.
