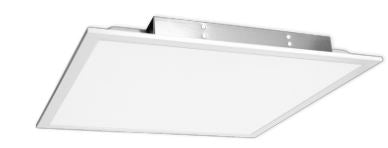

Westgate LPNG-2X2-MCTP

LPNG-2X2-MCTP Product Description

This indoor commercial LED Blacklit panel light is ideal for hotels,
offices, retail outlets, restaurants, parking garages, storage
rooms, conference rooms, education facilities, and more.

SPECIFICATIONS:

Electrical SPECIFICATIONS:
• Voltage: AC100V-277V 50/60Hz
• Power Factor: >0.90
• Wattage: 20W/ 30W/ 40W
• Efficacy: 105 LPW
• Fixture Operating Voltage: 36VDC
• Rated Input Current (mA): 337/ 253/ 168mA
• Total Harmonic Distortion: ≤ 20 %

Mechanical:
• White Finish
• Earthquake Hooks and Suspension Hooks pre-installed
• External driver mounted on top
• Operating Temperature: -68ºF~104ºF
• Surge Protector: 1KV, 2.5KV
• Rated life: 50,000 hrs

Lighting:
• Dimmable: 0~10V Dimming
• Total Lumens: 2100LM/ 3150LM/ 4200LM
• Color Temperatures: 3500K/ 4000K/ 5000K
• Multi CCT & Multi Power
(selectable switch on back of fixture)
• Color Rendering Index: CRI ≥ 80
• 5-Year Warranty
• Beam Angle: 110°

Warranty : 5 Year Warranty
