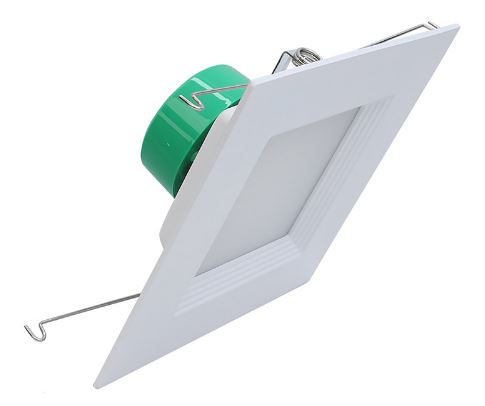

Westgate Lighting SDL6-BF-MCT5

SDL6-BF-MCT5 Product Description

LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

SPECIFICATIONS:

Electrical:
• Voltage: 120V AC
• Output Voltage: 36VDC
• Power Factor: >0.90
• Wattage: 15W
• Efficacy: 80 LPW
• Total Harmonic Distortion: ≤15 %

Mechanical:
• Spun Aluminum with White Powder Coat Finish
• Includes 8” Medium Base E-26 Screw-in Adapter That
Fits any Standard Incandescent Down-light
• Maximum Ambient Temperature: 104°F
• Fits in Standard 4” Recessed Housings
• Rated life: 50,000 hrs
• Damp Location

Lighting:
• Dimming: TRIAC Dimming (Using Standard TRIAC
LED Dimmers)
• LED: Epistar Chip (COB) and Driver—35,000-hour
Design Life
• Can Rotate after Installation to Align
• Optics: White Translucent Acrylic Lens
• Total Lumens: 805 LM Max.
• Multi Color Temperatures: 2700K/ 3000K/ 3500K/
4000K/ 5000K
• Multi CCT (Selectable Switch on the Back of the
Driver )
• Color Rendering Index: CRI ≥ 90

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.
