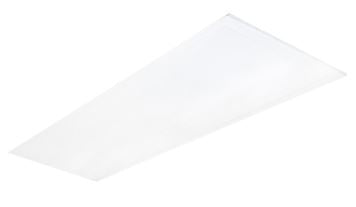

Westgate Lighting LPNG-1X4-MCTP

LPNG-1X4-MCTP Product Description

This indoor commercial lighting is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more.

SPECIFICATIONS:

Electrical:
• Voltage: AC120V-277V 50/60Hz
• Power Factor: >0.90
• Wattage: 20W/ 30W/ 40W
• Efficacy: 130/ 127/ 120 LPW
• Fixture Operating Voltage: 36VDC
• Rated Input Current (mA): 337/ 253/ 168mA
• Total Harmonic Distortion: ≤ 20 %

Mechanical:
• White Finish
• Earthquake Hooks and Suspension Hooks pre-installed
• External driver mounted on top
• Operating Temperature: -68ºF~104ºF
• Surge Protector: 1KV, 2.5KV
• Rated life: 50,000 hrs

Lighting:
• Dimmable: 0~10V Dimming
• Total Lumens: 2600LM/ 3800LM/ 4800LM
• Color Temperatures: 3500K/ 4000K/ 5000K
• Multi CCT & Multi Power
(selectable switch on back of fixture)
• Color Rendering Index: CRI ≥ 80
• 5-Year Warranty
• Beam Angle: 110°

About Westgate:

Westgate's full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
