Westgate Lighting ELB-2048

ELB-2048 Product Description

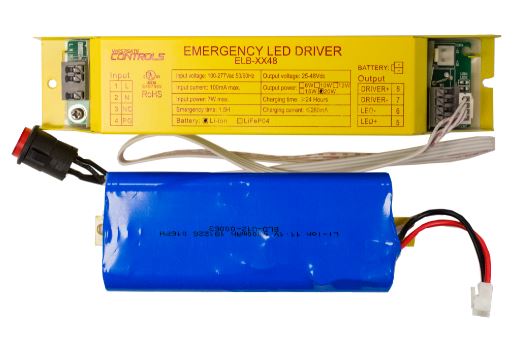

Westgate Manufacturing LED Emergency 2 Piece Backup System 20W 48V DC 90 Minute

Features:

Meet most of safety standards for lighting
Standard CSA C22.2 NO.141 UL924
External lithium battery
Battery protections over charge protection over
discharge protection short circuit protection
Indicator shows a variety working modes
The batteries Meet 500 cycles of standard CH and
standard DCH
RoHS compliant
Emergency 1.5 H

SPECIFICATIONS:

Universal Input Voltage 100 277Vac 50 60Hz
AC Input Current 100mA max.
AC Input Power Rating 7.0W max.
Output Current and Voltage 420-800mA 25 48Vdc -
Output Power 20W
Emergency Time ≥1.5H
Full Warranty 5 Years
Test Switch Indicator Light
Illuminated Test Switch,
indicator Light
Battery
Li-ion battery-11.1V/4000mAH
Battery Charging Current
250mA max.
Charging Time
≥24Hours
Temperature Rating Ambient
Li-ion 0°C to +40°C (32°F to 104°F)
Dimensions
7.4''x1.5''x1.1'' 188mmx38mmx29mm ( )
Weight
1.1bs(0.5kg)
