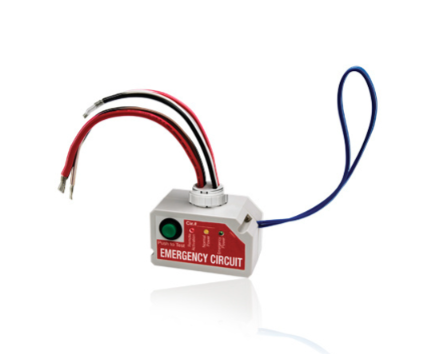

Wattstopper ELCU-200
ELCU-200 Product Description
Wattstopper’s Emergency Lighting Control Unit is a self-contained device that allows any standard lighting control device to control emergency lighting in conjunction with normal lighting in any area within a building.
Specifications:
Brand: Wattstopper
Product Line: Wattstopper
Product Series: ELCU
Product Type: Emergency Load Controller
Color: Red, White
Material: ABS
Application Sector: Commercial
Country of Origin: China
Features: Push-to-Test on device
Installation Location: Above ceiling
Standard & Compliance: UL 924, NEC, OSHA, NFPA 101, UL 2043
RoHS Compliant: Yes (Meets RoHS Directive 2011/65/EU and 2015/863)
UPC Number: 754182923052
Product Depth (US): 1.9 in
Product Height (US): 3.0 in
Product Width (US): 2.2 in
Product Volume (US): 26.1 cu in
Product Weight (US): 0.3 lb
Wire Connection Type: Flying leads
Compatibility: EMTS-100
Contact Configuration: N-C
Contact Rating: 24 VDC
Indoor/Outdoor: Indoor
Input Voltage: 120–277 VAC
Line Frequency: 50/60 Hz
Load Rating: 10 A @ 120 VAC, 20 A @ 277 VAC
Location Rating: Dry
Mounting Type: 1/2 in knockout
Number of Relays: 0
Operating Temperature Range: 32°F to 131°F
Operating Humidity: 5–95% RH (non-condensing)
Storage Temperature Range: 23°F to 176°F
