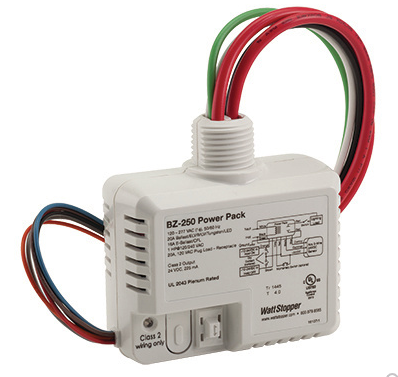

Wattstopper BZ-250
BZ-250 Product Description
The BZ-250 power pack switches lighting or plug loads On and Off in response to low voltage control inputs, and provides up to 225mA at 24VDC to power Wattstopper occupancy sensors. It enables Manual-On sequences of operation, as well as HoldOn, Hold-Off and load shed applications when used with lighting control panels or building automation systems. This device is constructed with environmentally friendly materials and is RoHS-compliant.
Specifications:
Brand: Wattstopper
SKU: BZ-250
Color White
Product Series BZ
Type Power Pack
Material Plastic
Application Sector Commercial
Product Line Wattstopper
Installation Location Ceiling
Warranty Type 5-Year
UPC Number 754182938049
Dimensions
Product Depth US 1.4 in
Product Height US 3.0 in
Product Volume US 42.0 cu in
Product Width US 3.0 in
Product Weight US 0.4 lb
Additional Information
Technical Information
Wire Connection Type Wire Leads
Connection Type Wired
Indoor/Outdoor Indoor
Input Voltage 120 to 277 VAC
Line Frequency 50 Hz, 60 Hz
Mounting Type 1/2 in Knockout
Operating Temperature -4°-131°F
Operating Temperature Max 131 °F
Operating Temperature Min -4 °F
Operating Humidity 5-95% RH (Non-Condensing)
Output Voltage 24 VDC
Storage Temperature -40° - 176° F
Wire Gauge 18-22 AWG
Features:
Hold-On and Hold-Off inputs
Mechanically held latching relay with selectable power loss operation: On, Off, or last state
Load On/Off button to verify wiring
Auto-On or Manual-On operation for code compliance
Zero crossing and for reliability and increased product life
Low voltage over current protection
