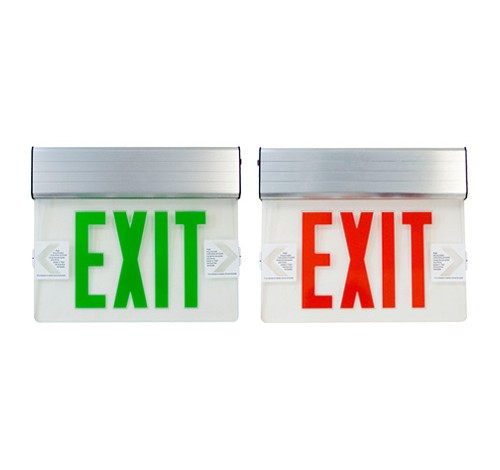

Utopia Lighting EL LED Edge-lite Exit Sign Battery Back up Operation
2
sold in last
8
hours
ELSG-1-AL(BAB)
$100.70
customers are viewing this product
PRODUCT DESCRIPTION
Ideal for commercial where economy, appearance and the ultimate ease of installation and maintenance are desired. LED compact and decorative design Edge-Lite exit sign series utilizes a unique illumination design in an architecturally aluminum housing.
FEATURES:
Energy efficient LED compact and decorative design.
Rigid aluminum housing and etched, 13” clear acrylic edge-lit panel.
Removable directional indicators, letters 6” height with 3/4” stroke and chevron directional arrows.
Single or double face configuration. Mirrored separator panel to simulate clear background for double-face signs and clear panel for single-face signs.
90+ minute emergency operation.
Available in white or black housing.
SPECIFICATIONS:
MOUNTING
Aluminum mounting canopy included for top, end or back mount
ELECTRICAL
120/277V dual voltage operation standard.
Charge rate and power AC mode green LED indicator light, battery Disconnected mode red LED indicator light.
Manual push-to-test switch provides for on-demand visual inspection of 30-second testing.
LAMPS
3 Watts LED at 120V, LED lamps are operating in normal (AC input) and emergency (DC input) modes.
Ultra-bright, energy efficient, long-life Red or Green LEDs with more then 10 year lifecycle.
LEDs have a minimum rated lamp life of 100,000 hours.
BATTERY
Maintenance-free and rechargeable nickel-cadmium battery (self-powered) on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
OPTION
SDT :Self-diagnostic testing, continually diagnoses unit’s performance and test system (Self-diagnostic testing for 30-second discharge once every 30-days and 30-minutes every six months) to ensure reliable operation and to meet electrical and life safety code.
Dual circuit option on the AC-only unit enables it to be connected to two different (primary and secondary, one acting as a back-up for the other) supplies at the same time.
LISTING
5 years limited warranty on materials and all electronics. Battery pro rated for five years.
LED lamps are 25 years limited warranty.
UL listed for damp locations & meets UL924, National Electrical Code, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
Certified to CEC under Title 20 Regulations.
ARRA compliant (optional).
FEATURES:
Energy efficient LED compact and decorative design.
Rigid aluminum housing and etched, 13” clear acrylic edge-lit panel.
Removable directional indicators, letters 6” height with 3/4” stroke and chevron directional arrows.
Single or double face configuration. Mirrored separator panel to simulate clear background for double-face signs and clear panel for single-face signs.
90+ minute emergency operation.
Available in white or black housing.
SPECIFICATIONS:
MOUNTING
Aluminum mounting canopy included for top, end or back mount
ELECTRICAL
120/277V dual voltage operation standard.
Charge rate and power AC mode green LED indicator light, battery Disconnected mode red LED indicator light.
Manual push-to-test switch provides for on-demand visual inspection of 30-second testing.
LAMPS
3 Watts LED at 120V, LED lamps are operating in normal (AC input) and emergency (DC input) modes.
Ultra-bright, energy efficient, long-life Red or Green LEDs with more then 10 year lifecycle.
LEDs have a minimum rated lamp life of 100,000 hours.
BATTERY
Maintenance-free and rechargeable nickel-cadmium battery (self-powered) on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
OPTION
SDT :Self-diagnostic testing, continually diagnoses unit’s performance and test system (Self-diagnostic testing for 30-second discharge once every 30-days and 30-minutes every six months) to ensure reliable operation and to meet electrical and life safety code.
Dual circuit option on the AC-only unit enables it to be connected to two different (primary and secondary, one acting as a back-up for the other) supplies at the same time.
LISTING
5 years limited warranty on materials and all electronics. Battery pro rated for five years.
LED lamps are 25 years limited warranty.
UL listed for damp locations & meets UL924, National Electrical Code, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
Certified to CEC under Title 20 Regulations.
ARRA compliant (optional).
