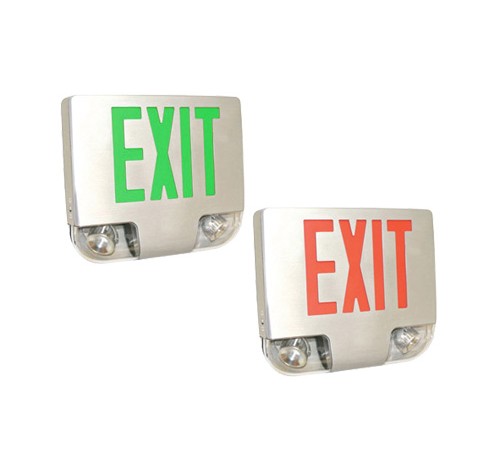

Utopia Lighting CKXTE Die Cast Aluminum LED Exit & Emergency Light Combo
2
sold in last
8
hours
CKXTEU-1-G-A-A-EM
$62.93
customers are viewing this product
PRODUCT DESCRIPTION
Die cast aluminum housing with LED exit and LED emergency light. Unique new design provides spec-grade die cast EXIT sign with LED emergency lights in low profile housing.
FEATURES:
Energy efficient LED, Spec-grade and premium decorative design.
Extruded aluminum housing.
Spec-grade curved faceplate.
Easily removable chevron directional indicators. Unique design allows double face conversion in the field. Quick-snap face plate closure.
Single or double face configuration. 90+ minute emergency operation.
Available in white or black housing.
SPECIFICATIONS:
MOUNTING
Aluminum mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.
ELECTRICAL
120/277V dual voltage operation standard.
Charge rate and power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
LAMPS
Ultra bright LED lamps are operating in normal (AC input) and emergency (DC input) modes.
Ultra-bright, energy efficient, long-life Red or Green LEDs with more then 10 year lifecycle.
LEDs have a minimum rated lamp life of 100,000 hours.
3 watt (1LED x 3W) per head.
BATTERY
8.4V long life, maintenance-free and rechargeable Ni-Cad Battery on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
OPTION
RC : Remote capacity of up to 3.0 watts.
LISTING
5 years limited warranty on materials and all electronics.
LED lamps are 25 years limited warranty.
UL listed for damp locations.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Certified to CEC under Title 20 Regulations.
FEATURES:
Energy efficient LED, Spec-grade and premium decorative design.
Extruded aluminum housing.
Spec-grade curved faceplate.
Easily removable chevron directional indicators. Unique design allows double face conversion in the field. Quick-snap face plate closure.
Single or double face configuration. 90+ minute emergency operation.
Available in white or black housing.
SPECIFICATIONS:
MOUNTING
Aluminum mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.
ELECTRICAL
120/277V dual voltage operation standard.
Charge rate and power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
LAMPS
Ultra bright LED lamps are operating in normal (AC input) and emergency (DC input) modes.
Ultra-bright, energy efficient, long-life Red or Green LEDs with more then 10 year lifecycle.
LEDs have a minimum rated lamp life of 100,000 hours.
3 watt (1LED x 3W) per head.
BATTERY
8.4V long life, maintenance-free and rechargeable Ni-Cad Battery on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
OPTION
RC : Remote capacity of up to 3.0 watts.
LISTING
5 years limited warranty on materials and all electronics.
LED lamps are 25 years limited warranty.
UL listed for damp locations.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Certified to CEC under Title 20 Regulations.
