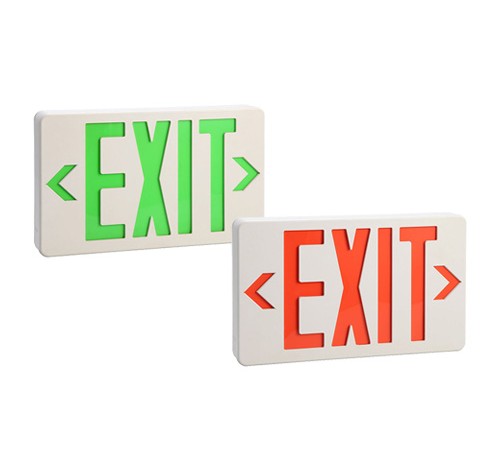

Utopia Lighting CEX Low Profile Exit Sign
2
sold in last
8
hours
CEXG-WH (AC ONLY)
$45.48
customers are viewing this product
PRODUCT DESCRIPTION
Ideal for commercial where economy, appearance and the ultimate ease of installation and maintenance are desired. Solid-state electronics offer both reliability and low-cost performance.
FEATURES:
Thermoplastic LED Exit Sign Compact size low-profile design LED exit sign.
Innovative snap-together design allows for fast and easy installation.
Letters 6” height with 3/4” stroke.
Easily removable snap-out knockouts and chevron directional arrows.
Single or double face configuration.
90+ minute emergency operation.
Available in white or black housing.
SPECIFICATIONS:
MOUNTING
Easy snap mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.
ELECTRICAL
120/277V dual voltage operation standard.
Charge rate and power AC mode green LED indicator light, battery Disconnected mode red LED indicator light.
Manual push-to-test switch provides for on-demand visual inspection of 30-second testing.
LAMPS
Energy consumption of 3.2W for red letters and 3.8W for green letters.
LED lamps are operating in normal (AC input) and emergency (DC input) modes.
Ultra-bright, energy efficient, long-life Red or Green LEDs with more then 10 year lifecycle.
LEDs have a minimum rated lamp life of 100,000 hours.
BATTERY
4.8V long-life, maintenance-free, rechargeable nickel-cadmium battery (self-powered) on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
LVD (Low Voltage Disconnection) prevents battery from deep discharge.
OPTION
SDT: Self-diagnostic testing, continually diagnoses unit’s performance and test system (Self-diagnostic testing for 30-second discharge once every 30-days and 30-minutes every six months) to ensure reliable operation and to meet electrical and life safety code.
- Dual circuit option on the AC-only unit enables it to be connected to two different (primary and secondary, one acting as a back-up for the other) supplies at the same time.
LISTING
5 years limited warranty on materials and all electronics. Battery prorated for five years.
LED lamps are 25 years limited warranty.
UL listed for damp locations. (0°C –50°C) & meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
ARRA compliant (optional).
FEATURES:
Thermoplastic LED Exit Sign Compact size low-profile design LED exit sign.
Innovative snap-together design allows for fast and easy installation.
Letters 6” height with 3/4” stroke.
Easily removable snap-out knockouts and chevron directional arrows.
Single or double face configuration.
90+ minute emergency operation.
Available in white or black housing.
SPECIFICATIONS:
MOUNTING
Easy snap mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.
ELECTRICAL
120/277V dual voltage operation standard.
Charge rate and power AC mode green LED indicator light, battery Disconnected mode red LED indicator light.
Manual push-to-test switch provides for on-demand visual inspection of 30-second testing.
LAMPS
Energy consumption of 3.2W for red letters and 3.8W for green letters.
LED lamps are operating in normal (AC input) and emergency (DC input) modes.
Ultra-bright, energy efficient, long-life Red or Green LEDs with more then 10 year lifecycle.
LEDs have a minimum rated lamp life of 100,000 hours.
BATTERY
4.8V long-life, maintenance-free, rechargeable nickel-cadmium battery (self-powered) on emergency (EM) units.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
LVD (Low Voltage Disconnection) prevents battery from deep discharge.
OPTION
SDT: Self-diagnostic testing, continually diagnoses unit’s performance and test system (Self-diagnostic testing for 30-second discharge once every 30-days and 30-minutes every six months) to ensure reliable operation and to meet electrical and life safety code.
- Dual circuit option on the AC-only unit enables it to be connected to two different (primary and secondary, one acting as a back-up for the other) supplies at the same time.
LISTING
5 years limited warranty on materials and all electronics. Battery prorated for five years.
LED lamps are 25 years limited warranty.
UL listed for damp locations. (0°C –50°C) & meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
ARRA compliant (optional).
