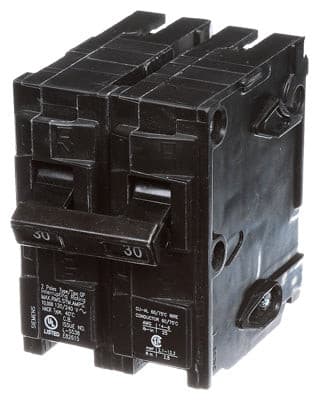

Siemens Q230

Q230 Product Description

Siemens plug in circuit breakers are intended for use in Siemens EQ, Siemens Ultimate, ITE, and Gould load centers or meter combinations. The double pole Siemens breakers may be used in 1 or 3-phase load centers and are 240V rated. To ensure the warranty on a Siemens panel is not voided, the use of Siemens breakers is required.

SPECIFICATION:

Manufacturer:  Siemens
SKU: Q230
UPC: 783643148383
Type :  Standard
Series : Series Q
Commercial/Residential : Residential
Voltage Rating :  120/240 VAC
Amperage Rating : 30 A
Interrupt Rating :  10 kA
Trip Type : Common
Number of Poles : 2
Connection Type :  Plug-In
Wire Size : 14 - 6 AWG
Terminal Type : Lug
Mounting Type :  Panel Board
Temperature Rating : 40 deg C
Dimensions : 3-1/8 Inch L x 2 Inch W x 3 Inch D
