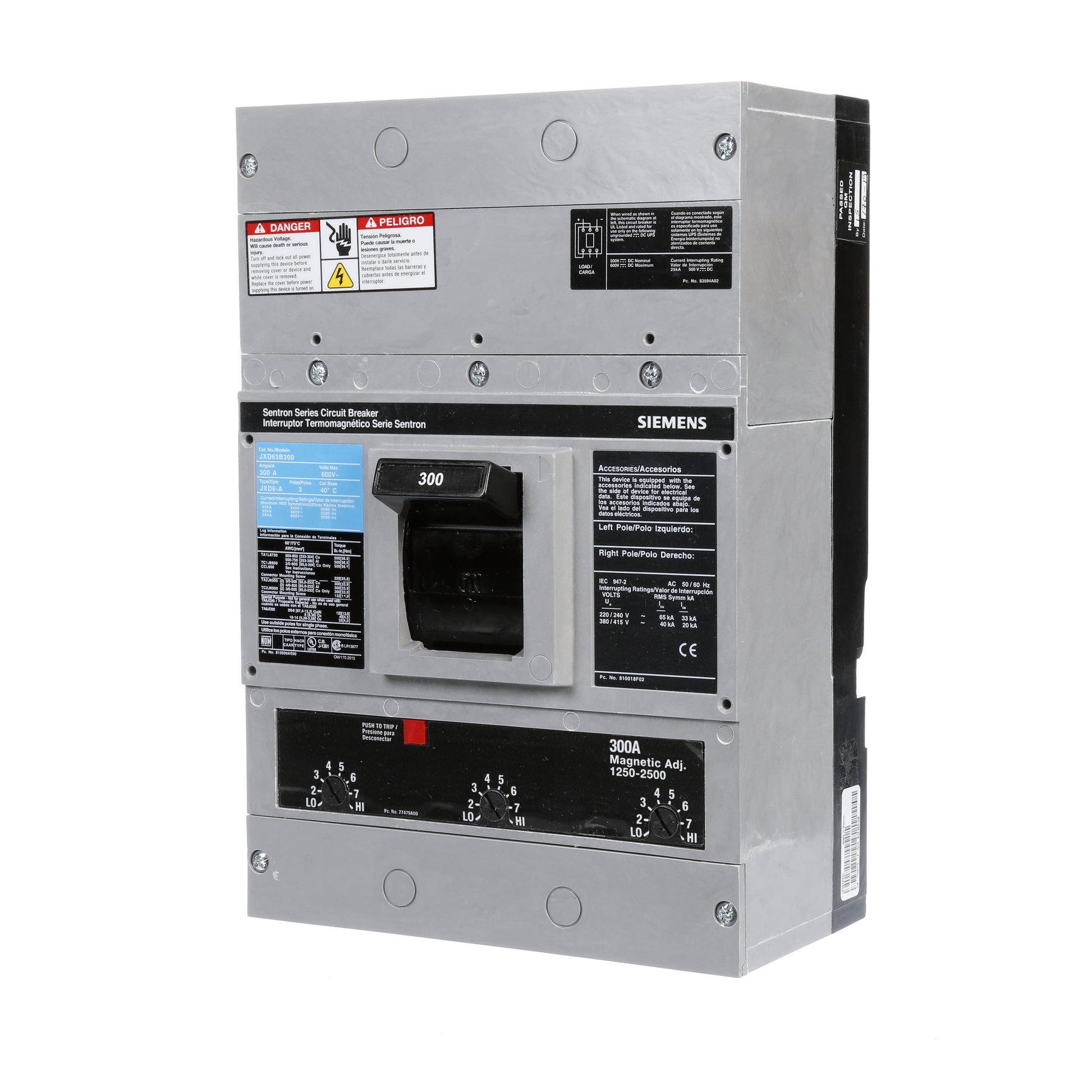

Siemens JXD63B300

JXD63B300 Product Description

Type JD Molded Case Circuit Breaker, 25kA @ 600V, 3 Poles, 300A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

SPECIFICATION:

Manufacturer:  Siemens
SKU: JXD63B300
UPC: 783643213074
Actuator : Varying
Amperage : 300 Amp
Applications : Standard 40C Breaker
Current: 300 Amp
Enclosure : Varying
Frame : JD
Frequency : 50/60 Hz
Interrupt Rating : 25 kAIC
Load Rating : N/A
Number of Poles : 3 Pole
Operating Temperature : 40C
Tc Connection : N/A
Temperature Rating : 40 degrees C
Trip Range : 1250 - 2500
Trip Type : Thermal Magnetic
Type : JXD6
Voltage : 250 Volt
Sub Brand : Sentron
Weight : 18.0500 lb
Height : 14.6 Inch
Length : 6.7 Inch
Width : 8.700
