Siemens HFXD63B200

HFXD63B200 Product Description

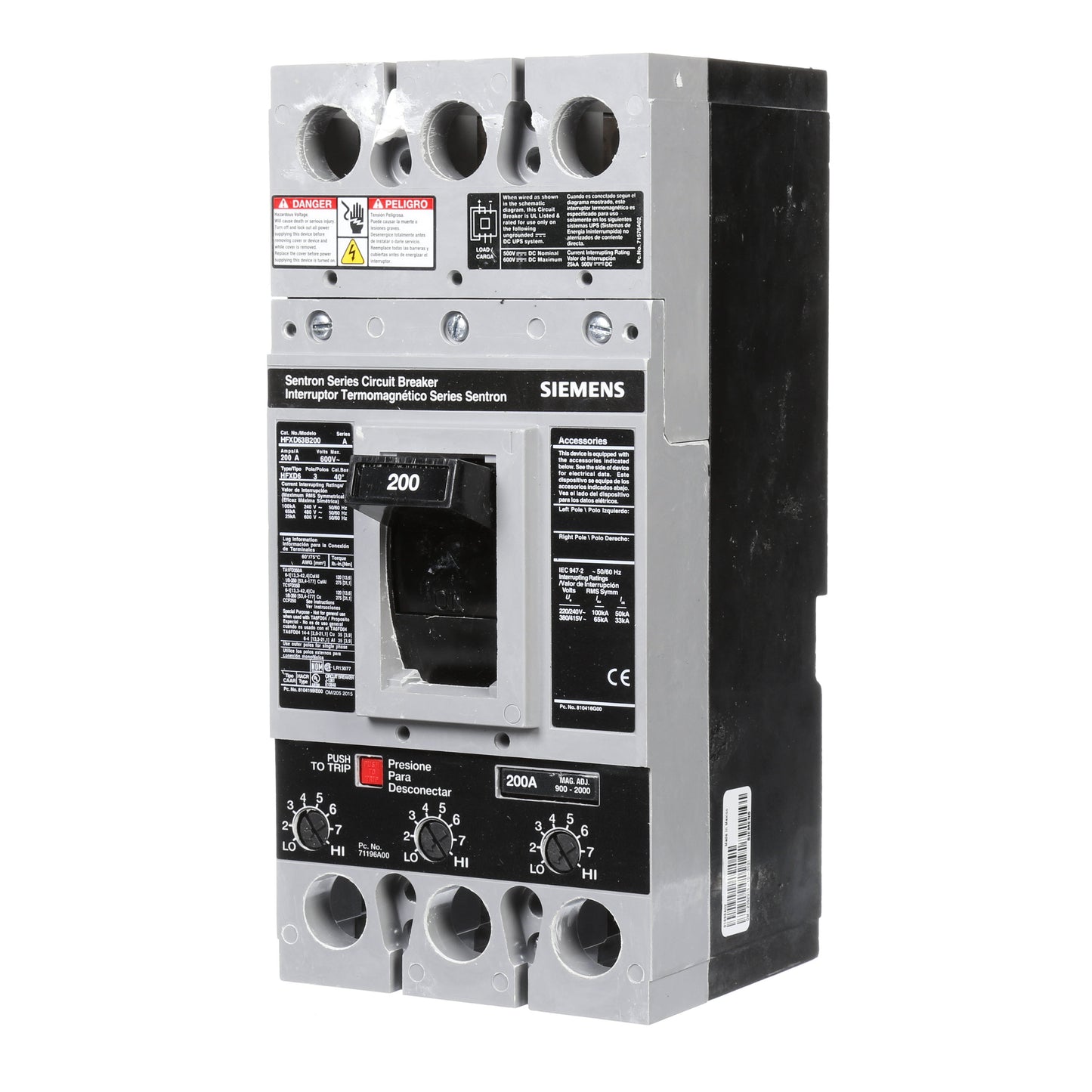

Siemens low voltage Sentron molded case circuit breaker with thermal - magnetic trip unit. Assembled standard 40 deg c breaker FD frame with high breaking capacity. 200A 3-pole (25KAIC at 600V) (65KAIC at 480V). Non-interchangeable trip unit. Special features: no lugs installed. Dimensions (w x h x d) in: 4.50 x 9.5 x 4.00.

SPECIFICATION:

Manufacturer:  Siemens
SKU: HFXD63B200
UPC: 783643318496
Actuator : Varying
Amperage : 200 Amp
Applications : Standard 40C Breaker
Current : 200 Amp
Enclosure : Varying
Frame : FD
Frequency : 50/60 Hz
Interrupt Rating : 25 kAIC
Load Rating : N/A
Number of Poles : 3 Pole
Operating Temperature : 40C
Standard : HACR
Tc Connection : N/A
Trip Range : 900-2000
Trip Type : Thermal-Magnetic
Type : HFXD6
Voltage : 500 Volt
Weight : 9.000 lb
Height : 6.9 Inch
Length : 11.1 Inch
Width : 5.600 in
