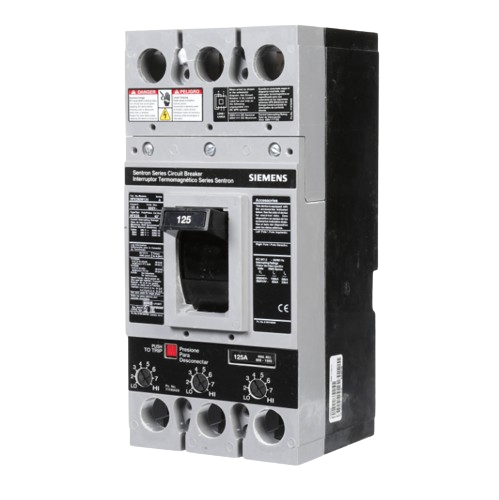

Siemens HFXD63B125

HFXD63B125 Product Description

Siemens low voltage sentron molded case circuit breaker with thermal - magnetic trip unit. Assembled standard 40 deg c breaker FD frame with high breaking capacity. 125A 3-pole (25KAIC at 600V) (65KAIC at 480V). Non-interchangeable trip unit. Special features: no lugs installed. Dimensions (w x h x d) in: 4.50 x 9.5 x 4.00.

SPECIFICATION:

Manufacturer:  Siemens
SKU: HFXD63B125
UPC: 783643318472
Actuator : Varying
Amperage : 125 Amp
Applications ; Standard 40C Breaker
Enclosure : Varying
Frame : FD
Frequency : 50/60 Hz
Interrupt Rating : 25 kAIC
Load Rating : N/A
Number of Poles : 3 Pole
Operating Temperature : 40C
Standard : HACR
Tc Connection : N/A
Trip Range : 800-1500
Trip Type : Thermal-Magnetic
Type : HFXD6
Voltage : 600 Volt
Weight : 8.950 lb
Height : 5.3 Inch
Length : 11.2 Inch
Width : 7.000 in
Country of Origin : Mexico
