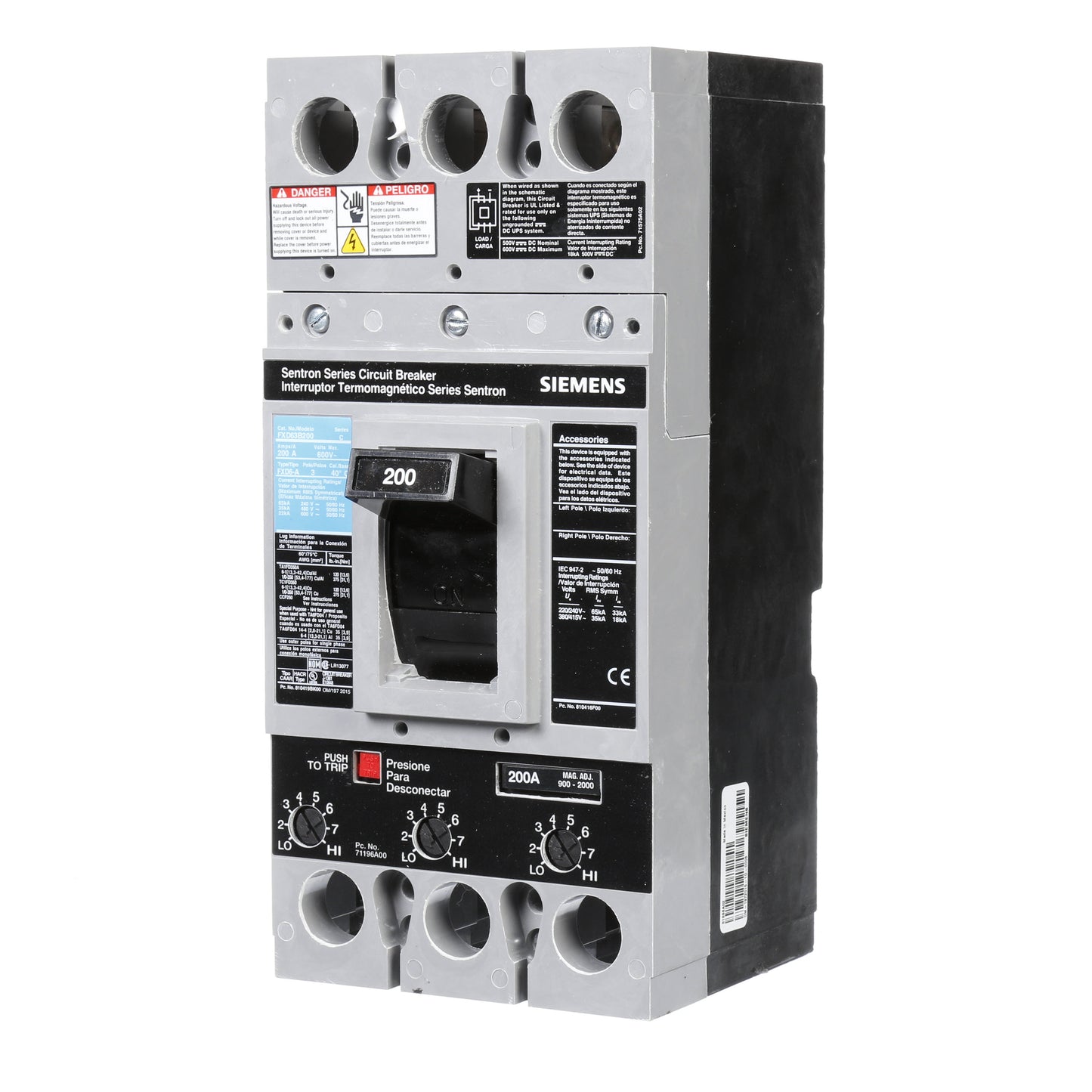

Siemens FXD63B200

FXD63B200 Product Description

Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 200A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Specifications:

Brand Siemens
Actuator Varying
Amperage 200 Amp
Applications Standard 40C Breaker
Current 200 Amp
Enclosure Varying
Frame FD
Frequency 50/60 Hz
Interrupt Rating 22 kAIC
Load Rating N/A
Number of Poles 3 Pole
Operating Temperature 40C
Tc Connection N/A
Temperature Rating 40 degrees C
Trip Range 900 - 2000 A
Trip Type Thermal Magnetic
Type FXD6
Voltage 600 Volt
