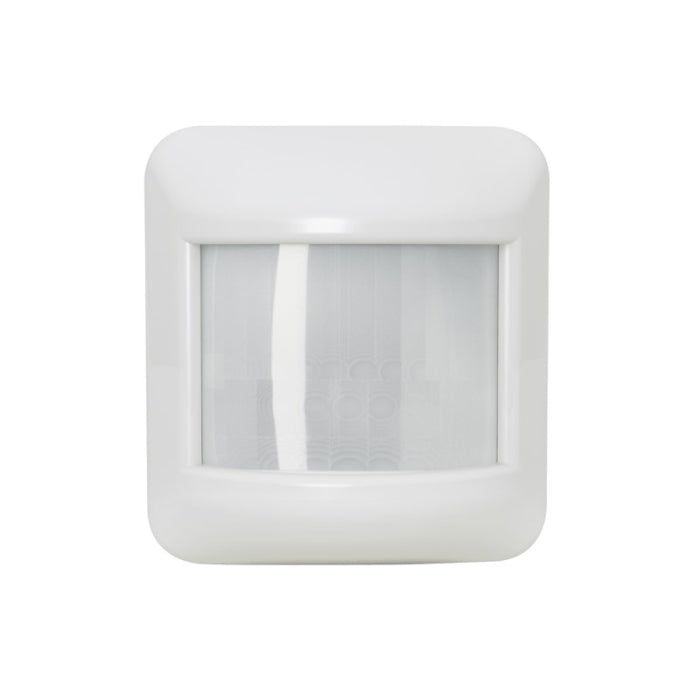

SensorWorx SWX-402-B Occupancy Sensor - PIR - Hallway Coverage - Battery Powered
SWX-402-B
SensorWorx SWX-402-B
SWX-402-B Product Description
SensorWorx wall mount occupancy sensors enable mounting to a wall, corner, junction box, or conduit. This flexibility reduces contractor installation time and provides a secure and clean finished appearance. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.
Passive infrared detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified the sensor signals a connected power/relay pack to switch on the connected lighting. A single sensor may provide sufficient coverage in many spaces, however, multiple low voltage sensors can be easily wired together to provide improved coverage for large or irregular shaped spaces.
Wide View (120°) Coverage Pattern
Battery powered operation: this wireless sensor can be linked to one or more wireless load controllers (such as the SWX-851 wireless wall switch, or a SWX-950 series wireless power pack). Additionally, these sensors can be configured to work in applications with other wireless or wired ceiling, corner, or hallway sensors to provide extended coverage in large or irregularly shaped spaces. With a 10 year battery life design for PIR only models. If the sensor’s battery life reaches 10%, all wirelessly linked load controllers will blink lights on/off/on upon initial occupancy as a replacement warning. Replacement batteries are available at most retailers or home centers where batteries are sold or from. Additionally, when linked to wireless wall switch load controllers (SWX-851) or to wireless power packs (SWX-950 series) and remote wireless wall stations, these sensors can be used to meet ASHRAE 90.1, IECC, and Title 24 energy code requirements that require vacancy operation.
Specifications:
Manufacturer: SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR)
Manufacturer Part Number: SWX-402-B
Input Voltage: Battery Powered
Color: White
Detection Zone: 180 Degrees
Sensor Coverage: 100 Linear Ft
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant
Made in USA: Yes
Features:
Digital passive infrared (PIR) detection
Compact size and matte finish
Five contractor friendly mounting methods
Mounting stem attachment with integrated hole saw
Convenient test mode and adjustable time delays
About SensorWorx:
SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.
SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
