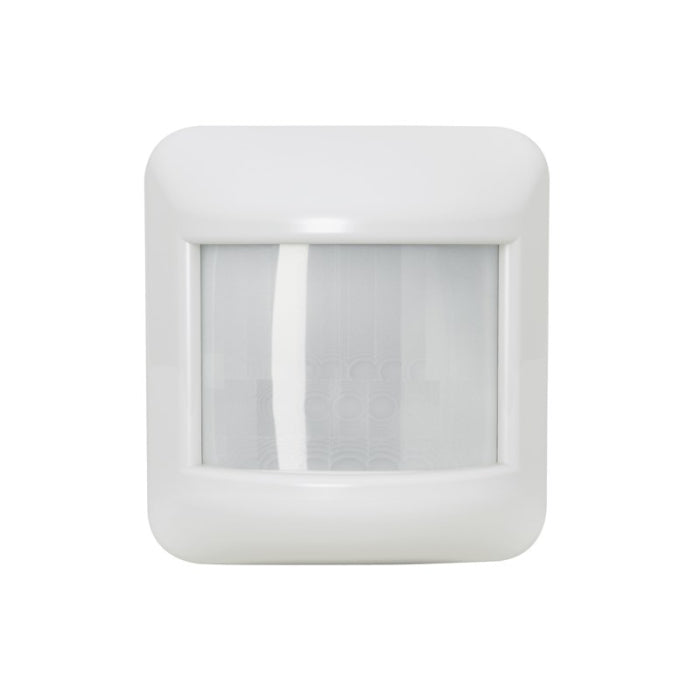

SensorWorx SWX-401-B

SWX-401-B Product Description

SensorWorx wall mount occupancy sensors enable mounting to a wall, corner, junction box, or conduit. This flexibility reduces contractor installation time and provides a secure and clean finished appearance. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Passive infrared detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified the sensor signals a connected power/relay pack to switch on the connected lighting. A single sensor may provide sufficient coverage in many spaces, however, multiple low voltage sensors can be easily wired together to provide improved coverage for large or irregular shaped spaces.

Wide View (120°) Coverage Pattern

Battery powered operation: this wireless sensor can be linked to one or more wireless load controllers (such as the SWX-851 wireless wall switch, or a SWX-950 series wireless power pack). Additionally, these sensors can be configured to work in applications with other wireless or wired ceiling, corner, or hallway sensors to provide extended coverage in large or irregularly shaped spaces. With a 10 year battery life design for PIR only models. If the sensor’s battery life reaches 10%, all wirelessly linked load controllers will blink lights on/off/on upon initial occupancy as a replacement warning. Replacement batteries are available at most retailers or home centers where batteries are sold or from. Additionally, when linked to wireless wall switch load controllers (SWX-851) or to wireless power packs (SWX-950 series) and remote wireless wall stations, these sensors can be used to meet ASHRAE 90.1, IECC, and Title 24 energy code requirements that require vacancy operation.

Specifications:

Manufacturer: SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR)
Manufacturer Part Number: SWX-401-B
Input Voltage: Battery Powered
Color: White
Detection Zone: 120 Degrees
Sensor Coverage: 70 Linear Ft
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant
Width: 2.75"
Height: 2.9"

Features:

Battery powered via included lithium battery
Pairs in seconds with wireless controllers
Enabler multiway switching and dimming (3-way, 4-way, etc)
Pairs in seconds with wireless wall switch or power pack controllers
10 year battery life
80' range line of sight without obstructions / 40' range line of sight with obstructions
All wireless data is encrypted for extra security
