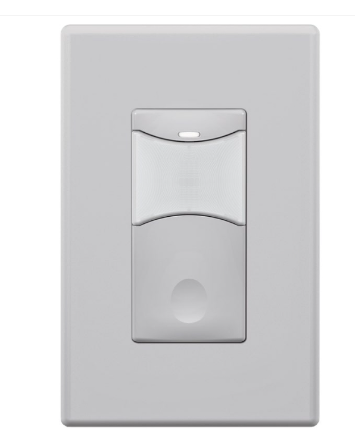

SensorWorx SWX-123-1-GY

SWX-123-1-GY Product Description

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple and cost effective lighting control solution for many applications. Just like its line voltage counterpart, the low voltage SensorWorx wall switch sensor is designed with contractors in mind. Less than 1” deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowded wall boxes. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.

Dual tech (PIR + ultrasonic) detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. These units are also equipped with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited.

Manual On / Automatic Off operation: lights can also be switched off manually. This mode provides increased energy savings but requires the user to initially turn on the lights.

Features:

Physical Features:
Enclosure is 25-40% shallower than other sensors (less than 1” depth into wallbox)
Unique bat-wing shaped lens provides enhanced peripheral detection
Self-grounding mounting strap
Modern look and intuitive easy-tap button
Rugged vandal resistant lens
Settings are adjustable without removing cover plate

Operational Features:
Low-voltage 12-24V operation
Wall-to-wall passive infrared small motion detection
Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft²
Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft²
100% passive detection methods – no interference potential from external devices
Configurable time delays and operating modes
Blue locator LED when lights are off
Optional wiring connections for multi-way or multi-sensor applications

Specifications:

Manufacturer:SensorWorx
Occupancy Sensor Type:Passive Infrared (PIR), Ultrasonic, Dual Tech (PIR + Ultrasonic), Manual On, Stand Alone Sensor
Switch Type:Button
Manufacturer Part Number:SWX-123-1-GY
Input Voltage:12V, 12-24V, 24V
Color:Gray
Detection Zone:180 Degrees
Sensor Coverage:2,025 Sq Ft
Min Operating Temp:32 Degrees F
Special Features:B.A.A. Compliant

About SensorWorx:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
