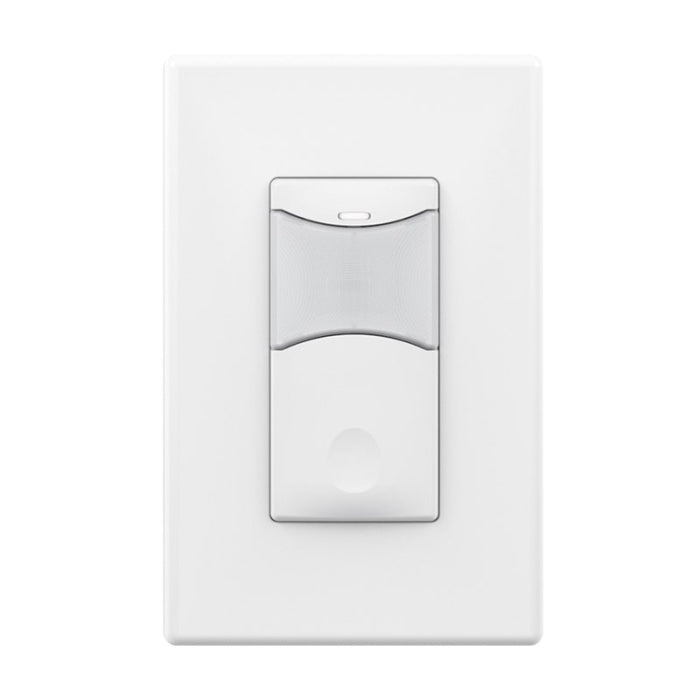

SensorWorx SWX-101-1-WH

SWX-101-1-WH Product Description

SensorWorx wireless wall switch load controller links to remote wireless occupancy sensors, photocells, and switches without low voltage wiring in order to provide automatic lighting control. Designed with contractors in mind, the unit is significantly shallower than typical wall controllers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection and never requires a minimum load. This switch also matches the SensorWorx family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.

Specifications:

Manufacturer: SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR), Auto On, Stand Alone Sensor
Switch Type: Button
Manufacturer Part Number: SWX-101-1-WH
Input Voltage: 12V, 12-24V, 24V
Color: White
Detection Zone: 180 Degrees
Sensor Coverage: 2,025 Sq Ft
Min Operating Temp: 32 Degrees F

Dimensions
Width: 1.68"
Height: 2.74

Features:

Enclosure is 25-40% shallower than other sensors (less than 1” depth into wallbox)
Unique bat-wing shaped lens provides enhanced peripheral detection
Self-grounding mounting strap
Modern look and intuitive easy-tap button
Rugged vandal resistant lens
Settings are adjustable without removing cover plate
Low-voltage 12-24V operation
Wall-to-wall passive infrared small motion detection
Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft²
Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft²
100% passive detection methods – no interference potential from external devices
Configurable time delays and operating modes
Blue locator LED when lights are off
Optional wiring connections for multi-way or multi-sensor applications

About SensorWorx:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
