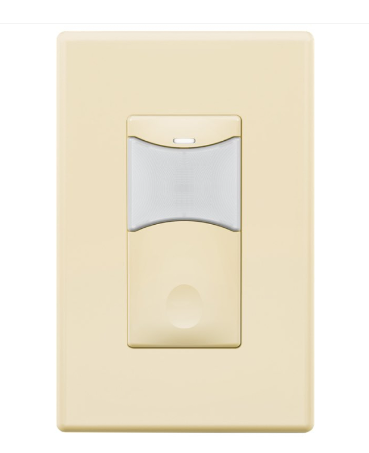

SensorWorx SWX-101-1-MS-LA

SWX-101-1-MS-LA Product Description

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple and cost effective lighting control solution for many applications. Just like its line voltage counterpart, the low voltage SensorWorx dimming wall switch sensor is designed with contractors in mind. Less than 1” deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowded wall boxes. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.

Passive infrared detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting.

Automatic On and Automatic Off operation: If lights are switched off manually, the Automatic On functionality is temporarily disabled to allow the occupant a few seconds to leave the room before returning to Automatic On operation. However, if the person remains in the space, the unit will stay in a manual on state until the switch is pressed again.

Features:

Physical Features:
Enclosure is 25-40% shallower than other sensors (less than 1” depth into wallbox)
Unique bat-wing shaped lens provides enhanced peripheral detection
Self-grounding mounting strap
Modern look and intuitive easy-tap button
Rugged vandal resistant lens
Settings are adjustable without removing cover plate

Operational Features:
Wall-to-wall passive infrared small motion detection
100% passive detection methods – no interference potential from external devices
Configurable time delays and operating modes
Blue locator LED when lights are off

Specifications:

Manufacturer:SensorWorx
Occupancy Sensor Type:Passive Infrared (PIR), Auto On, Multi-Switch / Sensor
Switch Type:Button
Manufacturer Part Number:SWX-101-1-MS-LA
Input Voltage:12V, 12-24V, 24V
Color:Light Almond
Detection Zone:180 Degrees
Sensor Coverage:2,025 Sq Ft
Min Operating Temp:32 Degrees F
Special Features:B.A.A. Compliant

About SensorWorx:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
