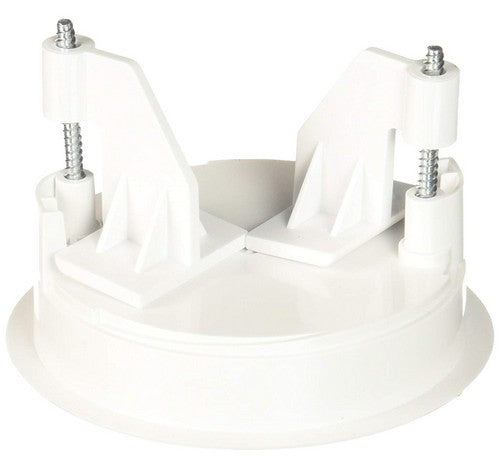

Recess-mounting Bracket For Radio Powr Savr Ceiling Sensor

Lutron’s ceiling-mounted occupancy/vacancy sensors are wireless, battery-powered passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming and switching devices. These sensors detect the heat from people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings along with ease of installation.

FEATURES:

Wireless occupancy sensor has 3 settings available: Auto-On/Auto-Off, Auto-On Low-Light/Auto-Off, and Manual-On/Auto-Off
Auto-On Low-Light feature will only turn lights on automatically if there is less than approximately 1 fc (10 lux) of ambient light
Vacancy model available to meet CA Title 24 requirements
10-year battery life design
Passive infrared motion detection with exclusive Lutron XCTTM Technology for fine motion detection
360˚ coverage ranges from 324 sq ft (98 m() to 676 sq ft (206 m() (depending on mounting height)
Multiple ceiling-mount methods available for different ceiling materials
RoHS compliant
Simple and intuitive adjustments available for Timeout, Auto-On, and Activity settings
Front accessible test buttons make setup easy
Lens illuminates during test mode to verify ideal locations
Multiple sensors can be added for extended coverage—refer to product specification submittal of receiving device to determine system limits
Supports advanced occupancy features, such as dependent occupancy groups and customizable occupied/unoccupied presets in some systems
