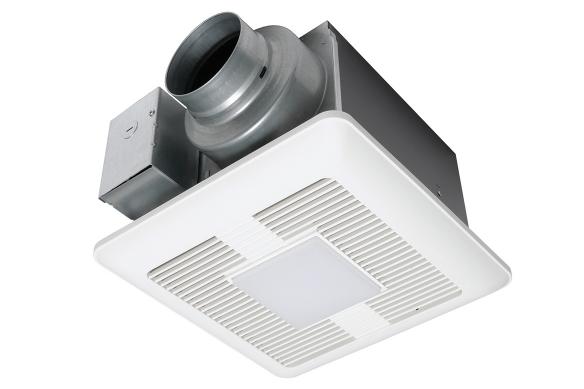

Panasonic WhisperCeiling DC - ECM Motor with Pick-A Flow Fan with Led Light 50-80-110 CFM FV-1115VQL1

WhisperCeiling® DC™ Precision Spot Ventilation Fan/ Light with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

KEY FEATURES:

Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (110, 130, 150 CFM models)
Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
Elegant grille design compliments the aesthetics of any bathroom

SPECIFICATIONS:

Advanced Features Single Speed
Air Volume (CFM) 150, 144, 130, 131, 110, 110
Blower Wheel Type Sirocco
California Title 24 Compliant Yes
Color Rendering Index 90
Color Temperature (Kelvin) 3,000
Current (Amps) 0.21, 0.30, 0.17, 0.27, 0.13, 0.22
Duct Diameter 6"
Energy Efficiency (CFM/Watt) 11.7, 7.5, 12.8, 7.8, 14.5, 8.7
Grille Size (in sq.) 13"
Gross Weight (lbs) 11.9
Lamp Watts 10.0
Lumens (lm) 700
Lumens Per Watt (LPW) 70
MAX. Current (Amps) 0.30
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Night Light 0.2
Noise (Sones) 0.5, 0.8, <0.3, 0.7, <0.3, 0.5
Power Consumption (Watts) 13.0, 19.3, 10.3, 17.0, 7.7, 12.8
Power Rating (V/Hz) 120/60
Product Family Name WhisperCeiling DC
Rated Life (hours) 50,000
Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
Thermal Fuse Protection Yes
Type of Lamp Socket LED Chip
Type of Motor Bearing Ball
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes
