Panasonic

Panasonic SACG2K-04 SelectCycler System Kit, 4-Inch Damper

Panasonic SACG2K-04 SelectCycler System Kit, 4-Inch Damper

Regular price $540.99
Regular price Sale price $540.99
Sale Sold out
Shipping calculated at checkout.

Available: In stock

SKU : SACG2K-04
BRAND : Panasonic
Category : Electrical
Add to Quote
View full details

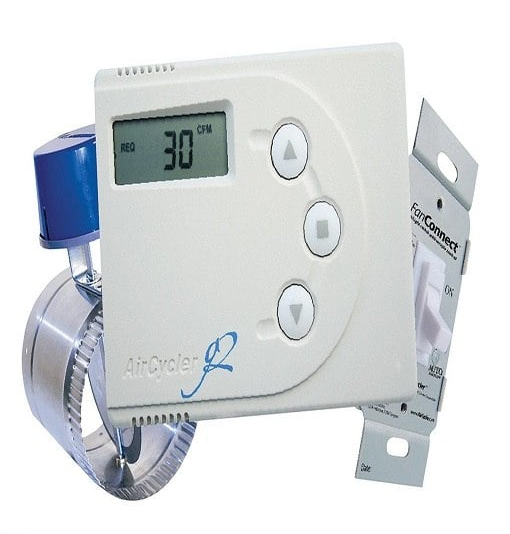

The Panasonic SACG2K-04 is the SelectCycler® whole-house ventilation system kit with the 4-inch motorized supply damper. Official submittal IAQ26127ST R6 describes the kit as including a programmable wall-mount controller, a FanConnect™ bathroom fan/light wall switch, and either a 4-inch, 6-inch, or 8-inch supply damper. The system is designed to work with Panasonic Whisper Series ventilation fans in Hybrid or Balanced mode to meet ASHRAE 62.2. All components are evaluated by Underwriters Laboratories to UL and cUL safety standards. Official warranty coverage is 1 year from the original purchase date.

Verified kit specifications (IAQ26127ST R6)

  • Programmable wall-mounted controller: calculates supply-duct and exhaust-fan run cycles; 24 VAC (up to 30 VAC max); 0.07 A current draw; LCD display
  • Motorized supply damper: stainless steel, power open/close; this kit is the 4-inch duct size; 24 VAC (up to 30 VAC max); 0.07 A idle and 0.125 A during the 15-second damper transit; can be installed in any position
  • FanConnect™ wall switch: 120 VAC ±10%; fan 150 watts @ 120 VAC; light 450 watts @ 120 VAC; compatible with single- or multi-speed fans set to a single speed

Optional accessories sold separately on the official submittal include a range-hood pressure sensor (SACRR) and hot/cold temperature sensors (SACTG-H01 / SACTG-C02). This listing does not include those accessories.

Official specification documents:

Official product page: Panasonic SelectCycler Whole-House Ventilation Solution
