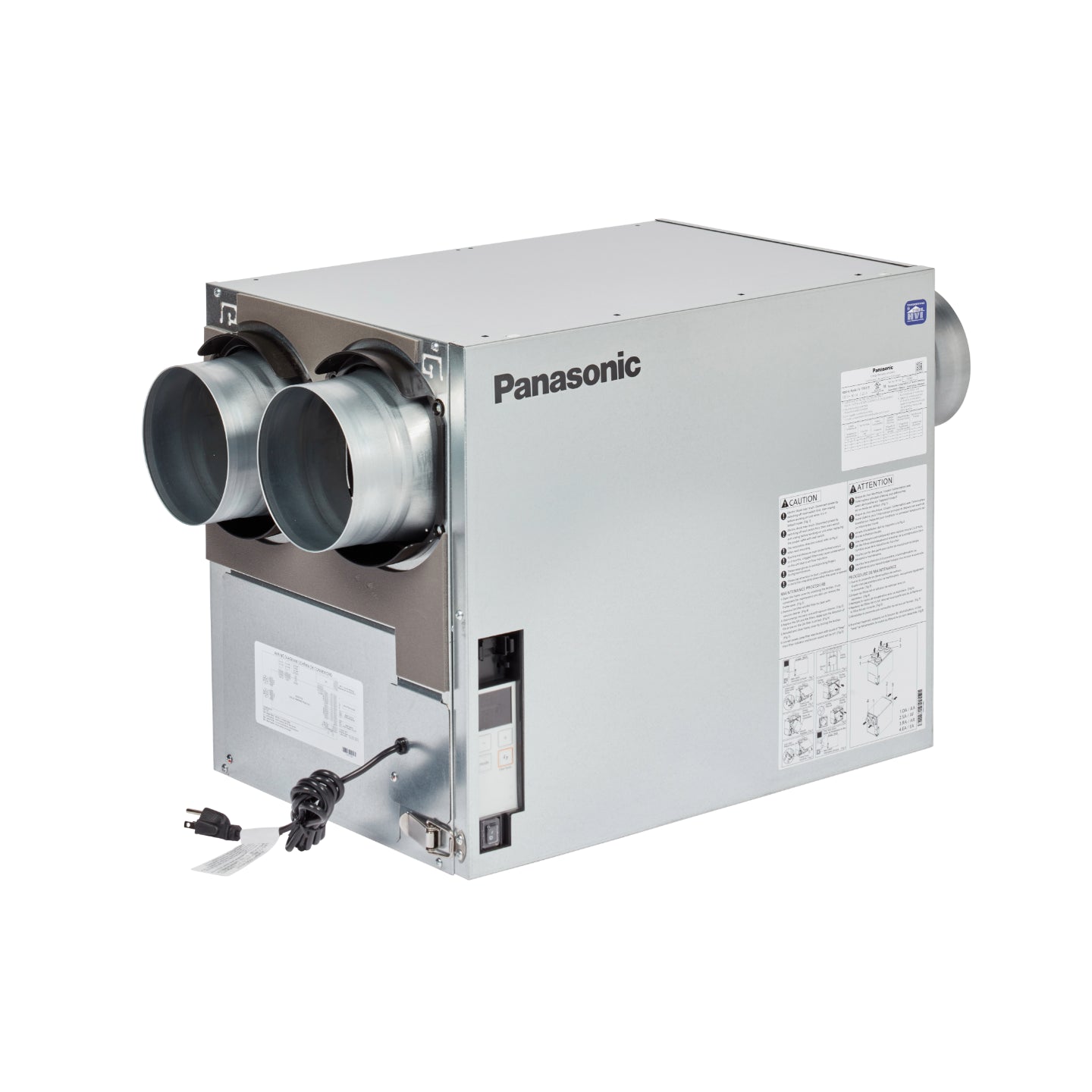

Panasonic FV-13VEC1S

FV-13VEC1S Product Description

Bring advanced indoor air quality to your projects with the industry’s most versatile energy recovery ventilator. The BalancedHome™ series offers unmatched flexibility with 8 models and 4 max adjustable CFM ranges, allowing you to choose the perfect solution for any home. Our unique design accommodates both top and side port installations, making it easier to integrate into your plans while meeting stringent code requirements.

Specifications:

Brand: Panasonic
Part Number: FV-13VEC1S
UPC: 885170438491
Power Rating: 120V/60Hz, 3.1 Amps
CFM Range (Supply/Exhaust): 30–130 CFM (adjustable); Boost Capacity up to 130 CFM
Static Pressure: 0.4" w.g. (tested under CSA-C439)
Heating Efficiency:
Sensible Recovery: ≥81% at 36 CFM, 32°F
Adjusted Sensible Recovery: ≥85% at 36 CFM, 32°F
Cooling Efficiency:
Total Recovery: ≥71% at 36 CFM, 95°F
Motors: Two (2) DC ECM brushless motors (continuous run, thermal fuse-protected)
Duct Diameter: ≥6"
Mounting: Ceiling or wall mount with included brackets

Filters:

Included: MERV 13 [FV-FL1316VE1]
Replacements: MERV 8 [FV-FL0319VE1], washable MERV 5 [FV-FL0616VE1]
Filter Alerts: Visual/audible indicators after 90 days runtime

Certifications: ASHRAE 62.2, ENERGY STAR™, LEED, Indoor airPLUS, CEC, Washington State Energy Code
Warranty: ECM Motors: 6 years | All Other Parts: 3 years
Operating Temperature: Freezing conditions supported via recirculation/exhaust modes
Power Consumption: ≤109W at 0.2" w.g., 125 CFM

Features:

Panasonic Hygroscopic Membrane Core: Transfers moisture/energy between indoor/outdoor air streams.
Frost Prevention Mode: Automatically prevents core freezing in low temperatures.
ASHRAE 62.2 Timing Function: Ensures code-compliant ventilation schedules.
Fault Indication Device (FID): Alerts for maintenance or installation issues (CEC-certified).
Adjustable CFM & Boost: User-selectable airflow with temporary boost capacity.
LED Display: Speed selectors for supply/exhaust airflow.
Durable Housing: Galvanized steel construction with corrosion resistance.
Easy Installation: Pre-drilled brackets, horizontal duct adapters included.
Low Maintenance: Washable/replaceable filters with automated reminders.
Energy Recovery: Reduces HVAC load by tempering incoming air.
Compliance Ready: Meets Ontario Building Code, California Title 24, and more

Included Accessories:

Ceiling chain mounts and wall brackets
Horizontal duct adapters for supply/return air
MERV 13 filter (pre-installed)
